In the rapidly evolving landscape of modern enterprise networking, maintaining an organized and scalable infrastructure is no longer a luxury but a fundamental necessity. As businesses expand their digital footprint, the sheer volume of copper and fiber optic cabling can quickly transform from a strategic asset into a chaotic management nightmare. This often leads to downtime, troubleshooting delays, and increased maintenance costs. Understanding the core components of structured cabling is the first step toward building a resilient network that can support high-speed data transmission and future technological upgrades.
A patch panel is a passive networking hardware device that acts as a centralized static switchboard, featuring multiple ports to connect and manage incoming and outgoing local area network (LAN) lines or other electrical and electronic systems. It serves as the critical intersection where all horizontal cabling terminates, providing a dedicated space for technicians to organize, label, and reroute connections using short patch cords without disturbing the permanent internal wiring of the building.
In this comprehensive guide, we will delve deep into the technical intricacies of patch panels, exploring their functional role in data centers and office environments. We will analyze how they differ from other networking hardware, the specific advantages they offer for business scalability, and the various types available in the market today. Whether you are upgrading an existing server room or designing a new facility from scratch, this article provides the insights needed to optimize your cabling architecture.
Section | Summary |
What Is A Patch Panel? | A detailed definition of the patch panel as a hardware hub that organizes network cables. |
What Are Patch Panels Used For? | Exploring the functional applications in cable management and network flexibility. |
How Do Patch Panels Work? | An explanation of the physical connection process between the front and back of the panel. |
What Are The Benefits Of Installing Patch Panels? | Analysis of organizational efficiency, reduced maintenance time, and system longevity. |
What Are The Types Of Patch Panels? | A comparison of Cat5e, Cat6, Cat6a, and Fiber Optic patch panel variations. |
Patch Panel FAQs | Addressing common technical queries regarding installation and compatibility. |
A patch panel is essentially a mounted hardware assembly that contains a specific number of ports used to connect and manage incoming and outgoing fiber or copper cables.
From a technical standpoint, a patch panel acts as the "receptionist" of your network's physical layer. In a typical B2B environment, cables are run through walls and ceilings from various workstations and devices back to a central wiring closet or server room. Instead of plugging these long-run cables directly into expensive network switches, they are terminated into the back of a patch panel. This creates a permanent, stable connection that rarely needs to be touched, protecting the integrity of the long-distance cabling infrastructure.

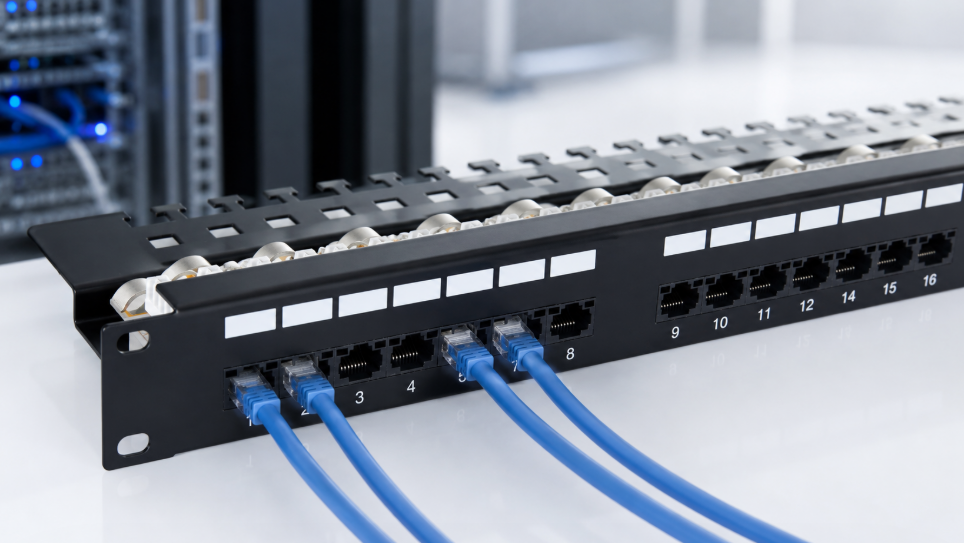

The front of the panel provides a series of ports—often in configurations of 12, 24, or 48—where short "patch cords" are used to link the panel to a network switch or router. This modular approach means that if a user moves to a different office, a technician only needs to move a small patch cord on the front of the panel rather than re-pulling wires through the building. It is the cornerstone of what professionals call "Structured Cabling."
In the context of modern data infrastructure, choosing high-quality hardware is paramount. For businesses looking to secure their physical connections, investing in a professional Patch Panel ensures that your signal integrity remains high while crosstalk and interference are kept to an absolute minimum.

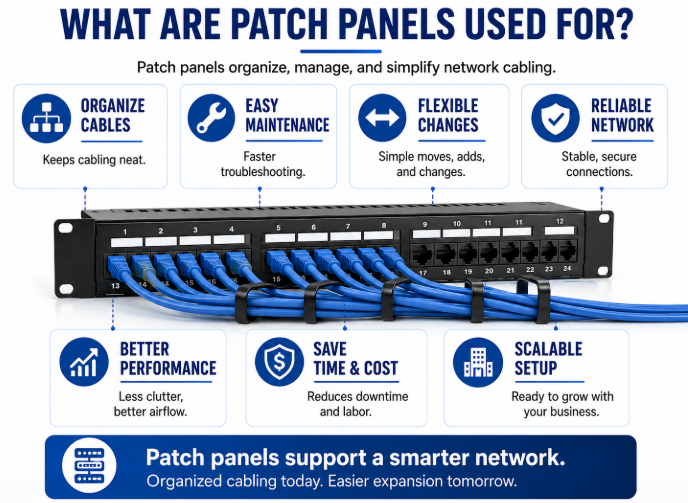

Patch panels are primarily used to provide a centralized, organized, and highly flexible management point for all network cabling within a commercial or industrial facility.
The most critical use of a patch panel is the facilitation of easy moves, adds, and changes (MACs) in a network. Without a patch panel, network cables would have to be connected directly to the switch ports. Switches are active electronic devices with sensitive components; frequent plugging and unplugging can wear out the ports, leading to hardware failure. By using a patch panel, the mechanical wear and tear are shifted to a passive, inexpensive piece of equipment, thereby extending the lifespan of the more costly active networking gear.
Furthermore, patch panels are essential for labeling and identification. In a large-scale B2B operation, identifying which cable leads to which office or security camera among hundreds of identical-looking wires is impossible without a centralized termination point. Patch panels allow for clear alphanumeric labeling, ensuring that network administrators can perform diagnostics or reconfigure segments of the network in minutes rather than hours. This level of organization is crucial for minimizing downtime in mission-critical environments.
Beyond simple connectivity, these devices are used to bridge the gap between different types of equipment. For example, you might use a patch panel to connect VoIP phones, computers, and wireless access points all into the same rack system. When comparing a Patch Panel vs Switch, it becomes clear that while the switch handles the data intelligence, the patch panel provides the physical foundation that makes that intelligence accessible and manageable.
Patch panels work by acting as a bridge between the permanent "fixed" cables (horizontal cabling) and the "active" networking equipment like switches and routers.
The physical mechanism of a patch panel involves two distinct sides. On the back side of the panel, the individual copper wires inside a network cable are "punched down" into specialized slots known as IDC (Insulation Displacement Contact) blocks. This creates a permanent electrical connection. In fiber optic versions, the back side involves splicing or connecting the bulk fiber cables to the internal adapters. Once these are installed, they are rarely moved, creating a solid and reliable "backbone" for the building’s communication system.
On the front side of the patch panel, the ports are usually standard RJ45 jacks for copper or various connectors (LC, SC, ST) for fiber. When a specific connection needs to be activated, a technician uses a short patch cord to jump from the port on the patch panel to a corresponding port on a network switch. This "patching" process completes the circuit, allowing data to flow from the end-point device (like a computer) through the wall cabling, into the patch panel, across the patch cord, and into the switch where the data is processed.
This two-step connection process offers a layer of abstraction that is vital for network health. By isolating the permanent wiring from the frequent changes at the switch level, the system becomes much more modular. If you need to upgrade your switch from 1Gbps to 10Gbps, you simply unplug the patch cords from the old switch and plug them into the new one; the complex wiring inside the walls remains untouched and functional.
The primary benefits of installing patch panels include significantly improved cable organization, reduced maintenance costs, and enhanced network scalability for growing businesses.
In a professional server room, "cable spaghetti"—a tangled mess of wires—is a major liability. Patch panels allow for neat, bundled cable management. By using horizontal and vertical cable managers alongside the panels, you can ensure that every wire has a specific path. This not only looks professional but also prevents accidental disconnections and improves airflow within the server rack, which is essential for cooling sensitive equipment.
As your business grows, you will inevitably need to add more users or devices. A patch panel allows you to pre-wire entire floors or sections of a building even if they aren't currently in use. When a new employee arrives, activating their desk connection is as simple as adding a single patch cord in the server room. This proactive approach to structured cabling solutions prevents the need for disruptive construction work every time the team expands.
When a network drop goes dead, a technician can quickly isolate the problem. By testing the link between the wall outlet and the patch panel, they can determine if the issue lies within the permanent infrastructure or the patch cord. Because everything is labeled and organized, the time to resolution (MTTR) is drastically reduced, saving the company money and maintaining productivity.
Feature | Patch Panel Infrastructure | Direct Connection (No Panel) |
Maintenance | Easy to swap and test cords | Risky; can damage switch ports |
Organization | High (Labeled and Bundled) | Low (Tangled/Cluttered) |
Scalability | High (Modular design) | Low (Requires manual re-pulling) |
Hardware Life | Extends life of active switches | Higher wear on expensive ports |
Patch panels are categorized based on their media type (Copper or Fiber), their performance rating (Cat5e, Cat6, Cat6a), and their port density or mounting style.
These are the most common in standard office environments. They are designed for twisted-pair copper cabling and are divided by their speed capabilities.
Cat5e Patch Panels: Suitable for basic Gigabit Ethernet (1000BASE-T).
Cat6 Patch Panels: Designed for higher performance, supporting 10 Gigabit speeds over shorter distances with better crosstalk protection.
Cat6a Patch Panels: The current gold standard for B2B, supporting full 10Gbps speeds at 100 meters, featuring superior shielding to prevent electromagnetic interference.
In environments where high-speed data backbone or long-distance transmission is required, fiber optic panels are utilized. These can be Single-mode or Multi-mode and usually come with LC, SC, or ST connectors. They are essential for linking different server rooms or connecting a local network to a high-speed ISP gateway. Understanding the differences between cabling types is crucial for selecting the right panel for your specific data throughput needs.
Fixed Panels: These come with a set number of ports (e.g., 24 ports) that are already built into the unit. If one port fails, the entire panel might eventually need replacement, though they are very cost-effective.
Modular Keystone Panels: These feature empty slots where you can snap in "Keystone jacks." This allows for a mix of different connection types (e.g., Cat6, Fiber, and Coaxial) all on the same 1U rack space, providing ultimate flexibility for specialized industrial applications.
No, a properly installed patch panel does not slow down your internet or network speed. In fact, because it provides a stable termination point and reduces the risk of cable damage, it helps maintain consistent high-speed performance. However, you must ensure the patch panel rating matches your cable rating (e.g., use a Cat6 panel with Cat6 cables) to avoid creating a bottleneck.
No. This is a common misconception. A patch panel is a passive device; it does not require power and does not "direct" data traffic. It is simply a physical bridge. A switch is an active device that requires power and uses software to manage data packets and route them to the correct destination. You usually need both in a professional network.
While possible for small home setups, B2B installations should be handled by professionals. Terminating 48 or 96 ports requires precision tools (like punch-down tools) and testing equipment to ensure that each "pair" of wires is correctly seated and that there is no signal loss or crosstalk. Professional installation also ensures compliance with building codes and fire safety standards.
Most standard rack-mounted panels come in 24-port or 48-port configurations. For a small office, a 24-port panel is usually sufficient. However, it is always recommended to "over-provision" by about 20%. If you have 20 network drops, install a 24-port panel to allow for future growth without having to install a completely new unit later.
