What is the difference between a Cat5e and Cat6 patch panel?

The primary difference between a Cat5e and Cat6 patch panel lies in their performance specifications: a Cat5e patch panel is designed for data speeds up to 1 Gbps with a bandwidth of 100 MHz, while a Cat6 patch panel is engineered to support higher data rates of up to 10 Gbps over shorter distances with a significantly higher bandwidth of 250 MHz and stricter crosstalk mitigation.

Choosing the correct hardware is not merely about matching labels; it involves understanding electrical interference, signal integrity, and the long-term scalability of your facility. This comprehensive guide will explore the technical architecture, physical differences, and strategic advantages of both Cat5e and Cat6 solutions to help you make an informed procurement decision for your next networking project.

Table of Contents

Understanding the Patch Panel Role

A patch panel serves as a static switchboard that facilitates the connection and management of incoming and outgoing local area network cables in a centralized location.

In any professional networking setup, the patch panel acts as the interface between the horizontal cabling (the wires running through walls to workstations) and the active networking equipment, such as switches or routers. Without this component, technicians would have to plug long runs of solid-core cable directly into switches, which risks damaging expensive hardware ports due to the rigidity and weight of the cables. By terminating these runs into a fixed panel, you create a robust environment where changes can be made simply by swapping short "patch" cords on the front of the unit.

Properly organized rack systems utilize a high-quality patch panel to ensure that the network remains manageable. As cables converge in a server room, the panel provides a clear labeling system, making troubleshooting significantly faster. If a specific port at a desk loses connectivity, a technician can quickly identify the corresponding port on the panel rather than hunting through a "spaghetti" mess of unorganized wires. This organizational efficiency is vital for reducing downtime in enterprise settings.

Furthermore, the hardware provides physical protection for the terminations. The rear of the panel features Insulation Displacement Connectors (IDC) where the copper pairs are "punched down." Once secured, these connections are rarely disturbed, ensuring that the signal remains consistent over many years. Whether you are using Cat5e or Cat6, the fundamental role of providing a clean, modular, and protected connection point remains the same, though the internal engineering varies to meet specific speed requirements.

Technical Specifications and Bandwidth

The defining technical distinction between these categories is that Cat6 hardware is rated for a 250 MHz frequency, offering more than double the bandwidth of the 100 MHz rated Cat5e hardware.

When we talk about "Category" ratings, we are primarily discussing the electrical performance and the ability of the copper to carry high-frequency signals without excessive degradation. A Cat5e (Category 5 Enhanced) system was the standard for many years, supporting Gigabit Ethernet (1000BASE-T). It operates at 100 MHz, which is sufficient for standard office tasks, web browsing, and voice-over-IP (VoIP) applications. However, as data packets become larger and more frequent, the "noise" or interference on these lines can lead to packet loss.

Cat6 hardware is engineered to much tighter tolerances. The increased bandwidth of 250 MHz allows for more data to be transmitted simultaneously with less error. While Cat5e is capped at 1 Gbps, Cat6 can support 10 Gigabit Ethernet (10GBASE-T) over distances up to 37 or 55 meters, depending on the crosstalk environment. This makes Cat6 panels the preferred choice for data centers or backbone connections where high-speed throughput is non-negotiable.

Physical Construction and Internal Design

Cat6 patch panels feature advanced internal circuitry and tighter spacing requirements to minimize Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT) compared to Cat5e versions.

Physically, the front of the panels might look identical, often featuring 24 or 48 RJ45 ports. However, the internal Printed Circuit Board (PCB) and the IDC blocks on the back are where the magic happens. In a Cat6 environment, maintaining the twist of the wire pairs as close to the termination point as possible is crucial. Cat6 panels are designed with internal compensation to cancel out the noise generated when wires are untwisted for termination. If you look closely at the rear of a high-quality Cat6 unit, you will often see more robust housing for the wire pairs.

Crosstalk is the unwanted transfer of signals between communication channels. In high-speed networking, this is the enemy of performance. Cat6 standards require much stricter mitigation of this interference. Some Cat6 panels even include physical dividers or specific shielding to ensure that the signal from one port does not "leak" into another. This is particularly important when several high-speed cables are bundled together behind the rack, a phenomenon known as Alien Crosstalk.

Understanding the internal architecture helps explain why you cannot simply use a Cat5e panel for a Cat6 network and expect Cat6 speeds. The internal components of a Cat5e panel are simply not rated to handle the higher frequencies; they would act as a bottleneck, causing the signal to reflect or dissipate. Therefore, investing in a dedicated patch panel designed for the specific cable category is essential for maintaining the integrity of the entire link.

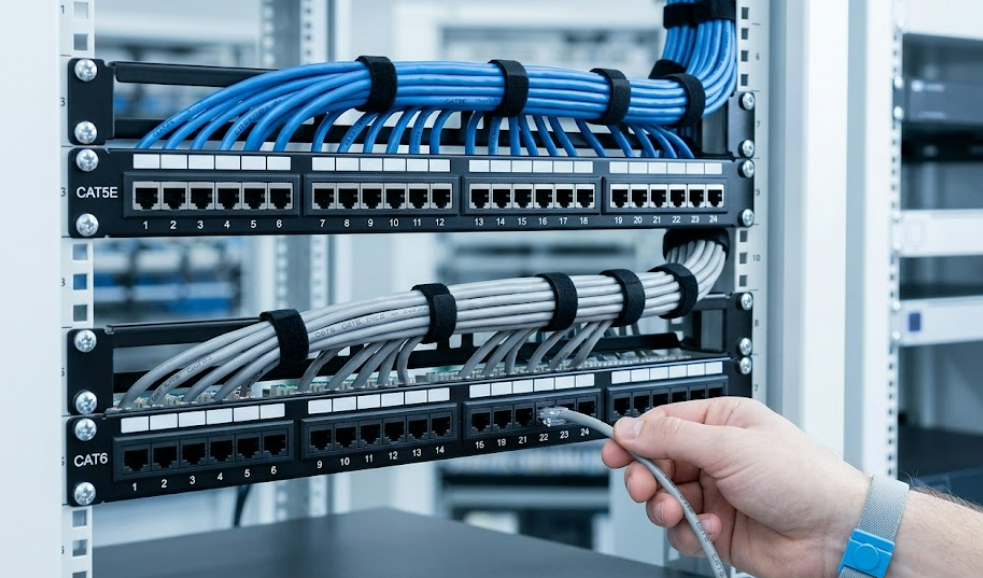

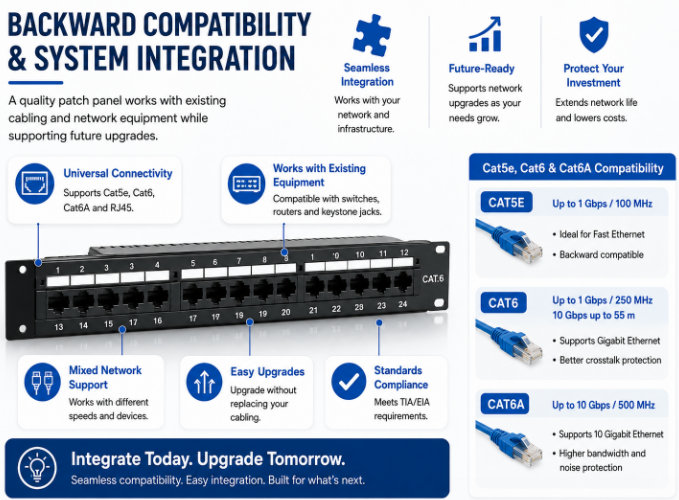

Backward Compatibility and System Integration

Cat6 patch panels are fully backward compatible with Cat5e and Cat5 cabling, allowing them to function seamlessly in legacy environments while providing a path for future upgrades.

One of the most common questions in network design is whether different categories of hardware can be mixed. The answer is yes, but with a significant caveat: the entire channel will only perform at the speed of the lowest-rated component. If you use a Cat6 panel with Cat5e cabling and Cat5e patch cords, the network will operate at Cat5e speeds. However, using a Cat6 panel now provides a "headroom" for the future. If you eventually replace the horizontal cabling with Cat6, you won't need to replace the panels.

This backward compatibility is made possible by the standardized RJ45 interface. The physical dimensions of the plug and jack have remained the same, ensuring that any standard Ethernet cable can physically click into any standard panel. This allows for a staggered upgrade approach in existing facilities. For instance, a company might upgrade its central rack with Cat6 panels while keeping existing Cat5e wall jacks and cabling to save on immediate labor costs.

When integrating these components, it is also important to consider the role of the switch. Understanding the Patch Panel vs. Switch relationship is key; the panel provides the physical termination, while the switch provides the intelligent routing. Using a Cat6 panel ensures that the physical path between the workstation and the switch is as clean and fast as possible, allowing the switch to operate at its maximum rated capacity without being hindered by electrical interference at the connection point.

Cost-Benefit Analysis for Enterprise Use

While Cat6 patch panels generally carry a higher price tag than Cat5e models, the marginal increase in cost is typically outweighed by the significantly higher data capacity and longer lifecycle of the hardware.

From a procurement perspective, the cost difference between Cat5e and Cat6 hardware has narrowed significantly over the last decade. While Cat5e remains the budget-friendly choice for simple residential installations or basic retail environments, enterprises usually find that the labor cost of installation is the most expensive variable. Since the labor required to punch down a Cat5e panel is virtually identical to that of a Cat6 panel, it often makes more financial sense to install the better-performing hardware from the start.

The benefits of opting for Cat6 include:

1. Increased Productivity: Higher bandwidth reduces latency for large file transfers and database access.

2. Reduced Replacement Cycles: Cat6 hardware will remain relevant for 10-15 years, whereas Cat5e is already reaching its technical limits.

3. Support for PoE+: Cat6 cables and panels are generally better at handling the heat dissipation required for high-power Power over Ethernet (PoE) applications like security cameras and Wi-Fi 6 access points.

When conducting a cost-benefit analysis, consider the "cost per megabit." While the initial hardware might be 20% more expensive, the throughput capability is 1000% higher (1 Gbps vs 10 Gbps). For any business that relies on cloud computing, video conferencing, or large-scale data analytics, the ROI on Cat6 hardware is realized almost immediately through improved network stability and speed.

Future-Proofing Your Network Infrastructure

Choosing a Cat6 patch panel is a strategic investment in future-proofing, ensuring that a building's physical layer can support upcoming generations of networking hardware without requiring a full rip-and-replace.

We are currently living in an era of rapid technological expansion. The transition from Wi-Fi 5 to Wi-Fi 6 and Wi-Fi 7 requires backhaul speeds that exceed 1 Gbps. If your infrastructure is built on Cat5e panels, your state-of-the-art wireless access points will be throttled by the cabling system. By installing Cat6 or even Cat6a panels today, you ensure that your network can grow as your hardware evolves.

Future-proofing also involves considering the types of media being shared across the network. 4K and 8K video streaming, Virtual Reality (VR) training modules, and real-time medical imaging all require the low-latency and high-bandwidth capabilities that Cat6 provides. A network is only as strong as its weakest link; if your Patch Panel vs. Switch setup includes a Cat5e bottleneck, you won't be able to utilize the full power of modern high-speed switches.

Strategic Advantages of Cat6 Future-Proofing:

• Scalability: Easily upgrade to 10G speeds as your business grows.

• Compliance: Meet the latest building and technology standards for commercial real estate.

• Resale Value: Buildings with modern, high-category structured cabling are more attractive to tech-savvy tenants.

Installation Best Practices and Maintenance

Proper installation of a patch panel requires strict adherence to T568A or T568B wiring standards and careful cable management to prevent physical stress on the terminations.

The performance difference between Cat5e and Cat6 can be completely nullified by poor installation. Because Cat6 is more sensitive to interference, the "twist" of the copper pairs must be maintained to within half an inch of the IDC termination point. If a technician strips too much of the jacket or untwists the wires too far, the Cat6 panel will essentially perform like a Cat5e panel (or worse). Using the correct punch-down tool and ensuring each wire is seated firmly is the first step toward a high-performance network.

Cable management is the second pillar of a successful installation. Cables should never be bent at sharp angles (maintain a proper bend radius) and should not be cinched too tightly with plastic zip ties, which can deform the internal geometry of the cable. Instead, use hook-and-loop (Velcro) straps to bundle cables behind the panel. This prevents "kinks" that cause signal reflection and makes it much easier to add or remove cables later.

Maintenance involves regular inspections and labeling. A well-maintained rack should have clear, printed labels on both the front and back of the panel. Periodically checking for loose connections or dust buildup in the RJ45 ports can prevent intermittent connectivity issues. By following these professional standards, you ensure that your investment in high-quality hardware translates into a decade or more of flawless network performance.

Summary of Best Practices

1. Consistency: Always use the same wiring standard (T568B is most common in the US) throughout the entire facility.

2. Strain Relief: Use the cable management bars often included with panels to support the weight of the incoming cable bundles.

3. Testing: Use a Fluke or similar certifier to verify that each port meets the required Category 6 or 5e specifications after installation.
