Have you ever wondered why your network slows down at the worst moment?Often, the answer is as simple as the patch cable you use.A patch cable is a short, flexible cord connecting network devices for smooth data transfer.Many confuse a patch cable with an Ethernet cable or use “patch cord” interchangeably.This confusion can lead to the wrong choice and weaker network performance.Understanding patch cables is key to keeping connections stable and fast.
In this post, you’ll learn what a network patch cord is, why it matters,and how to choose the right patch cable for your setup.We’ll clear up myths, explain types, and guide you toward better network reliability.

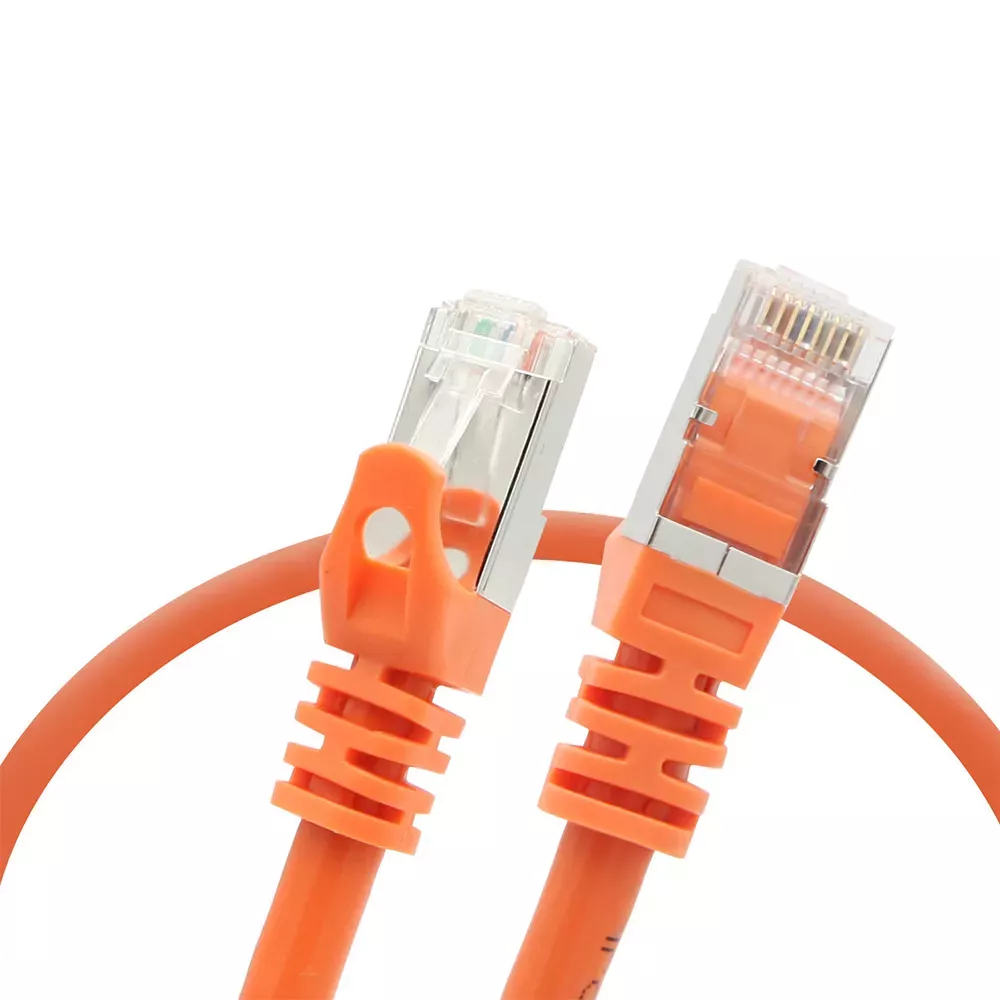

A patch cable is a short, flexible cable used to connect network devices for smooth and reliable data transfer.
It links one device to another for routing signals without major loss.
People often call it a patch cord, patch lead, or network patch cord.
Its main job is simple:connect devices so data flows where it needs to go.
We see a patch cable between a computer and a wall jack,or between a switch and a patch panel.
Linking servers to switches in data centers
Connecting desktop PCs to nearby network ports in offices
Hooking up gaming consoles, smart TVs, or routers at home
Patch cables are everywhere networks live.
They run in server racks, under desks, and behind home entertainment systems.
Their short length and flexibility make them perfect for tight spaces.
| Common Name | Typical Scenario | Notes |
|---|---|---|
| Patch Cable | PC to wall jack | Short, flexible, easy to move |
| Patch Cord | Switch to patch panel | Same as patch cable, just different term |
| Patch Lead | Home router to gaming console | Common in consumer setups |
| Network Patch Cord | Office VoIP phone to network port | Often used in structured cabling |
A patch cable is typically much shorter than an Ethernet cable.
We use it for quick, local connections—think under 6 feet.
An Ethernet cable can run across rooms or even buildings.
Patch cables are more flexible.
You can bend them around tight corners or swap them quickly.
Ethernet cables are stiffer and better for fixed installations.
Usage: Patch cables suit temporary setups or close-range links.
Ethernet cables stay in place for long-term network runs.
Structure differs too.
Patch cables often use stranded wires for flexibility.
Ethernet cables usually use solid wires for durability over distance.
| Feature | Patch Cable | Ethernet Cable |
|---|---|---|
| Length | Short, up to ~6 ft | Long, up to 100 m |
| Flexibility | High, easy to move | Low, for static setups |
| Wire Type | Stranded | Solid |
| Typical Use | Device-to-port connection | Room-to-room or building-to-building |
A crossover cable is wired differently inside.
It swaps the transmit and receive pairs.
This lets two similar devices talk directly without a switch.
Patch cables use straight-through wiring.
They connect different devices like a PC to a switch or router.
Typical use cases:
Crossover cable: linking two computers directly
Patch cable: connecting devices to a network hub or wall jack
Sometimes copper isn’t enough.
A fiber patch cable sends data using light instead of electricity.
It’s perfect for high-speed, long-distance connections.
Choose fiber patch cables when:
You need minimal signal loss over long runs
You want immunity to electromagnetic interference
Pros of fiber patch cables:
Higher bandwidth
Longer transmission distances
No electrical interference
Cons:
More expensive
Requires delicate handling and special tools
| Feature | Copper Patch Cable | Fiber Patch Cable |
|---|---|---|
| Transmission | Electrical signals | Light signals |
| Distance Limit | ~100 m for Ethernet | Several km possible |
| Cost | Lower | Higher |
| Durability | More rugged | Fragile, needs careful handling |
A patch cable may look simple, but inside it’s a mix of engineered parts working together.
Each part plays a role in durability, speed, and signal quality.
The outer jacket protects the patch cable from wear, bending, and environmental damage.
Common materials include:
PVC (Polyvinyl Chloride) – flexible, cost-effective, used in most indoor cables
LSZH (Low Smoke Zero Halogen) – safer in fires, produces less toxic smoke
Polyethylene – tough, weather-resistant for outdoor patch cable use
The conductor is where the signal travels.
Two main options appear in patch cables:
Stranded copper – more flexible, ideal for frequent movement or short runs
CCA (Copper-Clad Aluminum) – cheaper, lighter, but slightly less conductive than pure copper
| Conductor Type | Flexibility | Conductivity | Cost | Common Use |
|---|---|---|---|---|
| Stranded Copper | High | Excellent | Higher | Patch panels, short runs |
| CCA | Medium | Good | Lower | Budget installations |
The connectors on a patch cable define how it links to devices.
Popular connector types include:
RJ45 – standard for Ethernet patch cables
LC (Lucent Connector) – compact fiber optic connector
SC (Subscriber Connector) – push-pull design for fiber optics
ST (Straight Tip) – bayonet-style, common in older fiber networks
Shielding blocks interference and preserves signal quality.
Patch cables may come in:
UTP (Unshielded Twisted Pair) – no shielding, more flexible, lower cost
STP (Shielded Twisted Pair) – foil or braid shielding to reduce EMI
S/FTP (Shielded Foiled Twisted Pair) – individual foil shielding for each pair plus braided outer shield
| Shielding Type | EMI Protection | Flexibility | Typical Use |
|---|---|---|---|
| UTP | Low | High | Office LANs, short indoor links |
| STP | Medium | Medium | Industrial or high-EMI environments |
| S/FTP | High | Lower | Data centers, sensitive equipment |
Patch cables come in many forms, each built for specific network needs.
They differ by medium, shielding, connector type, and even by special function.
Ethernet Patch Cables
These carry electrical signals over twisted copper pairs.
Categories vary by speed and bandwidth:
Cat5e – up to 1 Gbps, common in home networks
Cat6 – up to 10 Gbps over shorter runs, better noise resistance
Cat6a – 10 Gbps over longer runs, thicker and heavier
Cat7 – higher shielding, supports 10+ Gbps
Cat8 – ultra-high speed, for data centers and short links
Fiber Optic Patch Cables
These transmit data as light, perfect for long-distance and high-bandwidth needs.
Single-mode (OS1, OS2): small core (8–10 μm), long-haul connections
Multimode (OM1–OM5): larger core (50–62.5 μm), shorter distances but cheaper
| Medium | Max Speed | Typical Distance | Common Use |
|---|---|---|---|
| Cat6 Copper | 10 Gbps | 55 m | Office networks |
| Cat8 Copper | 40 Gbps | 30 m | Data centers |
| OS2 Fiber | 100 Gbps+ | Tens of km | ISP backbones |
| OM4 Fiber | 100 Gbps | 150 m | Data halls |
Shielding affects how well a patch cable resists interference:
UTP (Unshielded Twisted Pair) – no shielding, light and flexible
STP (Shielded Twisted Pair) – foil or braid shield around pairs
FTP/SFTP (Foiled Twisted Pair / Shielded Foiled Twisted Pair) – foil on each pair plus overall shield
| Shield Type | EMI Protection | Flexibility | Best For |
|---|---|---|---|
| UTP | Low | High | Home and office LANs |
| STP | Medium | Medium | Industrial settings |
| S/FTP | High | Lower | High-density data environments |
A patch cable’s connectors decide where and how it can connect:
RJ45 to RJ45 – standard for Ethernet patch cables
LC to LC – compact connectors for fiber optics
SC to SC – push-pull style, often in telecom rooms
Hybrid connectors – mix types like LC to SC for bridging devices
Some patch cables serve unique purposes:
Pigtails – connector on one end, bare fiber or copper on the other
Crossover patch cables – directly link two similar devices without a switch
Custom-length patch cables – tailored to fit exact distances, reduce clutter
A patch cable is one of the most versatile pieces of network gear you’ll ever use.
It links devices quickly, keeps connections stable, and works in almost every setup.
In a data center, a patch cable is essential for connecting patch panels, switches, and servers.They make it easy to rearrange hardware without rewiring the entire rack.Short lengths help maintain airflow and reduce cable clutter.
In offices, we use a patch cable to connect PCs to wall jacks or directly to switches.
It also powers VoIP phones, giving them both network and voice service in one link.
Stranded copper cables offer the flexibility needed for desks that move often.
At home, a patch cable connects the router to a PC, gaming console, or smart TV.
It delivers faster and more stable performance than Wi-Fi, especially for online gaming or streaming in 4K.
| Device | Why Use a Patch Cable |
|---|---|
| Gaming Console | Lower latency, stable connection |
| Smart TV | Smooth streaming without buffering |
| PC | Reliable for large file transfers |
A patch cable isn’t just for IT.
It also carries signals in AV setups, linking audio mixers, amplifiers, or video switchers.
In production studios, it allows quick re-routing without downtime.
In telecom closets, a patch cable links wall outlets to network switches.
It’s perfect for quickly patching circuits or reassigning ports.
The short, flexible design keeps everything tidy and easy to trace.
Choosing the right patch cable isn’t just about grabbing the first one you see.
It’s about matching the cable to your network’s needs, location, and performance goals.
Length
Measure the distance between devices before you buy.
A patch cable that’s too long creates clutter, too short won’t reach.
Category Rating
Pick the right category for your speed:
Cat5e – up to 1 Gbps, budget-friendly
Cat6 – up to 10 Gbps over short runs
Cat6a – 10 Gbps for longer distances
Cat7 / Cat8 – for high-performance or data center use
Bandwidth Requirements
If you’re streaming 4K, hosting servers, or moving huge files,
get a patch cable that supports higher bandwidth.
Shielding Needs
Choose shielding based on the environment:
UTP – best for low-interference areas like homes
STP / S/FTP – protects against electromagnetic interference in busy networks
Connector Compatibility
Check if it’s RJ45, LC, SC, or another type.
The patch cable must fit your device’s port.
Durability and Flexibility
Stranded copper offers more flexibility for frequent movement.
Solid conductors are better for permanent installations.
| Factor | Why It Matters | Recommendation |
|---|---|---|
| Length | Avoid slack or shortage | Measure before purchase |
| Category | Determines speed & bandwidth | Match to network requirements |
| Shielding | Reduces signal loss from interference | STP in high-EMI environments |
| Connector Type | Must match device port | Verify before ordering |
Weather Resistance and UV Protection
Outdoor patch cables have jackets that resist sunlight, rain, and temperature changes.
Indoor cables lack these protections and may fail outdoors quickly.
Applications for Outdoor Installations
Use outdoor-rated patch cables for:
Connecting buildings in a campus network
Running cables along exterior walls
Any setup where the cable is exposed to sunlight or moisture
A patch cable can only perform well if it’s maintained and tested regularly.
Good care prevents network issues and extends the cable’s lifespan.
Look at the jacket for cuts, cracks, or kinks.
Check connectors for bent pins, loose clips, or corrosion.
If it feels stiff or shows wear, it may be time to replace it.
Use a cable tester to check signal quality and continuity.
A tester can detect wiring faults, high resistance, or poor shielding.
Even a patch cable that looks fine can fail a performance test.
Avoid sharp bends or tight loops—these can damage the conductors.
Hang or coil the patch cable loosely when not in use.
Keep it away from heavy objects that could crush it.
| Handling Tip | Why It Matters |
|---|---|
| Avoid sharp bends | Prevents internal wire breakage |
| Store loosely coiled | Maintains flexibility |
| Keep off dusty floors | Protects connectors from debris |
If you use a fiber optic patch cable, keep the connectors clean.Use lint-free wipes and approved cleaning fluid.Even tiny dust particles can block light and reduce performance.Understanding the right patch cable type is key to strong, reliable connections.Each type serves a unique purpose in networks.Match the cable to your exact application for best results.The wrong patch cable can limit speed and stability.Investing in high-quality patch cables ensures long-term performance.With WebiT, you get durable, tested cables built for lasting network stability.
A: It’s also called a patch cord, patch lead, or network patch cord.
A: Yes, for short-distance connections within a network.
A: Usually under 6 feet for optimal performance, though some run longer.
A: Yes, it supports higher speeds and better noise resistance.
A: Stranded is flexible; solid is better for permanent runs.
A: Yes, if they meet PoE standards.
A: A patch cable offers lower latency and more stability.
A: Look for visible damage or test with a cable tester.
