The modern data center is an intricate web of connectivity, where thousands of miles of fiber optic and copper cabling converge to power the digital infrastructure of global enterprises. In this high-stakes environment, the difference between a high-performing network and a chaotic, downtime-prone mess often comes down to physical layer organization. As bandwidth demands increase and hardware density reaches new heights, the necessity for a centralized, scalable, and manageable cabling interface becomes undeniable for IT professionals and network architects.
A patch panel is a static hardware unit containing multiple ports used to connect and manage incoming and outgoing local area network (LAN) lines or other communication, electronics, and electrical systems. It serves as a central hub where all network cables terminate, allowing for the organized distribution of data signals to switches, routers, or servers without directly plugging long-run cables into expensive active equipment.
Understanding the fundamental role of this component is essential for anyone tasked with designing or maintaining a B2B network infrastructure. While it may appear to be a simple row of jacks, the patch panel is the backbone of structured cabling, providing the flexibility needed for rapid reconfigurations and the protection required for long-term cable integrity. This article will delve into the technical nuances of these devices, exploring their use cases, the massive advantages they offer to enterprise environments, and how they integrate into a comprehensive cable management strategy.
Section | Summary |
What is a Patch Panel? | A detailed definition of patch panels as passive hardware components that facilitate organized cable termination and signal routing. |
What is a Patch Panel Used for? | An exploration of the primary functions of patch panels, focusing on their role in connecting diverse hardware and simplifying network changes. |
Advantages of Patch Panels | A breakdown of the operational benefits, including scalability, reduced downtime, and the protection of active network hardware ports. |
Patch Panel Cable Management System | A technical look at how patch panels work alongside managers and trays to create a clean, efficient, and professional data center environment. |

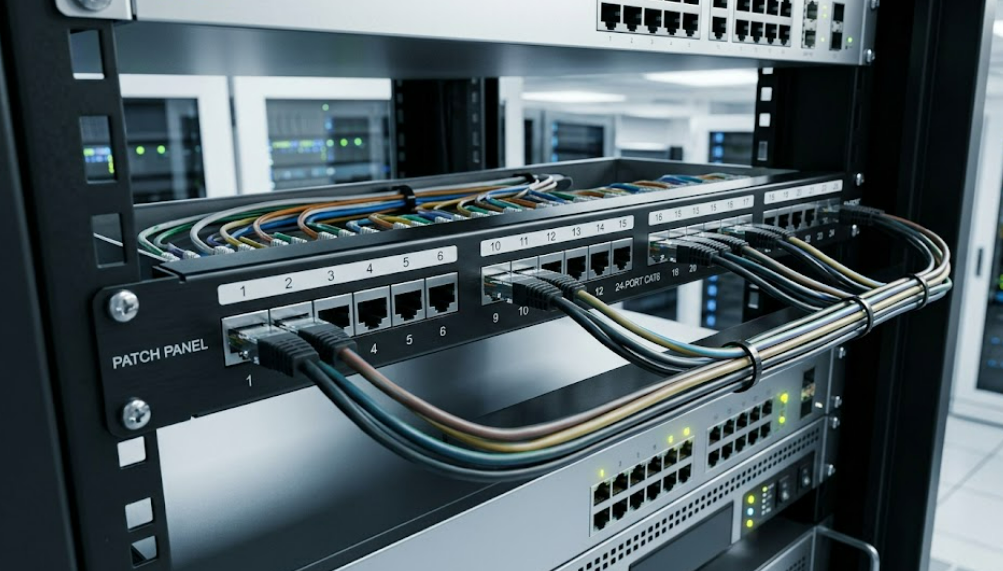

A patch panel is a passive networking device consisting of a panel with multiple ports that serves as a termination point for network cabling within a rack or enclosure.
At its core, a patch panel acts as a centralized directory for every cable running through a building or a data center. Imagine a massive office building where every wall outlet in every room has a cable running back to a single room; the patch panel is where all those hundreds of cables "land." By terminating these permanent runs into the back of a panel, technicians can use short, flexible patch cords on the front of the panel to connect specific ports to active hardware like network switches. This architecture creates a "permanent link" between the wall jack and the panel, ensuring that the bulk of the cabling remains undisturbed during day-to-day operations.

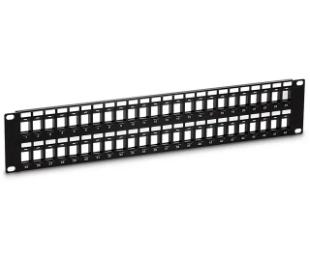

There are various types of panels tailored to specific network needs. For instance, copper panels typically feature RJ45 ports for Cat5e, Cat6, or Cat6a cabling, while fiber optic panels utilize LC, SC, or MTP/MPO connectors to handle high-speed backbone data. Some designs are "fixed," meaning the ports are built-in, while others are "modular" or "unloaded," allowing users to snap in different types of keystone jacks as needed. This modularity is a hallmark of a professional patch panel solution, as it allows for a mix of media types within a single rack unit.
From a technical perspective, the patch panel is the physical manifestation of the TIA/EIA structured cabling standards. By separating the "fixed" cabling (the wires in the walls) from the "patch" cabling (the cords connecting to the switch), the network becomes much more resilient. If a patch cord fails, it is easily replaced in seconds. If a switch needs to be upgraded, the permanent cabling stays exactly where it is, and only the short jumpers are moved. This logic is fundamental to modern IT infrastructure, preventing the dreaded "spaghetti cabling" that plagues unmanaged server rooms.
Type | Medium | Common Application |
Cat6/Cat6a | Copper | Standard office LANs and 10G Ethernet |
Fiber Optic | Glass/Plastic | High-speed backbones and long-distance links |
Shielded (STP) | Copper | Environments with high electromagnetic interference |
High-Density | Mixed | Compact data centers with limited rack space |
The primary use of a patch panel is to provide a neat, organized, and easily accessible interface for re-routing data signals between various pieces of networking equipment.
In a typical enterprise setup, the patch panel serves as the intermediary between the user's workspace and the core network. When a new employee joins a company, their desk's wall jack is already wired to a specific port on the patch panel in the server room. The network administrator simply connects a short cord from that specific panel port to an open port on a network switch. This eliminates the need to run a new cable across the ceiling or through the floor every time a connection changes. This process is often compared to a telephone switchboard from the early 20th century, where operators manually connected callers by moving plugs.
Beyond simple office connectivity, patch panels are critical for managing the purpose of patch panels versus switches, ensuring that each device performs its specific role without interference. While a switch handles the active data routing and packet switching, the panel provides the physical stability. This separation of duties is vital for troubleshooting. If a connection goes dark, a technician can quickly test the port on the panel to determine if the issue lies in the permanent cable run or the active electronics of the switch, significantly narrowing down the scope of repair.
In large-scale data centers, patch panels are used to create "zones." For example, one panel might represent all the servers in Rack A, while another represents the storage array in Rack B. By "patching" between these panels, architects can create logical pathways for data that are easy to trace and label. This is particularly important for compliance and security audits, where knowing exactly where a physical connection leads is a requirement for data integrity and hardware accountability.
Centralized Termination: Consolidating hundreds of individual cables into a single, labeled interface.
Signal Distribution: Moving data from a high-capacity fiber backbone to individual copper-based access points.
Equipment Interconnection: Connecting disparate hardware, such as bridging a firewall to a specific segment of the internal network.
Future-Proofing: Installing high-category panels (like Cat6a) today to support the higher speeds of tomorrow's hardware.
Utilizing a patch panel offers significant benefits in terms of network scalability, reduced maintenance costs, and the preservation of expensive active networking hardware.
One of the most immediate advantages is the protection of the "Switch Port Life." Active hardware, such as high-density 48-port switches, can cost thousands of dollars. The RJ45 or SFP ports on these devices are not designed for frequent plugging and unplugging; they can wear out or become damaged over time. By using a patch panel, the mechanical wear and tear occurs on the panel's inexpensive ports rather than the switch's expensive ones. Replacing a damaged panel or a single keystone jack is a fraction of the cost of repairing or replacing a core enterprise switch.
Furthermore, patch panels drastically reduce downtime during upgrades or reconfigurations. In a structured cabling environment, moving a server or changing a VLAN assignment doesn't require a technician to go behind the rack and hunt through a massive bundle of cables. Because every port is clearly labeled, changes are made on the front of the panel in seconds. This level of organization is essential for B2B operations where every minute of network downtime translates into lost revenue and productivity.
Superior Scalability: As your business grows, adding new connections is a simple matter of terminating new lines into an existing or new panel. You can expand your network capacity without redesigning the entire cabling infrastructure.
Simplified Troubleshooting: Identifying a faulty cable is much faster when you have a structured layout. Technicians can use testers on the panel ports to verify signal integrity without disturbing other active connections.
Space Efficiency: High-density panels allow for a massive number of connections within a small footprint (often 24 to 48 ports per 1U of rack space), maximizing the ROI of expensive data center floor space.
Aesthetic and Airflow Management: Organized cabling isn't just about looks; it's about physics. Massive "cable dams" behind a rack can block exhaust fans, leading to equipment overheating. Panels keep cables tidy, ensuring optimal airflow and cooling efficiency.
Feature | Direct Connection | Patch Panel Connection |
Maintenance | Difficult; requires tracing long cables | Easy; all changes happen at the panel |
Hardware Safety | High risk of port damage on switches | Low risk; protects active hardware |
Organization | Prone to "cable spaghetti" | Highly organized and labeled |
Scalability | Limited by physical cable reach | Virtually unlimited through structured runs |
Cost (Long-term) | Higher due to potential hardware failure | Lower due to efficiency and protection |
A comprehensive patch panel cable management system integrates horizontal and vertical managers, D-rings, and labeling to ensure that the physical layer of the network remains sustainable and high-performing.
A patch panel alone is only half the solution; it must be paired with effective management tools to be truly effective. Horizontal cable managers are typically installed above or below each patch panel to provide a pathway for patch cords to reach the sides of the rack. These managers often feature "fingers" or "brushes" that allow cables to pass through while hiding the bulk of the wire. This prevents cords from hanging in front of other equipment, which would otherwise block visibility of status LEDs and hinder access to other ports.
The relationship between the patch panel and the switch is the focal point of cable management. Using color-coded patch cords is a common professional practice. For instance, blue cords might be used for standard data, red for security cameras, and yellow for VOIP phones. When combined with the clear labeling on the patch panel faceplate, this system allows any IT professional—even one who didn't perform the original installation—to understand the network map at a single glance. This "visual intelligence" is a key component of a high-tier data center.
Moreover, vertical cable management plays a crucial role in handling the large bundles of cables that move up and down the sides of the server rack. These managers ensure that the cables maintain a proper bend radius. For both copper and especially fiber optic cables, bending a wire too sharply can cause "micro-fractures" or signal attenuation, leading to intermittent packet loss or total failure. A well-designed management system ensures that every cable is supported and protected from physical stress, ensuring the longevity of the entire network installation.
Horizontal Managers: Located between panels to route cords to the rack's vertical channels.
Vertical Managers: Wide channels on the sides of the rack for managing large cable volumes.
Cable Ties and Straps: Using Velcro (hook-and-loop) straps instead of plastic zip ties to prevent over-tightening and cable damage.
Labeling Software: Professional-grade, printed labels for both the panel ports and the ends of each cable.
Rear Cable Support Bars: Brackets attached to the back of the panel to take the weight of the permanent cable runs off the termination points.
