How do Pop Up Sockets work?

Pop up sockets operate via mechanical or pneumatic elevation assemblies—like gas struts or push-latch springs—housed below the desk. Pressing the top cover releases a mechanical latch, allowing spring or gas pressure to smoothly lift the socket cluster into a vertical, accessible position.

Key Takeaways

• Pop up receptacles hide inside counters to provide power while saving valuable table space.

• Pneumatic systems use nitrogen dampeners for smooth motion without needing external motor power.

• Silicone seals protect live electrical contacts against accidental spills and dust accumulation.

• Installation requires precise cutout dimensions and clear vertical space underneath the desk.

• Strain-relief cable management ensures internal wiring bends smoothly without flexing fatigue.

Core Operating Mechanisms

Pop up sockets use three main movement methods: push-latch springs, pneumatic gas struts, or motorized drives.

Manual push-latch spring systems use internal springs paired with a touch-latch mechanism. Pressing the top cap disengages the latch, allowing spring force to push the socket housing upward. Rotary friction dampers along the guide track prevent the module from snapping up too abruptly.

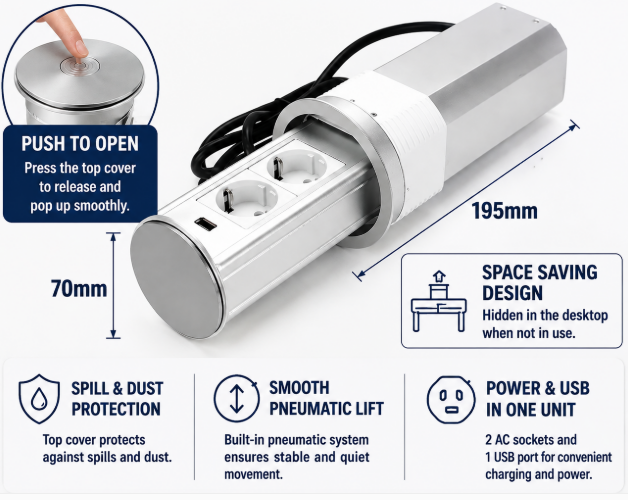

Pneumatic pop up sockets replace simple springs with sealed nitrogen gas cylinders. The gas strut provides steady upward pressure, lifting the power module smoothly. When designing commercial units, our team prioritizes a Euro type desktop pneumatic pop up power socket for office or kitchen because its pneumatic dampener decelerates smoothly at the top of its travel, reducing mechanical impact and table vibration.

Motorized pop up socket systems use electric stepper or gear motors connected to a threaded lead screw. Touch sensors trigger the motor to drive the socket housing up or down. While automated, motorized units need external power, have more potential failure points, and cost significantly more than pneumatic designs.

Internal Structural Components

A commercial pop up socket consists of an outer chassis, lift actuators, guide rails, power modules, and flex wiring.

The outer housing is built from extruded aluminum or flame-retardant ABS plastic. This canister protects mechanical parts from under-desk interference, catches debris, and secures to the furniture panel using a threaded locking collar.

Inside sits the vertical carriage assembly holding AC receptacles, USB charging boards, and data couplers. Precision aluminum or steel guide tracks line the outer tube, paired with Teflon or nylon sliding bushings to ensure smooth, wobble-free vertical movement.

At the base lies the primary power feed. Because the socket column moves vertically while the external connection remains fixed, the internal cable harness must move freely without pinching. High-flex copper cables are routed through internal guides to manage slack safely across thousands of elevation cycles.

Step-by-Step Pop Up Motion

The pop up socket operational cycle follows four steps: latch release, controlled ascent, top locking, and push retraction.

The idle state starts with the socket fully recessed. The top cover sits flush with the table, held down by a spring-loaded latch. The internal gas cylinder or spring remains compressed under tension against the locked pin.

When a user presses the top lid, downward force disengages the latch pin from its track. Released from the catch, the compressed pneumatic cylinder exerts steady upward force against the inner module carriage.

As the carriage rises, internal fluid dampeners control the speed, creating a smooth two-to-three-second ascent. At full extension, a mechanical limit lock catches the slide assembly so plugging in devices will not accidentally push the column back down.

To retract the unit, the user presses down on the cover until the latch pin clicks into its retaining seat, re-compressing the gas strut and locking the unit flush.

Pneumatic vs Mechanical Systems

Pneumatic elevation uses gas dampeners for controlled movement, whereas basic mechanical systems rely on steel springs and gears.

Mechanical spring systems use coiled steel springs to lift the module. These basic designs have non-linear force curves: they snap up fast at first and fade near top extension. Added friction gears help smooth this out, but dampening grease can degrade over time, leading to uneven pop up speeds.

Pneumatic mechanisms use sealed gas cylinders charged with high-pressure nitrogen to exert uniform force across the entire stroke. Internal fluid chambers regulate speed without external grease, delivering quieter operation, smoother travel, and consistent performance across temperature changes.

In commercial installations, European specifiers consistently choose a Euro type desktop pneumatic pop up power socket for office or kitchen over mechanical options. The uniform lift force handles heavy metal faceplates and integrated transformers effortlessly without binding during operation.

Key Benefits for Modern Interiors

Pop up sockets provide clear functional benefits: better cable management, space conservation, improved ergonomics, and splash protection.

1. Space Optimization

   By concealing electrical outlets, pop up sockets keep table space open for daily work. In meeting rooms, this eliminates bulky cable troughs and maintains a clean surface aesthetic when power is not needed.

2. Spill Protection

   Open surface outlets easily collect dust and liquid spills. Pop up sockets feature top cover plates with perimeter rubber seals that redirect accidental liquids away from internal electrical contacts when closed.

3. Ergonomic Power Access

   Standard wall outlets force users to reach under desks for power. A pop up socket brings AC power and USB charging directly to working height, improving accessibility across commercial environments.

4. Reduced Trip Hazards

   Trailing extension cables suspended from table edges create trip hazards and risk dragging devices off desks. Pop up units keep main wiring under the table, letting short cords plug in neatly on top.

Installation and Surface Fitting

Installing a pop up socket requires a precise cutout, under-desk clearance, clamping the chassis, and routing power cables.

Installation starts by cutting a clean hole through the table using a hole saw or CNC router. Accurate hole dimensions ensure the top lid sits flush without binding against the edges of the desk cutout.

Next, the pop up assembly is lowered into the cutout from above, placing a rubber seal between the top flange and desktop. From underneath, a threaded locking collar screws onto the exterior housing, securing the unit tightly against the worktop.

Under-desk space management is essential. Installers must confirm the lower housing does not interfere with drawer units, support frames, or user legroom. Main power cables exiting the bottom gland must be secured with strain-relief clamps to allow smooth vertical travel.

Installation Clearance Checklist

1. Verify worktop thickness matches the clamp range of the mounting ring (10 mm to 60 mm).

2. Measure vertical clearance below the table to prevent interference with drawers or legroom.

3. Ensure the upper seal sits flush against the table surface to block fluid ingress.

4. Secure the primary cable to under-desk supports using strain-relief clamps to protect terminal wiring.

Maintenance and Troubleshooting

Maintaining a pop up socket involves cleaning top seals, checking internal guide rails, and inspecting cable strain relief.

Over months of daily use, dust and dried liquid residue can collect in the ring gap around the pop up lid. Accumulated debris along the vertical guidance channels increases friction on slide bushings, causing the column to stick or lift unevenly.

Inspect the top splash seal every six months to ensure it remains flexible. Clean the sliding vertical column using a soft cloth dampened with isopropyl alcohol; never spray liquids directly into outlet faces. If movement feels stiff, apply a thin layer of dry PTFE silicon spray to internal guide tracks rather than heavy greases, which attract dust.

Check the main feed cable under the desk to ensure the flexible strain-relief boot remains firmly seated and moves freely without catching on under-desk hardware during elevation.

Comprehensive Socket Technology Comparison

Selecting the right pop up power unit depends on required mechanical durability, spill protection, power load, and project budget.

To specify the best socket configuration, architects and electrical contractors must evaluate operating mechanisms against performance demands.

High-traffic locations like conference rooms and hotel business centers require durable pneumatic systems that handle thousands of lift cycles smoothly. Residential kitchen islands require high ingress protection ratings to guard against liquid spills. Meanwhile, basic individual desks can use manual spring-driven units where budget efficiency is key.

When sourcing components for high-end European commercial projects, integrating a Euro type desktop pneumatic pop up power socket for office or kitchen ensures compliance with European electrical safety standards while delivering a refined mechanical feel for modern spaces.

Conclusion

Pop up sockets combine mechanical utility with modern interior design, offering accessible power without surface clutter. By utilizing gas-strut elevation, dual guidance tracks, and flexible internal cable harnesses, these units deliver long-term reliability for corporate, commercial, and residential uses. Choosing pneumatic dampening, splash sealing, and robust construction ensures clean, efficient, and safe desktop power access for years to come.
