WB-DPDU-P01
Webitelecomms
Overview
Taditional exposed power strips are gradually being replaced by integrated desktop power solutions. Webit Pop-up Socket provides a practical and elegant way to deliver power access directly from the conference table or workstation surface.
The Pneumatic pop up power socket integrates seamlessly into office furniture, allowing users to access power outlets only when necessary. This design not only improves workspace aesthetics but also reduces cable clutter and improves safety.
Designed with Euro standard Schuko outlets, this conference table pop up socket supports a wide range of office electronics such as laptops, monitors, projectors, and mobile device chargers. The pneumatic lifting mechanism ensures smooth operation and long-term durability, making it an ideal desk mounted power socket for professional environments.

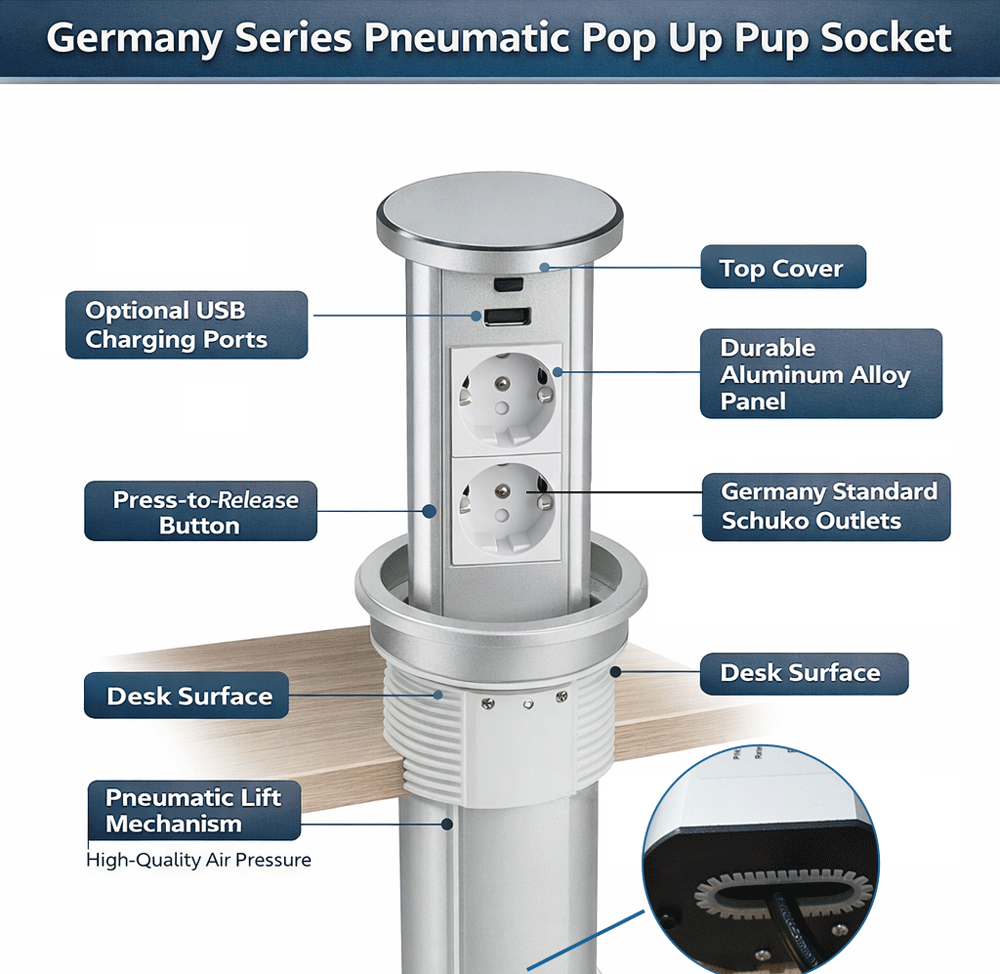

Key Features
Smooth Pneumatic Pop Up Mechanism
The pneumatic pop up structure uses a high-quality air pressure mechanism that allows the socket module to rise smoothly and silently from the desk surface with a simple press.
Optional handle-type or electrical raised type
Hidden Desktop Design
When closed, It remains flush with the desk surface, creating a clean and minimal workspace.
• Improves the visual appearance of meeting tables
• Prevents dust from entering the socket
• Protects outlets when not in use
Germany Standard Schuko Outlets
Equipped with Schuko outlets, which are widely used across Europe and many international markets.
Durable Aluminum Alloy Panel
The top panel of the conference table pop up socket is made from durable aluminum alloy, providing excellent strength and corrosion resistance while maintaining a premium appearance.
Flexible Interface Configuration
Customized with additional modules such as:
USB charging ports
HDMI interface
RJ45 network port
VGA or audio ports
This allows the conference table power module to support modern office connectivity needs.
Easy Installation for Office Furniture
The table mounted power socket is designed for quick installation in conference tables, office desks, and workstation surfaces.
Specifications
| Product Model | WB-DPDU-P01 |
| Mechanism | Pneumatic Lift |
| Installation Type | Desk Recessed Installation |
| Outlet Type | Schuko |
| Housing Material | Aluminum Alloy |
| Color | Silver/Black |
| Current | 16 Amp |
| Voltage | 220~250V |
| USB port | 5V 2.1A |
| Diameter | 60mm |
| Cut-out size | 65mm |
| Cable length | 2.0mtr |
| Wireless Charging | N/A |
| Installation Method | Table Cut-Out Mount |

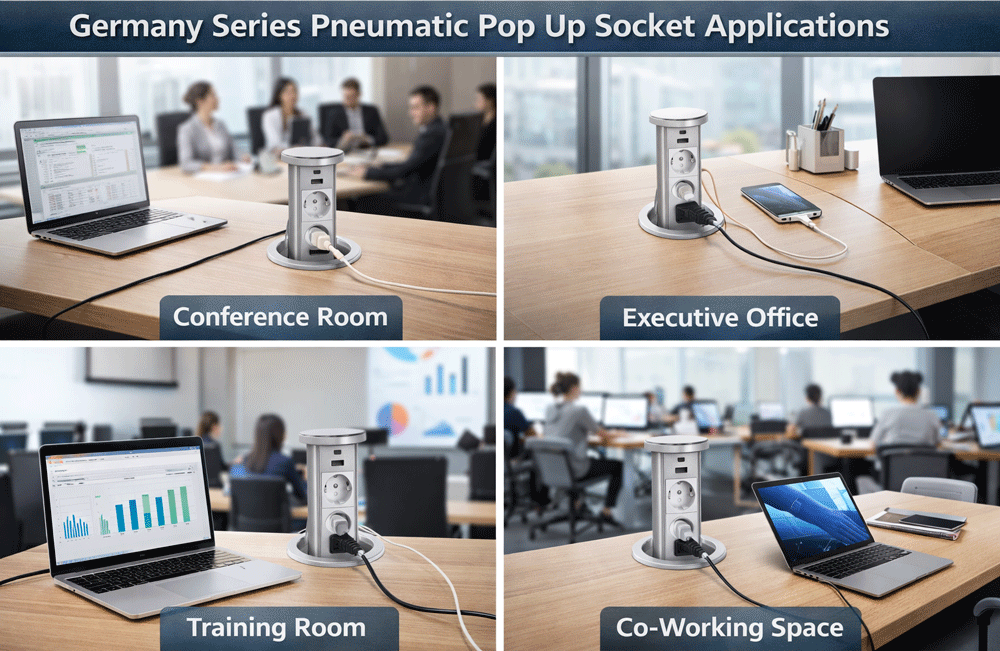

Applications
Typical applications include:
• Conference room meeting tables
• Executive office desks
• Training room workstations
• Co-working office spaces
• Multimedia conference rooms
• Smart office environments
FAQ
The pneumatic pop up socket uses an air pressure mechanism. Pressing the top panel releases the internal system, allowing the socket module to rise smoothly from the desk surface.
The desktop pop up power socket supports most office equipment including laptops, monitors, phone chargers, and presentation devices.
Yes. Many conference table pop up sockets support optional USB charging modules, allowing users to charge mobile devices directly.
Yes. The conference table pop up socket is specifically designed for meeting tables, providing convenient access to power and connectivity during meetings.
Yes. Manufacturers often provide OEM and customization services, including outlet types, module combinations, panel colors, and branding options.
Easy to Install pneumatic Pop up Outlets:
Step 1, cut a 60mm hole and and make sure there is enough depth for this unit;
Step 2, remove the locking ring from the socket, put the socket into the hole;
Step 3, screw the locking ring tight from bottom of the socket;
Step 4, connect the power supply,touch screen, the socket pops up; touch again, the socket retracts.
Using Steps:
Step 1,Connect the socket to the power supply;
Step 2,Push the top of the socket and it pop up via pneumatic mechanism when need to use ;
Step 3,And push down into the deskop when not to use;
NOTE:
After using the socket ,please close it , the top of the socket can waterproof splash, but the inside of our socket is nonwaterproof, please protect outlet from water spray.
DO NOT use any harsh chemical solvents.
DO NOT attempt to close the unit with power cords still connected to the outlet.
Never force the unit up or down - always check that there is no obstruction which would interfere with the operation of the unit before using or stowing the unit.
CAUTION:
Used indoors only
Risk of electric shock. Do not plug into another relocatable power tap
