Exploring Server Rack Sizes and Dimensions: Depth, Width, and Height

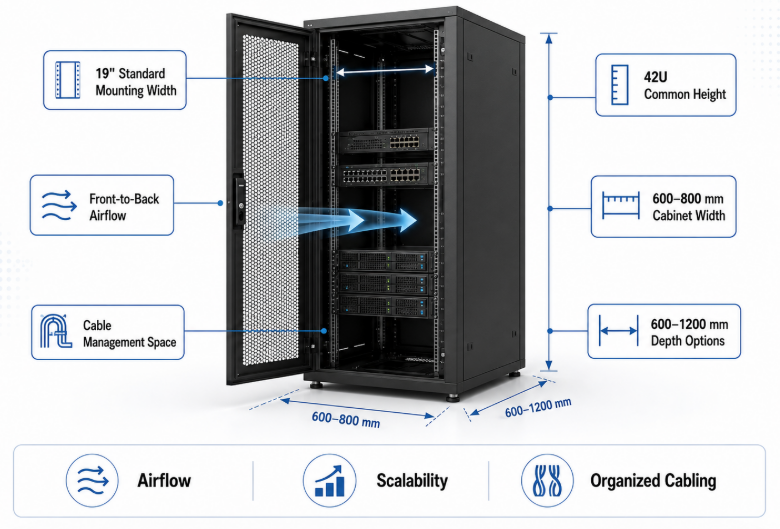

✅ Data center infrastructure management relies heavily on selecting the correct server rack cabinet dimensions, where standard width rests at 19 inches, heights range from 1U to 48U (most commonly 42U), and depths vary from 600mm to 1200mm to accommodate modern high-density compute hardware, thermal management setups, and structured cabling systems.

At a Glance

❓️Understanding the Basics of Server Rack Units

Server rack units represent the standardized vertical measurement increment used to determine the mounting capacity of IT hardware within a server rack cabinet.

The concept of the Rack Unit, universally abbreviated as U or RU, serves as the fundamental building block of data center physical architecture. Established by the Electronic Industries Alliance, this standardization ensures that hardware components from entirely different global manufacturers can seamlessly fit into any standard enclosure. A single rack unit measures exactly 1.75 inches or 44.45 millimeters in vertical height. When deploying infrastructure, understanding this increment allows technicians to precisely map out slot allocations, preventing physical interference between hot-swapping multi-node servers, high-density patch panels, and dedicated power distribution units.

When examining a professional enclosure, the vertical mounting rails feature pre-drilled holes grouped in sets of three, representing one full U space. The spacing between these holes follows a strict geometric layout to align with equipment ears. Missing this fundamental measurement during early design phases often leads to spatial misalignment, forcing engineers to leave costly gaps between hardware units, which ultimately compromises the volumetric efficiency of the entire server room.

For complex deployments, calculating total vertical space requires analyzing both current physical footprints and planned line-of-the-business expansions. Enclosures are manufactured in standard configurations ranging from small utility frames to massive colocation enclosures. Selecting the ideal height requires balancing physical building constraints, such as structural ceiling clearances and raised floor loading capacities, with the long-term computing density roadmap of the enterprise.

Standard Vertical Unit Conversions

❗️Standard Server Rack Width Dimensions Explored

The standard server rack width refers primarily to the 19 inch horizontal mounting distance between front rails, while external widths vary between 600mm and 800mm to accommodate physical space requirements.

While the internal mounting dimension remains locked at 19 inches across nearly all enterprise hardware, the total outer width of a server rack cabinet must be selected based on specific operational needs. The 19-inch specification covers the physical distance from one mounting hole center to the opposite side, matching the standard faceplate dimensions of servers, routers, and power equipment. However, the outer shell of the cabinet is typically manufactured in either 600mm or 800mm configurations, each serving distinct functional roles within a structured IT environment.

Choosing a 600mm wide cabinet is highly efficient for high-density server rows where floor space is at a premium and the hardware consists primarily of standard rack-mounted compute nodes. Because servers generally feature rear-facing input-output ports and integrated cable management arms, they do not require extensive lateral routing space. The 600mm width keeps the deployment compact, aligning perfectly with standard floor tiles in modern data centers and maximizing the computing power per square foot of real estate.

Conversely, an 800mm wide cabinet provides substantial extra space on both sides of the internal 19-inch mounting frame. This additional internal clearance is essential for networking enclosures that house core switches, high-density fiber optics, and extensive copper patching. The side channels allow for the installation of vertical cable managers, heavy-duty power distribution blocks, and slack storage spools, ensuring that massive wire bundles do not block exhaust air paths coming from the rear of active IT equipment.

Structural Dimensions of Width Variants

Structural Advantages of Width Optimization

1. Airflow Path Isolation

Utilizing wider frames allows engineers to install physical air baffles that prevent cold intake air from bypassing the server chassis. This segregation forces all cooling media through the active equipment, eliminating hot spots.

2. High-Capacity Cable Pathways

An 800mm chassis allows thousands of patch cords to run vertically down the front or rear corners without spilling into the equipment mounting zone. This keeps maintenance pathways completely accessible.

3. Power Distribution Integration

The extra side space enables the mounting of dual, redundant vertical intelligent PDUs without obstructing the rear hot-swap capability of server power supplies, fans, or storage arrays.

Demystifying Server Rack Depth Options

Server rack depth options define the total horizontal space from the front door to the rear door, ranging from 600mm for telecom applications to 1200mm for deep enterprise compute nodes.

Selecting the proper depth for a server rack cabinet requires looking closely at both the outer footprint and the actual internal adjustable mounting depth. Hardware components require physical space not only for their metal chassis but also for front handles, rear power cords, interface cable bend radiuses, and adequate exhaust zones. If a cabinet is ordered with insufficient depth, components may press against the glass or perforated steel doors, damaging data links or choking essential cooling paths.

Modern rack depths have expanded significantly to handle deep multi-processor systems and modular blade deployment frames. A decade ago, a 1000mm deep frame was sufficient; however, today's heavy-duty computing applications require 1100mm or 1200mm deep enclosures. These ultra-deep frames offer the necessary physical clearance to slide the internal vertical rails inward, leaving ample room at the rear for massive power distribution units and vertical cable organization without restricting exhaust airflow.

For less intensive environments, shallower footprints remain highly relevant. Network switches and patch panels typically feature shorter physical depths, allowing them to operate efficiently within 600mm or 800mm deep structures. When space is constrained, engineers use these shorter configurations to maintain wider, code-compliant access aisles between equipment rows, optimizing both safety and floor usage.

Deep Versus Shallow Depth Specifications

Choosing the Right Server Rack Height

Choosing the correct server rack height requires balancing immediate vertical equipment requirements with local physical room constraints, using standard selections from 6U to 48U configurations.

The vertical height of an enclosure affects both its total compute capacity and its environmental footprint. When planning a server room layout, height must be analyzed from two perspectives: the total number of rack units available for mounting hardware and the overall external physical height of the frame itself. Standard multi-tenant data centers prefer vertical maximization, frequently opting for 42U, 45U, or 48U cabinets to leverage vertical height and minimize expensive floor space usage.

For small businesses, branch offices, or edge computing points, full-sized industrial frames are often impractical. These applications are better served by mid-sized options like 12U, 18U, or 24U enclosures. These half-height systems fit easily under standard office desks, inside utility closets, or in tight retail spaces, while still delivering the precise 19-inch mounting profile needed to support enterprise-grade firewalls, local storage arrays, and backup power supplies.

When evaluating height, it is crucial to account for the physical path the cabinet must take to reach its final operating location. Door frames, service elevators, low hanging plumbing runs, and structural beams can block a tall 48U enclosure during delivery. Always verify that shipping clearances match or exceed the external dimensions of the fully assembled frame, including any heavy-duty casters, leveling feet, or top-mounted cooling fans.

Height Category Classification

Internal vs External Dimensions in Rack Selection

Internal dimensions dictate the maximum space available for mounting IT components, whereas external dimensions define the outer footprint required for room layout and shipping path planning.

A common mistake during data center build-outs is confusing internal mounting clearances with the external dimensions of the sheet metal enclosure. The outer shell includes necessary structural elements such as heavy-duty corner posts, double-wall side panels, door latch mechanisms, and airflow plenums. Consequently, a cabinet featuring an external width of 800mm still provides the standard internal 19-inch mounting width. Understanding this difference prevents deployment errors where equipment arrives but cannot fit due to physical interference with structural frame members.

Internal depth is highly adjustable because the vertical mounting rails are secured to track systems running along the base and top plates of the chassis. Technicians can slide these rails forward or backward to match the precise mounting points of server rail kits. However, shifting the rails too far forward leaves inadequate room for front door clearance and patch cable bend radiuses, while pushing them too far back can pinch power cables against the rear door panel.

External dimensions are critical for managing the room's floor layout and environmental engineering calculations. Designing hot and cold aisle containment systems requires exact external widths and heights to ensure a proper seal against ceiling plenums or vinyl containment curtains. Additionally, external dimensions are used to calculate the footprint contact area for floor load weight distribution, which is vital when deploying ultra-heavy backup battery banks or filled storage arrays.

Dimensional Parameter Variance

1. Front Rail Clearance Offset

Maintaining a minimum gap of 50mm to 75mm between the internal front rail and the door skin is essential. This buffer zone protects high-performance fiber-optic patch cords from crushing or exceeding their maximum bend radius.

2. Rear PDU Mounting Zones

The space between the rear vertical mounting rails and the back door must accommodate both primary and secondary power lines. This zone ensures that high-current power plugs can be safely inserted without blocking the hot-swapping path of internal cooling fan modules.

3. Base Plenum Entrances

The open area at the bottom of the enclosure must align with raised floor tile cutouts. This alignment enables bulk data lines and power whips to enter the cabinet cleanly, without rubbing against sharp sheet-metal edges.

Structural Types of Server Rack Cabinets

Server rack cabinet architectures are categorized by their physical construction types, which include open frames, enclosed cabinets, wall-mount enclosures, and specialized industrial designs engineered to shield critical IT assets from environmental hazards.

The environment where equipment is deployed determines the necessary structural style of the enclosure. For climate-controlled, secure data centers, open-frame structures consisting of two or four vertical steel posts provide excellent structural accessibility and unhindered airflow. However, when physical access control, structural security, and targeted thermal management are required, fully enclosed structures equipped with locking front, rear, and side panels become necessary.

For localized edge computing, distributed network endpoints, or branch facilities, space limitations often require mounting equipment directly onto walls or structural columns. Heavy-duty wall-mount brackets and compact cabinets safely support networking gear up to specific weight limits, keeping critical hardware up off the floor and away from foot traffic or accidental damage. When monitoring remote sites, choosing an intelligent 19 server rack cabinet with LCD screen for remotely monitor and control provides precise environmental tracking, allowing administrators to monitor temperature profiles and manage remote assets through a centralized digital interface.

When deploying equipment outside structured data center buildings, hardware must be shielded from rain, wind-blown dust, and extreme temperature shifts. For these environments, an IP55 waterproof stainless steel outdoor cabinet provides heavy-duty environmental protection, preventing moisture ingress and using industrial-grade weather seals to ensure continuous uptime for remote telecom setups or perimeter monitoring systems.

Structural Types Comparison

Thermal Management and Dimensions

Thermal management efficiency depends directly on selecting a cabinet size that provides adequate internal space for proper airflow distribution, preventing hot exhaust air from recirculating into cold intake zones.

As modern processors run hotter, the relationship between cabinet dimensions and thermal management becomes critical. If a cabinet is packed too tightly with equipment and lacks sufficient depth or width, the natural paths for heat dissipation are blocked. Modern thermal management designs use a front-to-back airflow model, drawing cold air from the front aisle, pulling it through the chassis, and exhausting it out the back. Any physical restriction along this path increases thermal load, triggering internal component throttling or premature hardware failure.

Using blanking panels is a highly effective way to optimize cabinet airflow. These non-vented sheets are installed in empty rack units to block open spaces, forcing cold air through the active equipment rather than letting it slip lazily into the rear exhaust plenum. Additionally, selecting a cabinet with extra depth provides a built-in buffer zone at the rear, allowing hot air to expand and rise cleanly toward overhead return plenums without creating backpressure against server exhaust fans.

In high-density configurations, passive convection often needs support from active cooling accessories. Top-mounted fan trays, bottom ventilation grills, and intelligent exhaust units can be integrated into the cabinet framework to actively pull air through the system. Properly managing these airflow paths enables data centers to run at higher ambient operational settings, reducing overall power usage effectiveness (PUE) metrics and lowering facility energy bills.

Airflow Optimization Parameters

Thermal Management Best Practice: Always maintain a front-to-back thermal boundary by using side air dams and blanking panels. Never mix front-to-back cooling equipment with side-to-side breathing hardware in the same vertical stack without using air diversion shrouds to correct the flow paths.

Cable Management Space Requirements

Cable management space requirements dictate the necessary internal clearances needed to route bulk network data lines and main power feeds without restricting equipment access or blocking exhaust paths.

Modern high-density computing arrays require extensive connectivity, meaning a single 42U cabinet can house hundreds of active network lines and power feeds. Without adequate vertical and horizontal clearance built into the cabinet's dimensions, this wiring can quickly turn into an unmanaged mess, choking airflow and complicating maintenance. When planning infrastructure deployments, prioritizing dedicated vertical wiring channels is essential for long-term operational health.

Choosing an 800mm wide enclosure provides a significant advantage for complex cable management. The extra width creates dedicated pathways on both sides of the central 19-inch equipment stack. These spaces can be fitted with high-capacity vertical managers, D-rings, and hook-and-loop fabric ties, allowing technicians to neatly organize thick bundles of copper or sensitive fiber patch cords well away from the equipment chassis.

Furthermore, proper horizontal management elements must be installed at regular intervals between active switches and patch panels. These components provide clean entry and exit points for wiring, preventing stress on delicate connection ports. Organizing cables cleanly ensures that individual server nodes can slide out fully on their telescopic mounting rails for servicing without disconnecting adjacent, active production networks.

Wiring Media Dimensional Properties

Future Proofing Your Server Rack Infrastructure

Future proofing server rack infrastructure requires selecting over-specified cabinet dimensions and load capacities during initial deployment to seamlessly accommodate next-generation compute, power, and storage footprints.

Technology cycles move quickly, meaning the infrastructure deployed today must remain functional through multiple generations of IT hardware updates. Choosing minimum-sized enclosures to save on upfront costs often backfires when newer, deeper, or hotter-running replacement servers cannot fit into the existing frames. By investing in deeper, wider, and taller enclosures from the start, enterprises ensure their physical infrastructure remains adaptable and relevant over time.

When planning long-term density, weight capacity is just as critical as physical size. Static load ratings define how much total equipment weight a cabinet's structural steel frame can safely hold when parked on leveling feet. Modern high-density configurations filled with deep blade arrays and heavy uninterruptible power supplies can easily weigh over 1300 kilograms, requiring heavy-duty steel construction and reinforced corner posts to prevent structural twisting or collapse.

Finally, the top and bottom entry plates of the enclosure must feature large, adaptable punch-out zones. As network architectures shift toward higher-bandwidth fiber optics and greater power inputs, the volume of incoming cables changes significantly. Having large, brush-sealed entry ports allows technicians to pull new lines and update power delivery systems easily, without exposing the internal equipment to dusty ambient conditions.

Long-Term Capacity Planning Blueprint

1. Volumetric Overhead Allocation

Always select a cabinet depth that exceeds your deepest planned hardware component by at least 150mm. This extra space provides the necessary rear clearance for high-capacity power distribution blocks and organized cable management bundles.

2. Weight Capacity Margin

Choose structural frames that offer a static load rating at least 25% higher than your immediate deployment calculations. This safety buffer easily accommodates future high-density storage arrays or backup battery updates.

3. Power and Data Separation

Ensure the layout includes dual vertical mounting pathways on opposite sides of the rear frame. This separation isolates low-voltage data lines from primary power cables, preventing electromagnetic interference and keeping the workplace organized.
