In the rapidly evolving landscape of telecommunications and data center management, the physical layer of your infrastructure remains the bedrock of operational stability. A patch panel serves as the central nervous system of a structured cabling system, providing a static point for cable terminations that protects expensive network switches from wear and tear. As businesses scale their digital footprints, selecting high-quality hardware from specialized providers like Webit Patch Panel solutions becomes essential for maintaining high-speed connectivity and minimizing downtime.
Selecting the right hardware requires a deep dive into port density, cable compatibility (Cat6 vs Cat6a), shielding requirements, and future scalability to ensure the network remains efficient and manageable over its entire lifecycle.
The following guide outlines the strategic best practices for choosing the ideal hardware for your racks. By following these industry standards, you can transform a cluttered server room into a high-performance environment. We will explore everything from basic identification of needs to the nuanced differences between modular and fixed designs to help you make an informed investment.
Section | Summary |
Understanding Your Network Needs | Analyzes the foundational requirements including port count, bandwidth standards, and environmental factors that dictate the initial selection process. |
Evaluating Patch Panel Types | Compares modular (keystone) designs with non-modular fixed panels to determine which fits specific B2B applications. |
Consider Cable Management | Highlights why organization is critical for airflow and troubleshooting, focusing on horizontal and vertical management features. |
Assessing Build Quality and Durability | Details the material science and manufacturing standards required for long-term reliability in high-traffic data centers. |
Budgeting for Performance | Discusses the Total Cost of Ownership (TCO) and how to balance initial capital expenditure with long-term operational efficiency. |
To select the correct hardware, you must first calculate the current and future port density requirements while ensuring the panel supports the specific category of cabling, such as Cat6 or Cat6a, used throughout your facility.
Identifying your needs begins with a comprehensive audit of your active equipment. You must determine how many "drops" or connection points are required in your work area outlets and cross-reference this with your rack space availability. Most standard environments utilize 24-port or 48-port configurations. However, if you are operating in a high-density environment where RU (Rack Unit) space is at a premium, you might consider high-density panels that pack 48 ports into a single 1U space.
Furthermore, the electrical specifications of your network dictate the physical requirements of the patch panel. For instance, if your facility is running 10GBASE-T over Copper, you must ensure your panels are rated for Cat6a to prevent alien crosstalk. If your environment is subject to high electromagnetic interference (EMI), such as a manufacturing floor, shielded (FTP/STP) panels are non-negotiable. Understanding the difference between Patch Panel vs Switch functions is also vital at this stage to ensure you are not over-provisioning active ports for passive connection needs.
Port Density: Calculate the total number of connections plus a 20% growth margin for future expansion.
Category Rating: Match the panel to your cable (Cat5e, Cat6, Cat6a, or Fiber).
Shielding: Identify if you need UTP (Unshielded) or STP (Shielded) based on local interference.
Rack Space: Determine if you have 1U, 2U, or 4U of space available for the installation.
Choosing between modular panels, which use individual keystone jacks, and non-modular panels, which have fixed PCB-mounted ports, depends on your need for configuration flexibility and ease of maintenance.
Modular patch panel designs are increasingly popular in modern data centers due to their extreme versatility. These frames allow technicians to mix and match different types of connectors—such as RJ45, fiber optic, or even HDMI—within the same 1U or 2U frame. This "unloaded" approach means if a single port fails, you only need to replace one keystone jack rather than the entire panel. This significantly reduces long-term maintenance costs and allows for a "pay-as-you-grow" strategy where you only populate the ports you currently need.
Conversely, non-modular or "fixed" panels come with pre-configured ports soldered onto a internal printed circuit board (PCB). These are often more cost-effective for large-scale deployments where the cabling type is uniform (e.g., all Cat6). They offer a very stable termination point, but the downside is that a single damaged port can sometimes compromise the entire unit or at least leave a dead spot in your rack that cannot be easily repaired. When browsing high-quality network connectivity products, it is essential to weigh these maintenance factors against your initial budget.
Feature | Modular (Keystone) | Non-Modular (Fixed) |
Flexibility | High (Mix copper/fiber) | Low (Single cable type) |
Maintenance | Easy (Individual port replacement) | Hard (Requires full panel swap) |
Initial Cost | Higher (Frame + Jacks) | Lower (All-in-one) |
Installation Speed | Faster for pre-terminated cables | Slower (Requires 110-block punching) |
Effective cable management within a patch panel setup is critical for maintaining proper airflow, ensuring easy access for troubleshooting, and protecting the minimum bend radius of high-performance copper and fiber lines.

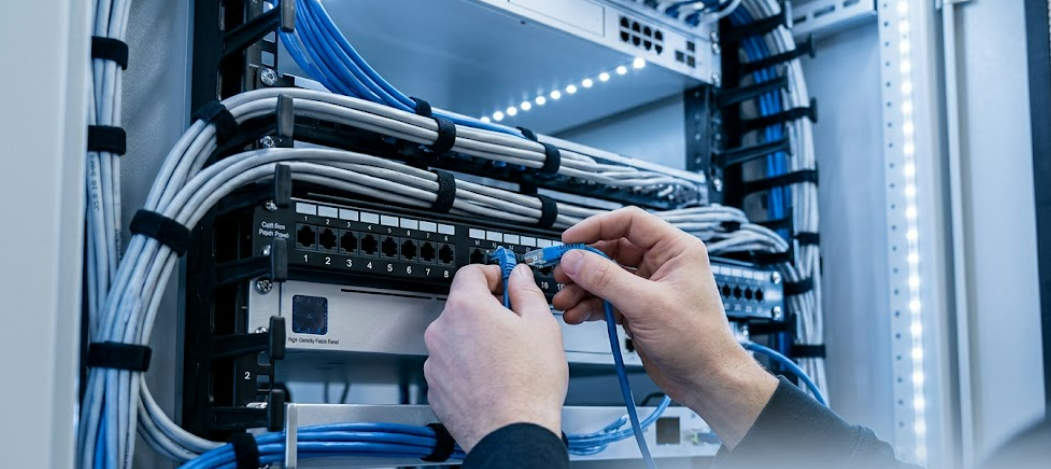

A common mistake in network design is treating cable management as an afterthought. Without integrated management bars or D-rings, the weight of dozens of cables hanging from the back of the panel can cause "cable strain," leading to intermittent connection failures or complete signal loss. High-quality panels often include a rear lacing bar. This horizontal metal support allows you to secure each cable with Velcro ties, transferring the physical weight from the delicate termination point to the sturdy metal frame of the rack.
On the front side of the rack, accessibility is the priority. When you understand the purpose of a patch panel in a rack, you realize it acts as the interface for all moves, adds, and changes (MACs). Clear labeling and organized patch cord routing ensure that when a technician needs to swap a connection, they can do so without disturbing neighboring links. Proper organization also prevents "cable spaghetti," which blocks exhaust fans on switches and servers, leading to thermal throttling and hardware failure.
Reduced Signal Loss: Prevents tight bends that cause "return loss" in high-speed data transmission.
Improved Cooling: Clear paths for airflow ensure that active equipment stays within optimal temperature ranges.
Faster Troubleshooting: Logical labeling and routing allow for near-instant identification of specific link paths.
The durability of a patch panel is determined by the thickness of its cold-rolled steel frame, the gold plating thickness on the contact pins, and the reliability of the IDC (Insulation Displacement Contact) blocks.
In a B2B environment, hardware is expected to last 10 to 15 years. This longevity is only possible if the panel is constructed from heavy-duty materials. Standard panels are typically made of SPCC (Cold Rolled Steel). The thickness of this steel determines if the panel will flex or sag when fully loaded with heavy Cat6a shielded cables. A flimsy panel can lead to terminations "popping out" over time due to mechanical stress. Furthermore, the finish—often a powder coating—should be resistant to scratches and corrosion to maintain a professional look and prevent oxidation in humid environments.
The internal components are even more critical. For RJ45 ports, the industry standard for high-performance connections is 50-micron gold plating on the contact pins. This thickness ensures that the electrical connection remains stable even after hundreds of "mating cycles" (plugging and unplugging). For the rear termination, the IDC blocks should be compatible with both 110 and Krone punch-down tools and be made of phosphor bronze with tin plating to ensure a gas-tight connection that resists corrosion.
Material: 1.5mm to 2.0mm thick cold-rolled steel.
Contacts: 50µ (micron) gold plating over nickel.
Certification: UL listed and RoHS compliant for safety and environmental standards.
IDC Compatibility: Supports 22-26 AWG solid wire.
Strategic budgeting for network infrastructure involves looking beyond the initial purchase price to consider the Total Cost of Ownership (TCO), including installation labor, maintenance downtime, and future-proofing capability.
While it may be tempting to opt for the lowest-priced generic hardware, the costs of a "cheap" patch panel often surface during installation or after the first year of operation. A low-quality IDC block might require a technician to punch down a single wire three times before a solid connection is made, doubling your labor costs. By contrast, investing in premium solutions like those found in the Webit product catalog ensures that terminations are "one and done," significantly reducing the man-hours required for large deployments.
Future-proofing is the ultimate form of budget optimization. If you install a Cat5e panel today to save 20%, but need to upgrade to 10Gbps speeds in three years, you will spend significantly more on a complete rip-and-replace project than if you had initially invested in a Cat6a modular system. A modular approach allows you to upgrade your network's speed by simply swapping out keystone jacks while keeping the existing metal frames in place, preserving your initial capital investment.
Initial CAPEX: The cost of the frames, jacks, and management accessories.
Installation Labor: Premium panels with better IDC designs reduce "re-work" and testing time.
Operational OPEX: High-durability gold contacts reduce port failures and service calls.
Scalability Value: Modular systems allow for cheap upgrades without replacing the entire infrastructure.
