| Model: | WB-SSxxxx3NB |
| Place of Origin: | Zhejiang,China |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Material: | SPCC cold rolled steel or EG steel |
| Thickness: | Mounting profile 1.5 mm, others 1.0-1.2 mm |
| Static loading: | 60kgs |
| Fan hole: | 1 or 2 |
| Structure: | Assembled or flat packing |
| Surface: | Frosting or wrinkle |
| Color: | Black or grey |
| Quantity: | |
|---|---|
WB-SSxxxx3NB
Webitelecomms
| Supply Capacity | ||
| Trade Term | EXW, FOB , CIF , DDU | Production Capactiy | 5000 units / Month |
| Payment | L/C , T/T , PAYPAL , WU | Package | export cardboard |
| MOQ | 20 units | Lead time | 3~5 weeks |
Overview
WB-SSxxxx3NB cabinet is engineered for protecting and organizing network switches, patch panels, routers, PDUs, UPS systems, and fiber distribution equipment in limited-space environments.
Comes with a robusy SPCC cold rolled steel frame and tempered glass front door design.
this cabinet offers:
60KG capacity
Attractive appearance
Fast installation
Its blue rubber strip decoration, making it a perfect morden choice for commercial buildings, offices, schools, data rooms, hospitals, and telecom access points.

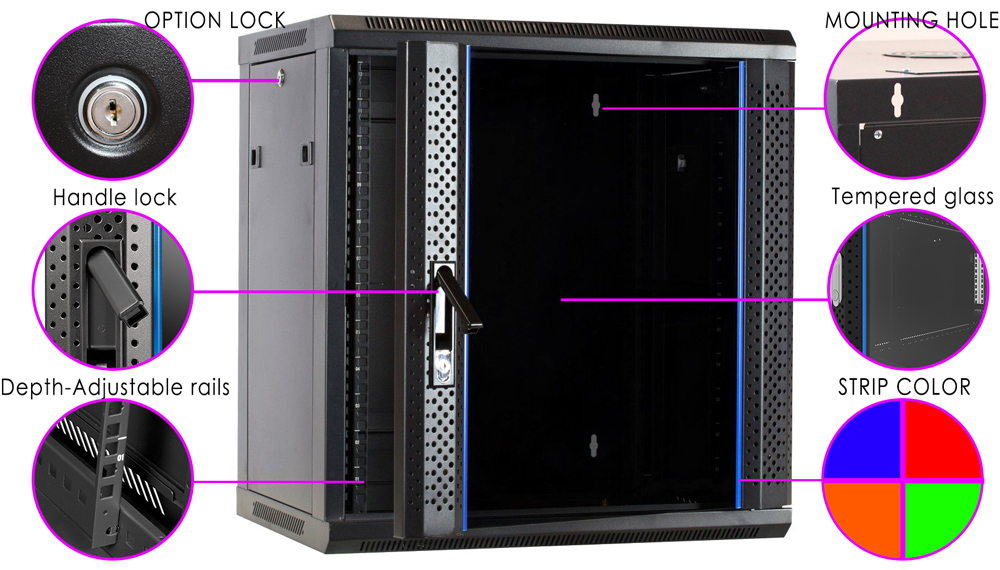

Features
19-Inch standard rack mount design.
4mm tempered glass front door with curved door-frame, fix with handle lock.
Multiple cable cntry at top and bottom.
U marked mounting profiles are depth-adjustable.
OEM / ODM customization available.
Flat pack structure , cost saving logistics & low storage cost
Techniocal details
| Model | WB-SSxxxx3NB |
| Material | SPCC Cold Rolled Steel (EG Steel is optional ) |
| Thickness | Mounting Profile 1.5mm; Others 1.0–1.2mm |
| Loading Capacity | 60 KG Static |
| Fan Mount | 1 or 2 Fan Holes |
| Cable Entry | Top 1×400×50mm; Bottom 1×400×50mm |
| Surface Finish | Powder Coating (Frosting / Wrinkle) |
| Color | Black/Gray/White,etc |
| IP Rating | IP20 |
| Structure | Flat Pack ( assemble available ) |
| Packaging | Export Carton + Optional Pallet |
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
2 | Front Door | 1 | Piece | 4mm Tempered glass 1.0mm SPCC steel | Powder coating | curved frame |
3 | Side Door | 2 | Piece | 1.0mm SPCC steel | Powder coating | |
4 | Back Door | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
6 | Top | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
7 | Profiles | 4 | Piece | 1.5mm SPCC steel | Powder coating | Optional GE |
8 | Small lock | 1 | Piece | Zinc alloy | - | Front door |
9 | Earthing Bolt | 1 | Piece | Y&G cable | - | |
10 | Gland Panel | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
11 | M4＆M5 cage | 20 | Set | Mn56 steel, zinc plated | Powder coating | |
12 | M6 Screw | 10 | Set | Mn56 steel,zinc plated | Powder coating | |
13 | Quick open latch | 4 | piece | Plastic | Powder coating | On side doors |

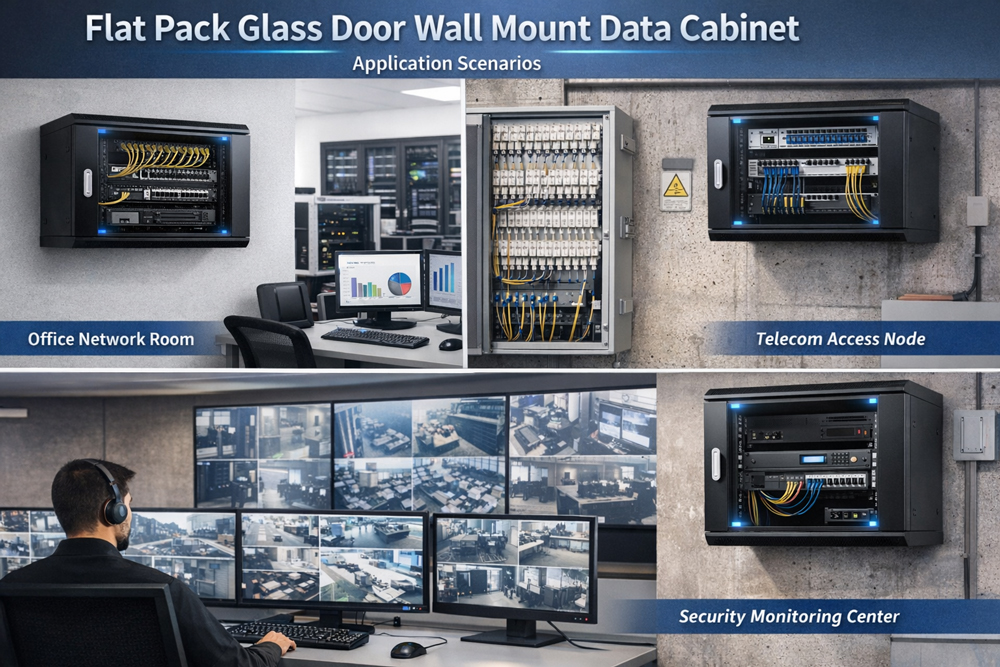

Application
This wall mounted network cabinet is widely used in:
Enterprise IT infrastructure rooms
Office building data wiring closets
Telecom access nodes
Schools & education network systems
Hospitals & medical IT systems
Security monitoring centers
Retail chain network installations
Benefits
✔ FREE SAMPLE
✔ Factory Direct Price
✔ Make to Order design
Basic size list
