WB-SSxxxx3NB
Webitelecomms
The WB-SSxxxx3NB series flat pack glass door wall mount data cabinet is meticulously engineered to protect and organize vital network components in space-constrained environments. It serves as a highly reliable enclosure for network switches, patch panels, routers, PDUs, UPS systems, and fiber distribution equipment. Constructed with a robust SPCC cold-rolled steel frame, this cabinet balances structural durability with practical functionality.
Designed to meet typical commercial purchasing needs, this cabinet offers a secure 60KG static loading capacity, ensuring stable support for standard IT infrastructure setups. Its signature blue rubber strip decoration adds a modern aesthetic touch, making it an excellent choice for visible installations in commercial buildings, corporate offices, educational institutions, hospital IT rooms, and telecom access points. Furthermore, the innovative flat pack design guarantees fast installation while significantly reducing shipping volume and warehouse storage costs.

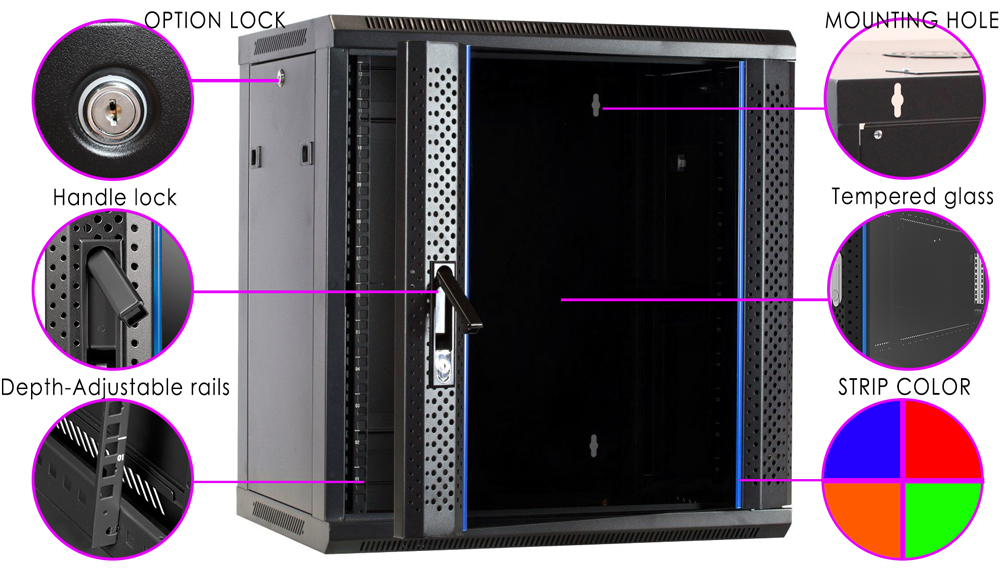

19-Inch Standard Rack Mount Design: Ensures seamless compatibility with standard networking and telecom equipment, streamlining the deployment process.
4mm Tempered Glass Front Door: Features a curved door-frame and is secured with a reliable handle lock, providing both equipment protection and clear visibility for quick status monitoring.
Flexible Cable Management: Equipped with multiple cable entry panels at both the top and bottom, facilitating clean, organized, and adaptable wiring layouts.
Depth-Adjustable Mounting Profiles: U-marked rails allow for easy depth adjustments to accommodate various equipment sizes and configurations.
Cost-Effective Flat Pack Structure: Ships unassembled to maximize container space, substantially lowering logistics and warehouse storage costs without compromising structural integrity.
OEM / ODM Customization Available: Flexible manufacturing capabilities support tailored dimensions, colors, and branding to meet specific project requirements.
Model | WB-SSxxxx3NB |
Material | SPCC Cold Rolled Steel (EG Steel is optional) |
Thickness | Mounting Profile 1.5mm; Others 1.0–1.2mm |
Loading Capacity | 60 KG Static |
Fan Mount | 1 or 2 Fan Holes |
Cable Entry | Top 1×400×50mm; Bottom 1×400×50mm |
Surface Finish | Powder Coating (Frosting / Wrinkle) |
Color | Black/Gray/White, etc. |
IP Rating | IP20 |
Structure | Flat Pack (assemble available) |
Packaging | Export Carton + Optional Pallet |
NO. | Part Name | QTY | Unit | Materials | Treatment | Note |
1 | Frame | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
2 | Front Door | 1 | Piece | 4mm Tempered glass | Powder coating | curved frame |
3 | Side Door | 2 | Piece | 1.0mm SPCC steel | Powder coating | |
4 | Back Door | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
5 | Bottom | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
6 | Top | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
7 | Profiles | 4 | Piece | 1.5mm SPCC steel | Powder coating | Optional GE |
8 | Small lock | 1 | Piece | Zinc alloy | - | Front door |
9 | Earthing Bolt | 1 | Piece | Y&G cable | - | |
10 | Gland Panel | 1 | Piece | 1.0mm SPCC steel | Powder coating | |
11 | M4＆M5 cage | 20 | Set | Mn56 steel, zinc plated | Powder coating | |
12 | M6 Screw | 10 | Set | Mn56 steel, zinc plated | Powder coating | |
13 | Quick open latch | 4 | piece | Plastic | Powder coating | On side doors |

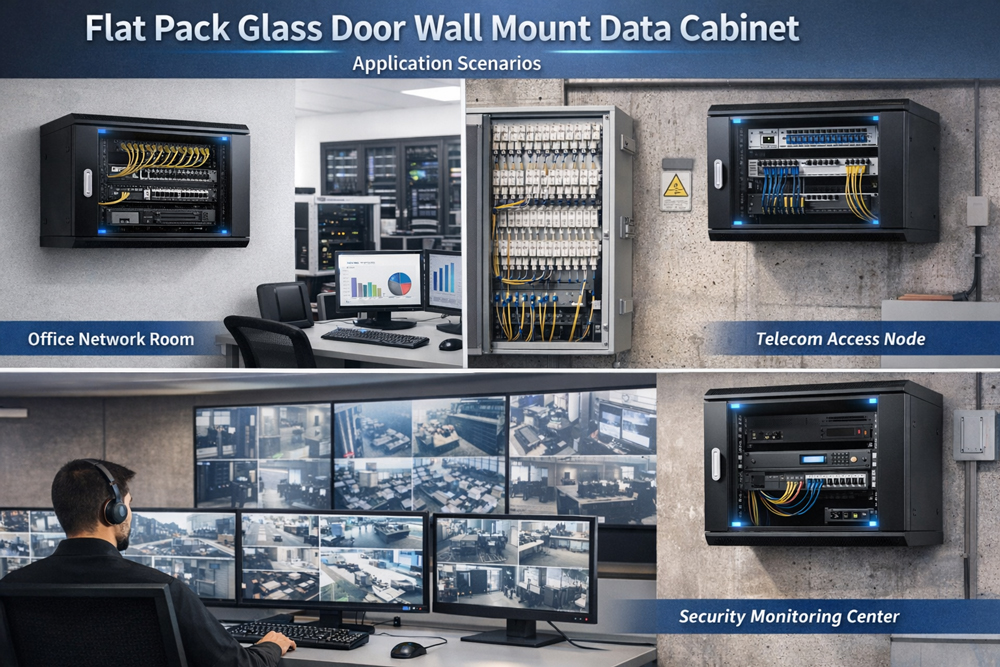

This versatile wall mounted network cabinet is designed for diverse deployment scenarios where floor space is limited but equipment security is paramount. Its compact form factor and professional appearance make it an ideal choice for both visible and concealed installations, including:
Enterprise IT infrastructure rooms
Office building data wiring closets
Telecom access nodes
Schools & education network systems
Hospitals & medical IT systems
Security monitoring centers
Retail chain network installations
✔ FREE SAMPLE: Evaluate the build quality and design suitability before committing to bulk orders.
✔ Factory Direct Price: Optimize your procurement budget by sourcing directly from the manufacturer.
✔ Make to Order Design: Benefit from flexible manufacturing capabilities to support customized project specifications.
Model | W x D x H | U | Model | W x D x H | U |
WB-SS64043NB | 600×450×278 mm | 4U | WB-SS66043NB | 600×600×278 mm | 4U |
WB-SS64063NB | 600×450×367 mm | 6U | WB-SS66063NB | 600×600×367 mm | 6U |
WB-SS64093NB | 600×450×456 mm | 9U | WB-SS66093NB | 600×600×456 mm | 9U |
WB-SS64123NB | 600×450×500 mm | 12U | WB-SS66123NB | 600×600×500 mm | 12U |
WB-SS64153NB | 600×450×634 mm | 15U | WB-SS66153NB | 600×600×634 mm | 15U |
WB-SS64183NB | 600×450×900 mm | 18U | WB-SS66183NB | 600×600×900 mm | 18U |
WB-SS64223NB | 600×450×1078 mm | 22U | WB-SS66223NB | 600×600×1078 mm | 22U |
Shipment | Speed | Cost | Suggestion |
Express | Fast , 3-7 days | High | Door to door delivery, fit for products that do not need custom clearance, such as samples. |
By air | Fast , 5-14 days | High | Delivery to airport, fit for small-size but high-value goods, such as Smart PDUs or KVM consoles. |
By sea | Slow, 20-55 days | Low | Delivery to seaport, fit for large-size or bulk orders; Webit supports door-to-door SEA SHIPPING dispatch. |
