In the world of networking and telecommunications, the term "patch cable" is frequently encountered. These essential components are the lifelines that connect various devices, ensuring seamless communication and data transfer. But did you know there are two main types of patch cables?
Whether you're setting up a home office, a data center, or just connecting a printer, using the right patch cable is crucial for performance and reliability. But with so many options, where do you start?

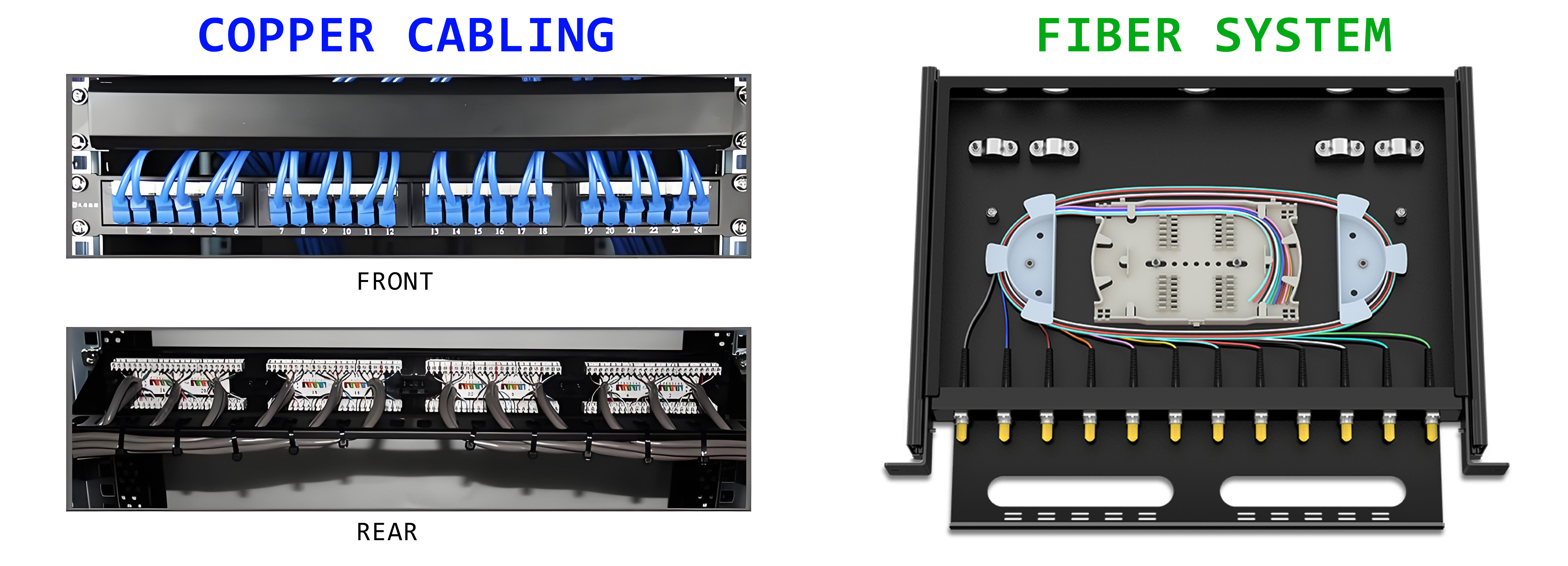

A patch cable, also known as a patch cord, is a general term for any short cable used to connect two electronic or optical devices. These cables are crucial in setting up networks, audio systems, and even home entertainment systems. They come in various lengths, colors, and types, but the two primary types are copper patch cables and fiber optic patch cables.
Copper patch cables are the most common type used in everyday networking. They are made from twisted pairs of copper wires, which are excellent conductors of electricity. These WEBIT cables are widely used due to their affordability and ease of installation.
There are several subtypes of WEBIT copper patch cables, each designed for specific applications:
Cat5e: An enhanced version of CAT5. It reduces crosstalk and is suitable for most home and small business networks, supporting Gigabit Ethernet (up to 1 Gbps) at 100 MHz bandwidth
Application:Home networks, connecting computers to routers, IP cameras
Cat6: Offers stricter specifications for crosstalk and system noise. It supports up to 10 Gbps speeds at 250 MHz bandwidth for distances up to 55 meters.
Application:Office networks, server rooms, and scenarios requiring higher bandwidth for data transfer.
Cat6a: The "augmented" CAT6. It supports 10 Gbps speeds at 500 MHz bandwidth over the full 100 meters, making it superior for larger installations.
Application: Data centers, high-performance computing environments, backbone connections in large buildings.
CAT7 & CAT8: These are shielded cables designed for high-frequency applications (up to 2000 MHz for CAT8). CAT8 is built for data centers, supporting 25 Gbps or 40 Gbps over short distances.
Application: Professional data center switch-to-server connections, high-speed network backbones.
WEBIT copper patch have several advantages including:
Cost-Effective: Generally more affordable than fiber optic .
Easy Installation: Easy install terminate making popular choice DIY enthusiasts .
Flexibility: Flexible easily routed through tight spaces .
Fiber optic use light transmit data made thin strands glass plastic fibers carry over longer distances minimal signal loss known high performance reliability .
There two main types :
Single-Mode Fiber (SMF): Has a very thin core (8-10 microns) that allows only one mode of light to travel. This results in less signal attenuation and is used for very long distances.
Application: Long-distance telecommunication, cable TV networks, university campuses.
Multi-Mode Fiber (MMF): Has a larger core (50 or 62.5 microns) that allows multiple modes of light to propagate. It's cheaper than single-mode but suffers from higher attenuation, making it suitable for shorter distances.
Application: Local Area Networks (LANs), data centers, connecting floors within a building.
WEBIT fiber optic offer several benefits including:
High Bandwidth: Carry large amounts very high speeds .
Long Distance: Transmit over much longer compared copper .
Immunity to Interference: Immune electromagnetic interference ensuring stable reliable connection .
Here is a quick-reference table to compare the key characteristics of these patch cables.
| Features | Cooper Patch Cable | Fiber Optic Patch Cables |
| Transmission Medium | Electrical signals over copper wire | Light pulses over glass/plastic fiber |
| Typical Connector | RJ11, RJ45 | LC, SC, ST |
| Max Distance | Up to 100m (varies by category) | Multi-mode: Up to 550m (for 10G); Single-mode: Up to 10km+ |
| Bandwidth & Speed | Up to 40 Gbps (CAT8) | Virtually unlimited, up to 100+ Gbps |
| Immunity to EMI | Low (can be affected by electrical noise) | High (immune to electromagnetic interference) |
| Cost | Lower (cable and equipment) | Higher (cable and transceivers) |
| Best Use Cases | Home/Office networks, short-distance device connections | Long-distance, high-bandwidth backbones, data centers |
Choosing the Right WEBIT Patch Cable
Making the right choice depends on your specific scenario:
For Home/Office Use (Desktop, Printer, Wi-Fi Router): A CAT5e or CAT6 copper cable is perfectly adequate and cost-effective.
For High-Performance Office/Server Room: Use CAT6a for robust 10G connections or to future-proof your installation.
For Connecting Different Floors or Buildings: If distance exceeds 100 meters or you need high bandwidth, Multi-Mode Fiber is the ideal choice.
For Long-Distance Telecommunications/ISPs: Single-Mode Fiber is the only viable option due to its incredible distance capabilities.
In conclusion ,Understanding the two types of patch cables—Copper and Fiber Optic—is the first step to building a reliable and efficient network. Copper is your go-to for most common, short-range applications, while Fiber is the powerhouse for speed and distance. By matching the cable to your specific needs, you ensure optimal performance for your network.Please feel free to contact Webit sales to assist your work.
