| Model: | WB-EZxxxx5NB |
| Place of Origin: | Zhejiang,China |
| Brand Name: | Webitelecomms |
| Certificate: | CE,ISO, ROHS,SGS,REACH |
| Export Area: | Europe,America,Middle east |
| Thickness: | Mounting profile:1.2mm, others 0.8~1.0 mm |
| Material: | SPCC cold rolled steel or EG steel |
| Installation: | Assembled or flat packing |
| Structure: | single section |
| Static Loading: | 45KGS |
| IP rate: | IP20 |
| Color: | Black or Grey ; Customized |
| Quantity: | |
|---|---|
WB-EZxxxx5NB
Webitelecomms
| Terms | Supply | ||
| Trade Term | EXW, FOB , CIF , DDU | Production Capactiy | 5000 units / Month |
| Payment | L/C , T/T , PAYPAL , WU | Package | 7-layer cardboard |
| MOQ | 10 units | Lead time | 4 weeks |
Overview
Wall Data Mount Cabinet is a slim, robust network enclosure engineered to organize and protect network switches, patch panels, routers, servers, and telecom equipment in locations where floor space is limited.
WB-EZxxxx5NB is a compact wall-mount housing with solid metal door, this cabinet delivers security and neat cable management — perfect for office spaces, telecom rooms, retail networks and small data closets.
550mm width compack design , Ideal for tight and narrow space
Wall Mounting , maximizes usable rack space without occupying floor area
ANSI/EIA 19″ standard
Full sealed with metal panels
Built-in cam lock for security
Position-adjustable for flexible device placement
U Marked standard 19" Profiles
Top & bottom cable entry openings
Optional ventilation slots or fan panel
Made by SPCC cold-rolled steel with power coated finish
45KG Load capacity suitable for standard network equipment
Professional appearance & long-term reliability
Custom dimensions, colors & branding
Packaging options for bulk export
Special cutouts and accessory provisions
Default size options
Width: 550 mm
Depth: 450 or 550 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U ,OEM
Customized size is available
Technical Sheet
| Model | WB-JYxxxx7NB |
| Installation | Wall Mounted |
| Material | SPCC Cold-Rolled Steel |
| Thickness | Rails: 1.2mm, others:0.80mm to 1.00mm |
| Load Capacity | 45KG |
| Surface | Frosting |
| Typical Installed Devices | Ethernet Switches , Fiber / Copper Patch Panels, Network Routers,PDUs |
| Pack | Assemble / Dis-assemble |

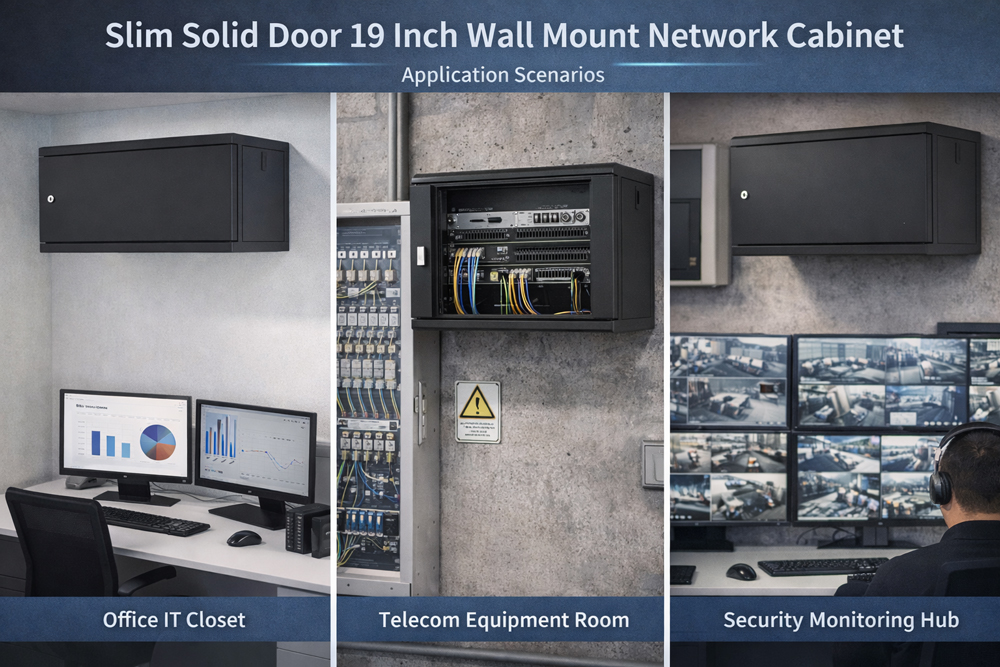

Application
This cabinet is widely used in:
Office IT network closets
Telecom equipment racks
Security monitoring hubs
Education campus networks
Retail chain data points
Hospital IT infrastructure
Small server rooms
Standard Size
| Model | W x D x H | U | Model | W x D x H | U |
| WB-EZ54045NB | 550×450×278 mm | 4U | WB-EZ55045NB | 550×550×278 mm | 4U |
| WB-EZ54065NB | 550×450×367 mm | 6U | WB-EZ55065NB | 550×550×367 mm | 6U |
| WB-EZ54095NB | 550×450×456 mm | 9U | WB-EZ55095NB | 550×550×456 mm | 9U |
| WB-EZ54125NB | 550×450×500 mm | 12U | WB-EZ55125NB | 550×550×500 mm | 12U |
| WB-EZ54155NB | 550×450×634 mm | 15U | WB-EZ55155NB | 550×550×634 mm | 15U |
| WB-EZ54185NB | 550×450×900 mm | 18U | WB-EZ55185NB | 550×550×900 mm | 18U |
| WB-EZ54225NB | 550×450×1078 mm | 22U | WB-EZ55225NB | 550×550×1078mm | 22U |
