| Model: | WB-FPP-24LC |
| Place of Origin: | Zhejiang,China |
| Brand Name: | Webitelecomms |
| Dimensions: | L 483*W 350*H 44.5 |
| Color: | Matt black |
| Installation: | 19" rack mountable |
| Port: | 24 for LC SM DX |
| Quantity: | |
|---|---|
WB-FPP-24LC
Webitelecomms

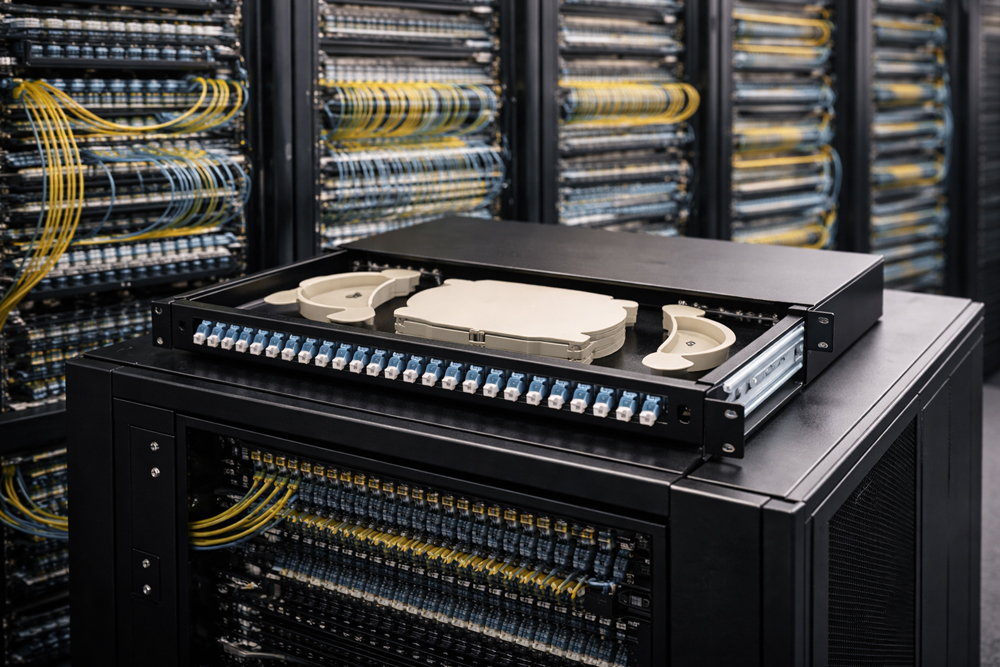

1U RACK-MOUNT full load 24 port LC duplex single mode fiber patch panel
Webitelecomms 24-Port Sliding Fiber Optic Patch Panel is engineered to transform chaos into order. WB-FPP-A panel provides a centralized, professional, and accessible hub for your critical single-mode fiber connections. The standout sliding tray design allows easy, front-facing access. Pre-loaded with high-quality LC duplex adapters and including a comprehensive Fiber Management Kit, this panel delivers an out-of-the-box, install-ready solution that saves time, protects your fiber investment, and keeps the focus squarely on network performance.
The splice tray inside the box is made of ABS and metal material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.
Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.At the back of the box, there are 4 cable fixing bayonets.
Features
1. 1U Sliding Operating.
2. Fiber input: 4.
3. Adapters output: 12-core or 24-core or 48-core.
4. Suitable for different adapters. (SC simplex, SC duplex, LC duplex, ST simplex, FC simplex)
5. 2 of Splice Tray
6. TIA/EIA-568-B.3 compliant
Technical Parameters
Material | SPCC Steel and ABS plastic |
Finished product | black appearance |
Cassette (splices trays) | 2-cassettes |
Physical Dimensions | Rack Units (U): 1U (44.4mm) Width: 483mm (19-inch standard) Depth: 350mm Weight: 4.7 kg |
Port Configuration | Number of Ports: 24 LC ( optional SC, ST ) |
| Cable Entry & Management | Rear Entry Holes: 4 x Φ30mm |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 500N |
Resistance | 750N |
Application
Data Center Main Distribution Area (MDA)
FTTH Access network
Telecommunication Networks
CATV Networks
Data Communications Networks
Ordering Information
Model | Description |
WB-FPP-24LC | 1U 24 Fiber LC Patch Panel - 24 Duplex LC SM Adaptors |
Want to Learn More About Fiber Optics Panels?
Building a confident network starts with knowledge. We invite you to explore our dedicated resource guide, contact us now !
