Key Takeaways
Thermal & Safety Protection: Outdoor battery cabinets require precise climate control, off-gas venting, and active fire suppression to prevent battery degradation and thermal runaway under extreme weather.
Durability & Sealing: Constructed from 304/316 stainless steel or high-grade galvanized steel with IP55 polyurethane continuous gasketing, these enclosures block moisture, salt fog, and dust penetration.
Active Cooling: Integrated compressor air conditioners or air-to-air heat exchangers stabilize internal thermal environments across fluctuating ambient conditions.

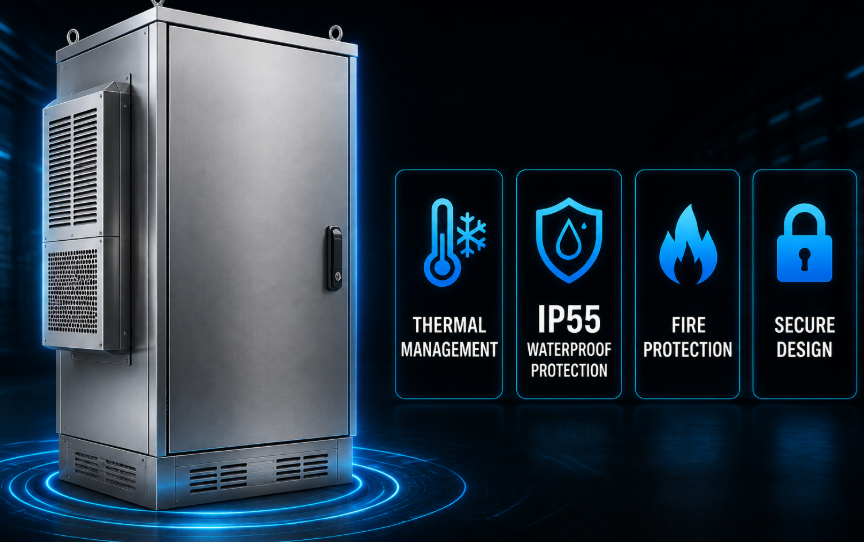

Outdoor battery cabinets serve as the primary defensive boundary for sensitive battery modules against extreme temperatures, solar heat loads, and corrosive contaminants. Lithium-ion and lead-acid batteries operate within narrow thermal limits; unmitigated temperature spikes cause capacity loss or system failure. Sealed, climate-controlled enclosures isolate battery cells from severe winter freezes and summer heat, extending operational life across telecom, solar, and utility sites.
Beyond thermal management, these cabinets protect internal electrical buses and BMS units from short circuits caused by rain, salt spray, and airborne dust. Multi-point locking bars and continuous sealing gaskets preserve IP55 ingress protection, while rugged frames provide physical security against vandalism and wildlife. Integrated power distribution, rack rails, and monitoring electronics streamline field installation into a single modular footprint.
Maintenance Tip: Inspect door gaskets every 12 months for wear, clean sealing surfaces with mild soap, and lubricate multi-point latches with synthetic grease to maintain IP55 sealing integrity. |
Selecting the appropriate cabinet involves evaluating heat dissipation, environmental extremes, ingress protection, and mounting requirements:
Thermal Load Calculations: Match internal heat generation (in Watts) and regional solar/ambient limits against cooling system capacity.
Ingress Protection (IP): IP55 enclosures block water jets and dust deposits for standard outdoor municipal deployments; harsher coastal sites may demand upgraded protection.
Structural Layout: Position batteries to optimize natural convective airflow and prevent localized hot spots. Standard 19/23-inch rack rails simplify the integration of rectifiers, breakers, and monitoring units.
Core Assessment Factors:
Thermal & Environmental Calculation: Calculate thermal deltas to size active cooling and prevent internal heat accumulation.
Sealing Assessment: Implement continuous polyurethane gaskets and liquid-tight cable glands to prevent water and dust ingress.
Spatial & Load Planning: Reinforce base frames and brackets to support heavy battery strings during transport and seismic activity.
Substrate selection directly determines structural longevity and corrosion resistance across coastal, industrial, or inland environments:
Structural Metals: Galvanized steel provides cost-effective strength for inland sites. 304/316 stainless steel provides superior rust prevention in coastal salt spray and high-humidity areas. Aluminum alloys suit weight-sensitive installations.
Surface Treatments: Thermosetting polyester powder coatings (e.g., RAL 7035 Light Gray) deliver high Solar Reflectance Index (SRI) performance, minimizing solar heat gain and resisting UV degradation.
Build Precision: Continuous robotic welding, smooth corner grinding, and continuous poured PU/EPDM gaskets retain elasticity over extended service lifespans.
Material Comparison:
Galvanized Steel: High strength, cost-effective; ideal for inland telecom and suburban stations.
304 Stainless Steel: High corrosion resistance; suited for high-humidity and general outdoor industrial sites.
316 Stainless Steel: Exceptional salt-spray resistance; mandatory for offshore platforms and coastal deployments (<1 km from sea).
Aluminum Alloy: Lightweight; optimized for rooftop or weight-restricted foundations.
To manage heat loads, hazardous gas build-up, and fire risks, cabinets integrate active cooling and safety mechanisms:
Climate Control Options: Closed-loop compressor air conditioners operate effectively in high-ambient zones (>40°C), while air-to-air heat exchangers provide closed-loop sensible heat transfer without introducing outside contaminants.
Off-Gas Venting: One-way pressure release valves or anti-explosion fans discharge hydrogen released during overcharging without compromising IP55 protection.
Active Fire Suppression: Aerosol-based fire extinguishers, micro-environment thermal tubing, and BMS shutdown relays quickly extinguish module-level thermal runaway events.
Selecting an IP55 outdoor battery cabinet manufactured from high-grade stainless steel or protected galvanized metal delivers long-term environmental protection, minimizes field maintenance overhead, and secures high return on investment for outdoor energy storage infrastructure.
