Solid copper wire is the gold standard in networking cables. Made entirely of pure copper, this type of conductor offers superior electrical conductivity, durability, and signal integrity. Data patch cables constructed with solid copper are widely used in structured cabling systems, especially in environments where reliability is non-negotiable.
High Conductivity: Copper is an excellent conductor of electricity, minimizing signal loss and ensuring faster data transmission.
Durability: Solid copper wires are robust and less prone to breakage, making them ideal for permanent installations.
Low Attenuation: Due to minimal resistance, solid copper cables experience less signal degradation over long distances.
Thermal Stability: Copper maintains consistent performance even in varying temperatures.
Enterprise Networks: Large organizations often prefer solid copper for backbone cabling due to its reliability.
Data Centers: High-speed data transmission requires minimal interference, making solid copper the go-to choice.
Permanent Installations: Since solid copper wires are stiff, they are perfect for fixed installations where cables won’t be frequently moved.
However, solid copper cables are generally more expensive than their CCA counterparts, which brings us to the next contender.

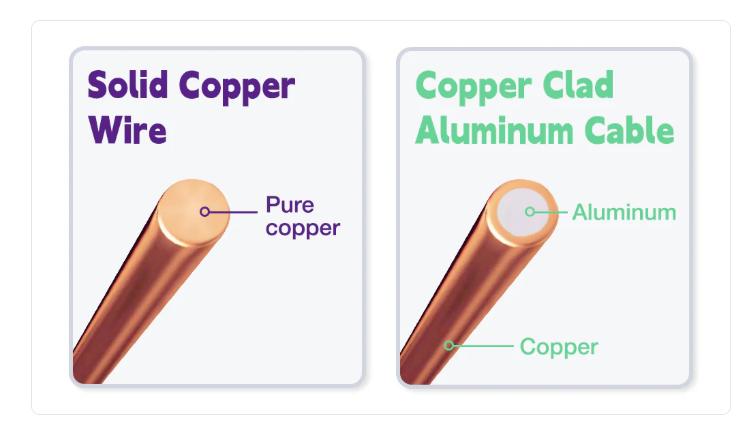

Copper-clad aluminum (CCA) cables are a cost-effective alternative to solid copper. As the name suggests, CCA cables consist of an aluminum core coated with a thin layer of copper. While this design reduces material costs, it also compromises certain performance aspects compared to pure copper.
Lightweight: Aluminum is much lighter than copper, making CCA cables easier to handle and install.
Lower Cost: Since aluminum is cheaper than copper, CCA cables are often more budget-friendly.
Higher Resistance: The aluminum core increases electrical resistance, leading to higher signal loss over distance.
Flexibility: CCA wires are more pliable than solid copper, making them easier to bend and route in tight spaces.
Residential Networks: For home users with shorter cable runs, CCA cables can be a viable option.
Temporary Installations: Events or short-term setups where cost savings are prioritized.
Budget-Conscious Projects: Organizations looking to cut costs without compromising too much on performance.
Despite these advantages, CCA cables have limitations, especially in high-performance networking environments.
When choosing between solid copper and CCA cables, several factors come into play. Below is a detailed comparison to help you understand their differences:
| Feature | Solid Copper | Copper Clad Aluminum (CCA) |
|---|---|---|
| Conductivity | High | Lower due to aluminum core |
| Signal Integrity | Excellent | Moderate (higher interference) |
| Durability | Very High | Moderate (prone to wear) |
| Cost | Higher | Lower |
| Weight | Heavier | Lighter |
| Flexibility | Less Flexible | More Flexible |
| Suitability for Long Runs | Ideal | Less Ideal |
| EMI/RFI Immunity | Better | Worse |
Solid Copper: Offers superior conductivity, ensuring minimal signal loss and faster data speeds. This is critical for high-bandwidth applications like 10Gbps Ethernet.
CCA: The aluminum core increases resistance, leading to higher attenuation (signal loss) over distance. This can result in slower speeds and potential connectivity issues in larger networks.
Solid Copper: More durable and less likely to break, making it suitable for long-term installations.
CCA: While flexible, the aluminum core is more susceptible to fatigue and wear over time, reducing its lifespan.
Solid Copper: Higher upfront cost but delivers better performance and longevity, making it a cost-effective choice in the long run.
CCA: Lower initial cost but may require replacement sooner, potentially increasing long-term expenses.
Solid Copper: Performs consistently across different temperatures and conditions.
CCA: May experience performance fluctuations due to aluminum’s higher thermal expansion.
The decision between CCA and solid copper depends on your specific needs. Here’s a breakdown to help you decide:
High-Performance Networks: If you’re setting up a gigabit or 10Gbps network, solid copper ensures optimal performance.
Long Cable Runs: For distances exceeding 100 meters, solid copper minimizes signal degradation.
Critical Applications: Data centers, server rooms, and enterprise networks where downtime is costly.
EMI-Prone Environments: Solid copper offers better shielding against electromagnetic interference.
Short Runs (≤50 meters): For typical home or small office networks, CCA can work well.
Budget Constraints: If cost is a major factor and performance isn’t mission-critical.
Frequent Cable Movements: The flexibility of CCA makes it easier to reposition cables as needed.
Future-Proofing: If you anticipate upgrading to higher speeds (e.g., 40Gbps), investing in solid copper now may save you from re-cabling later.
Quality of Installation: Even the best cables can underperform if installed incorrectly. Ensure proper termination and routing regardless of the cable type.
Many manufacturers don’t explicitly label their cables as CCA or solid copper, making it challenging for consumers to differentiate. Here are some methods to identify the type of conductor in your patch cable:
Solid Copper: Often labeled as “Copper,” “100% Copper,” or “Oxygen-Free Copper.”
CCA: May be labeled as “CCA,” “CCAM,” or sometimes just “Copper Clad.” If no clear labeling exists, proceed with caution.
Solid Copper: Heavier due to the dense copper conductor.
CCA: Significantly lighter because aluminum is less dense than copper.
Solid Copper: The exposed conductor (if stripped carefully) will be entirely copper-colored.
CCA: You may see a silvery aluminum core beneath the thin copper layer.
Resistance Test: Measure the resistance of a known length of cable. Solid copper will have lower resistance compared to CCA.
Conductivity Test: A conductivity meter can also help differentiate between the two materials.
Reputable suppliers like WebIT Cabling clearly specify whether their cables are solid copper or CCA. Always purchase from trusted sources to avoid substandard products.
Q: Yes, a patch cable can be employed as the Ethernet cable, since both are the same thing in copper networks. But, one thing to note here is that patch cables are best suited for smaller distances, from the patch to the switch.
Q: Basically, it transports signals between different parts of a network so that data can be conveyed effectively and dependably. Ethernet patch cables are indispensable in networking as they connect network devices, thus allowing them to communicate within a LAN.
Q: While some CCA cables claim to support Gigabit Ethernet (1000BASE-T), they often struggle to maintain stable performance, especially over longer distances or in environments with interference. For reliable gigabit speeds, solid copper is recommended.
