WB-PC-54L
Webitelecomms

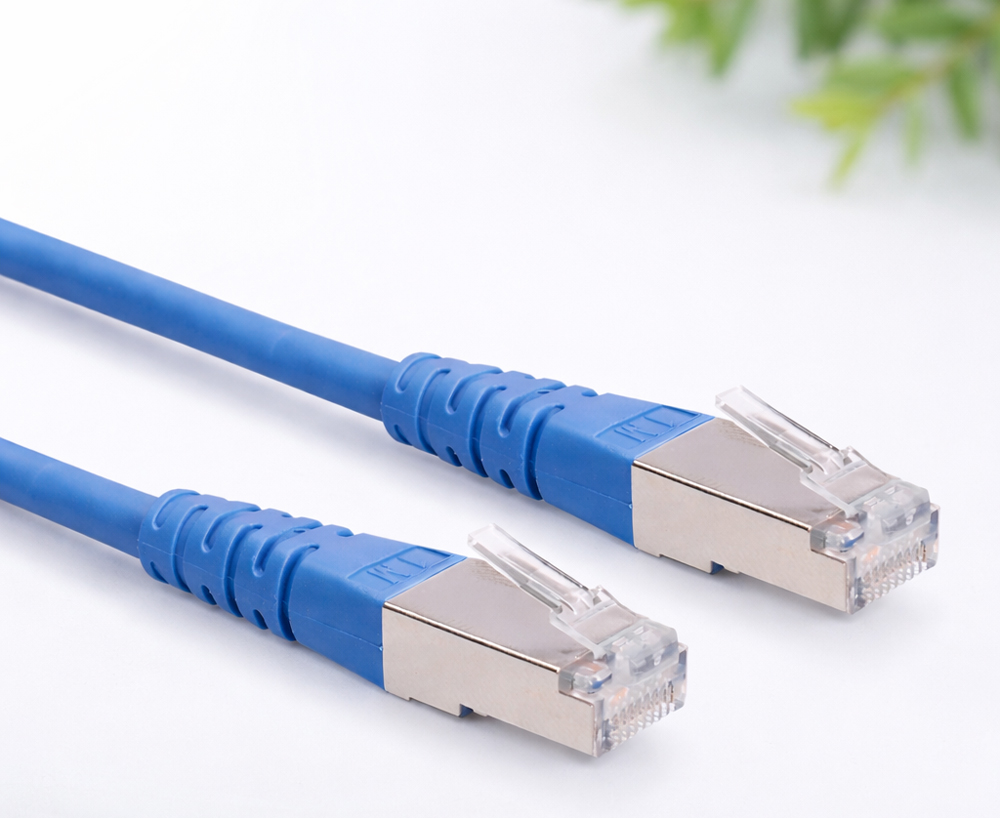

Cat6A Shielded (SFTP) Ethernet Network Patch cord , 26AWG, 1/10G Base-T
Cat6A FTP patch cable features with usual 26AWG twisted pair stranded copper cable ，with cost efficient way for indoor ethernet data transimission solution.
Achieve flawless 10-Gigabit Ethernet (10GBase-T) performance and protect sensitive data in demanding environments. Webit Cat6a Snagless Shielded (S/FTP) patch cable is engineered for the core of your network—from high-density data center switches to power-over-Ethernet (PoE) applications. Exceeding ANSI/TIA and ISO standards, it guarantees maximum signal integrity, minimizes crosstalk and external interference (EMI/RFI), and delivers stable power for the latest PoE++ devices. Fully backward compatible, it's the robust, future-proof link your infrastructure demands.
Key Benefits
✅ Guaranteed 10G Performance: Supports 10GBase-T speeds up to 100 meters and 550 MHz bandwidth.
✅ Superior Shielding (S/FTP): Foil-shielded pairs (FTP) with an overall braid (S) for maximum protection against alien crosstalk and electromagnetic interference.
✅ High-Power PoE Ready: Fully supports IEEE 802.3af/at/bt (PoE, PoE+, PoE++) for delivering both data and power up to 90W.
✅ Premium Build Quality: Features >99.95% oxygen-free copper conductors and 50µ" gold-plated contacts for optimal conductivity, corrosion resistance, and longevity.
✅ Exceed ANSI/TIA-568-D.2 Category 6A and ISO/IEC 11801, ANSI/TIA-568.2-D standard
✅ Stranded Cable and RJ45 Modular Plugs with 50μ Gold-plated Contact (options).
Technical Details
| Parameter | Specification |
| Product Type | Cat6a Snagless Shielded Ethernet Patch Cable |
| Shielding Type | SFTP |
| Jacket Material | LSZH |
| Color | Black/White/Gray/Green/Blue/Orange/Red/Yellow/etc. |
| Available Length | 0.10 to 100.00 mtrs |
| Conductor Material | >99.95% Oxygen-Free Copper (Stranded) |
| Wire Gauge (AWG) | 26AWG (7/0.16mm) |
| Data Rate | 10GBase-T |
| Maximum Frequency | 550 MHz |
| Maximum Distance | 100 meters (for 10GBase-T channel) |
| PoE Support | Yes (IEEE 802.3af/at/bt) - PoE, PoE+, PoE++ |
| RJ45 Connectors | 8P8C, Fμ" Gold Plated, Snagless Boot |
| Wiring Scheme | T568B, Straight-Through |
| Compliant Standards | ANSI/TIA-568.2-D Cat6A, ISO/IEC 11801 Class EA |
| Operating Temperature | -20°C to +75°C |
Fluke network cable testing
All of Webitelecomms patch cable pass the fluke test , including NEXT , PS NEXT, ACR-F , PS ACR-F, ACR-N, PS ACR-N , RL

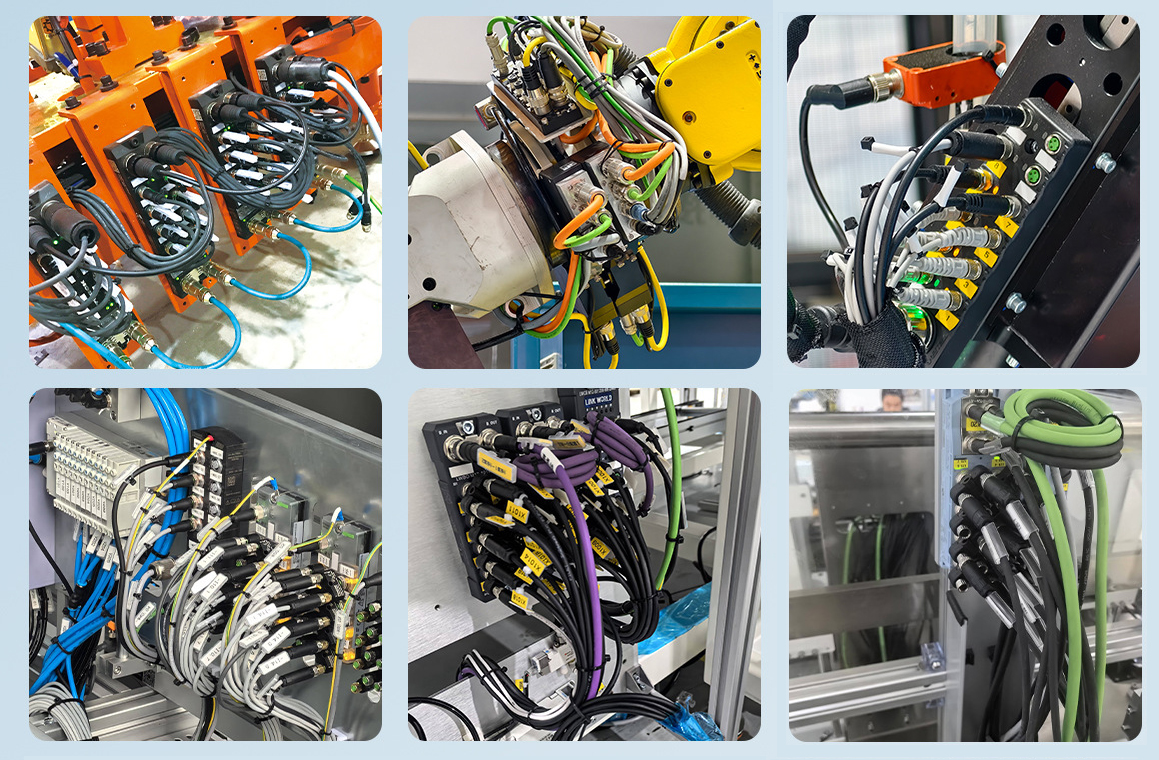

Application - Where to Use It
Core Network & Data Center Infrastructure
Power over Ethernet (PoE) Deployments
Office environments with potential EMI.
Network-Attached Storage
