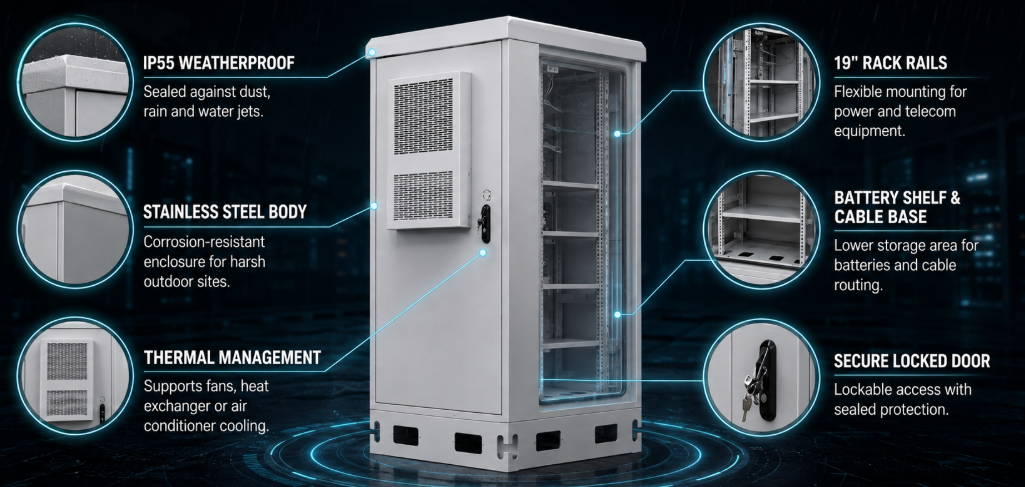

Selecting outdoor battery cabinets for any weather requires an IP55 or NEMA 4X ingress protection rating, structural materials such as 304 or 316 stainless steel or galvanized sheet metal, integrated thermal management systems like heat exchangers or air conditioners, and robust sealing gaskets. These engineering measures guarantee that outdoor battery cabinets keep internal cells within operational temperature limits and prevent moisture, dust, and toxic environmental contaminants from causing system failures.
Outdoor battery cabinets must maintain strict thermal boundaries to prevent battery degradation and thermal runaway under extreme heat or freezing ambient conditions.
Selecting the correct material, such as stainless steel or high-grade galvanized steel, prevents severe corrosion in coastal, industrial, and high-humidity environments.
An IP55 ingress protection rating is required to safeguard internal batteries against wind-driven rain, airborne sand, and high-pressure water streams.
Integrated climate control options, including direct compression air conditioners and counter-flow air-to-air heat exchangers, stabilize internal cabinet temperatures.
Proper off-gas venting and integrated active fire mitigation systems are mandatory safety requirements for high-density outdoor energy storage enclosures.
Outdoor battery cabinets serve as the primary protective defense for sensitive energy storage components against destructive atmospheric factors, ambient heat spikes, and physical contamination.
Industrial battery systems, particularly lithium-ion and advanced lead-acid chemistries, operate within tight thermal thresholds. When exposed to outdoor environments, untreated ambient temperature fluctuations cause significant capacity loss or total system failure. Outdoor battery cabinets provide a sealed, climate-controlled internal environment that isolates cells from freezing winters, scorching summers, and solar radiation loads. Deploying robust outdoor battery cabinets extends overall battery life and prevents premature replacement cycles in critical telecom, solar, and utility installations.
In addition to thermal protection, outdoor battery cabinets prevent moisture, dust, and corrosive airborne elements from contacting electrical buses and battery management systems. Rain, coastal salt spray, and blowing dust cause oxidation, short circuits, and ground faults. High-quality outdoor battery cabinets utilize engineered sealing systems and pressure-equalized enclosures to preserve structural integrity over decades of continuous exposure. Furthermore, outdoor battery cabinets offer physical security against vandalism, unauthorized access, and wildlife intrusion.
From an engineering perspective, outdoor battery cabinets streamline field installation by integrating power distribution units, battery racks, thermal management, and monitoring electronics into a single modular footprint. Designing systems with dedicated outdoor battery cabinets simplifies thermal modeling and field maintenance while meeting global safety compliance standards. For heavy-duty outdoor deployments requiring maximum weather resistance and structural rigidity, specialized enclosures like the IP55 waterproof stainless steel outdoor battery cabinet deliver reliable environmental isolation across extreme climates.
Environmental Parameter | Impact Without Enclosure | Mitigation Strategy in Outdoor Battery Cabinets |
Solar Radiation (UV) | Internal cabinet overheating, thermal runaway risk | Double-wall insulation, sunshades, reflective powder coatings |
Wind-Driven Rain / Moisture | Short circuits, terminal corrosion, insulation breakdown | IP55/IP66 polyurethane continuous gasketing, multi-point latches |
Ambient Temperature Extremes | Capacity drop (<0°C), accelerated aging (>35°C) | Thermoelectric coolers, active AC units, PTC internal heaters |
Corrosive Atmosphere / Salt Fog | Structural degradation, enclosure metal rusting | 304/316 stainless steel construction, outdoor epoxy coating |
Maintenance Tips: Inspect door gasketing every twelve months for signs of permanent compression set, cracking, or chemical degradation. Clean gasket surfaces with mild soapy water and ensure multi-point latching bars are lubricated with synthetic grease to preserve IP55 ingress protection levels over long service lifespans. |
Assessing your outdoor electrical enclosure needs requires analyzing internal thermal loads, ambient environmental extremes, ingress protection classes, and spatial mounting configurations.
Determining the correct parameters for outdoor battery cabinets begins with a detailed calculation of the total heat load generated by internal electronics and battery charging cycles. Internal heat dissipation, measured in Watts, must be balanced against heat loss or gain through cabinet walls under worst-case ambient conditions. Engineers evaluating outdoor battery cabinets must evaluate geographic factors including solar radiation indices, maximum summer temperatures, minimum winter temperatures, and prevailing wind conditions to size cooling equipment appropriately.
Ingress Protection (IP) ratings form another critical baseline when choosing outdoor battery cabinets. An IP55 rating guarantees protection against hazardous dust deposits and water jets from any direction, making it suitable for standard outdoor municipal and telecom installations. High-dust or coastal sites may require higher protection levels. System integrators must also evaluate mechanical load requirements, ensuring that internal shelving and structural frames within outdoor battery cabinets support heavy lithium-ion or VRLA battery strings during seismic activity.

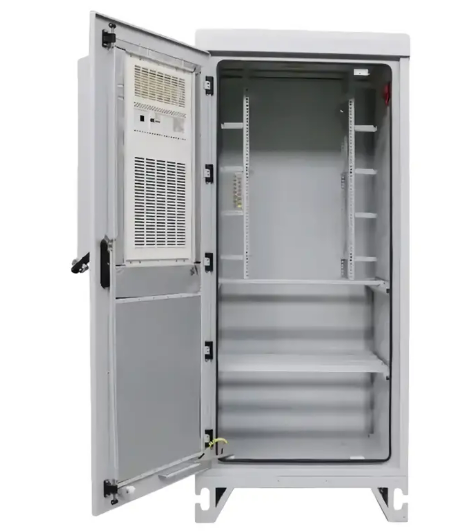

Component layout within outdoor battery cabinets significantly affects thermal performance and maintenance accessibility. Batteries must be positioned to promote natural convective airflow, avoiding localized hot spots. System designers often specify modular outdoor battery cabinets equipped with 19-inch or 23-inch rack mounting rails to allow clean integration of DC power plants, rectifiers, circuit breakers, and environmental monitoring units alongside battery trays. Choosing a well-proportioned IP55 battery cabinet enclosure helps maintain orderly cable management, correct air path distribution, and easy technician access for cell servicing.
Thermal Load and Environmental Calculation
Sizing outdoor battery cabinets requires calculating ambient temperature delta and total internal heat loss. Integrating active cooling units or passive heat exchangers prevents thermal buildup inside the cabinet, ensuring batteries remain within their optimal operating temperature range.
Ingress Protection and Sealing Assessment
Matching IP ratings to deployment sites prevents water and dust ingress. Outdoor battery cabinets deployed in dusty environments or exposed rain zones require continuous polyurethane gaskets and liquid-tight cable glands to protect internal components.
Spatial and Weight Distribution Planning
High-density battery strings exert high floor-loading weights inside outdoor battery cabinets. Reinforced base frames, heavy-duty shelf brackets, and balanced rack mount rails prevent structural flexing and ensure stability during transport and installation.
Material selection for outdoor battery cabinets determines structural durability, corrosion resistance, weight, and long-term lifespan across diverse climate zones.
The primary structural metals used in outdoor battery cabinets are galvanized steel, stainless steel (SUS304/SUS316), and marine-grade aluminum alloys. Galvanized steel offers high structural strength and cost-efficiency for inland installations. Stainless steel provides maximum protection in highly corrosive environments, such as coastal areas exposed to salt spray or industrial sites exposed to chemical vapors. Outdoor battery cabinets manufactured from 304 or 316 stainless steel prevent rust formation and maintain structural integrity over multi-decade deployments.
Surfaces on outdoor battery cabinets require specialized outdoor-grade coatings to resist ultraviolet radiation, chipping, and weathering. Electrostatically applied polyester powder coatings provide a durable finish that prevents substrate corrosion. European customers frequently request light gray finishes (such as RAL 7035) because they offer a high solar reflection index (SRI), reducing heat absorption from direct sunlight and lowering cooling power requirements.
Manufacturing quality shows in the details of outdoor battery cabinets: seamless weld joints, grinded corners, robust door hinges, and high-performance sealing materials. Gaskets made from continuous poured polyurethane or EPDM retain elasticity across wide temperature ranges, ensuring a tight seal despite repeated door openings. Specifying a high-quality waterproof outdoor stainless steel enclosure protects critical energy infrastructure against rust, mechanical wear, and atmospheric breakdown.
Material Type | Corrosion Resistance | Mechanical Strength | Typical Target Environment |
Galvanized Steel (SECC/SGCC) | Moderate (Powder Coated) | High | Inland telecom, suburban power stations |
Stainless Steel 304 | High | Very High | General outdoor, high humidity, outdoor industrial |
Stainless Steel 316 | Exceptional (Salt Spray Resistant) | Very High | Offshore platforms, coastal zones (<1km from sea) |
Aluminum Alloy (5052/6063) | High | Moderate | Weight-restricted installations, rooftop sites |
Stainless Steel vs. Galvanized Metal Substrates
Evaluating substrate metal options for outdoor battery cabinets requires balancing environmental exposure against cost constraints. Stainless steel resists rust completely even if surface coatings are scratched, making it ideal for harsh marine deployments.
High-Durability Architectural Powder Coatings
Surface treatment systems applied to outdoor battery cabinets must pass rigorous salt spray testing (e.g., 1000+ hours per ASTM B117). Thermosetting polyester coatings resist chalking, peeling, and color fading caused by continuous UV radiation.
Precision Welding and Structural Frame Integrity
Continuous robotic welding and reinforced frame geometry prevent racking or twisting when outdoor battery cabinets are fully loaded with heavy battery strings. Seams must be ground smooth to maintain consistent gasket contact surfaces.
Ventilation and safety features in outdoor battery cabinets manage heat buildup, remove hazardous off-gasses, and provide active fire containment for high-density power storage systems.
Thermal management systems for outdoor battery cabinets range from simple forced air fan cooling to closed-loop heat exchangers and compressor-based air conditioning units. Forced-air ventilation uses filtered louver inlets and exhaust fans, which is suitable when ambient temperatures remain lower than the maximum allowable battery temperature. Closed-loop air conditioners isolate internal cabinet air from external contaminants, removing internal heat loads effectively even when outside ambient temperatures exceed 45°C. Selecting the appropriate thermal management strategy prevents battery overheating and performance degradation.
Safety engineering in outdoor battery cabinets must also account for gas generation, particularly off-gassing during overcharging conditions. Lead-acid and certain lithium chemistries can release hydrogen or toxic gases, creating explosion risks in sealed enclosures. Outdoor battery cabinets require hydrogen venting channels or pressure-relief valves that vent lighter-than-air gases safely outside without compromising overall IP55 ingress protection. Specialized anti-explosion fan modules and hydrogen sensors can also be integrated into high-voltage outdoor battery cabinets.
Fire mitigation systems are becoming standard requirements in high-capacity outdoor battery cabinets. Aerosol-based fire suppression units, micro-environment fire detection tubing, and integrated battery management system (BMS) shutdown relays quickly detect and extinguish thermal runaway events at the module level. Combining intelligent thermal management, automatic off-gas venting, and rapid fire suppression inside outdoor battery cabinets ensures maximum operational safety across commercial, telecom, and renewable energy storage projects.
Thermal & Safety Component | Operating Principle | Primary Application in Outdoor Battery Cabinets |
Compressor Air Conditioner | Closed-loop active refrigeration cooling | High-ambient zones (>40°C), tight temperature control |
Air-to-Air Heat Exchanger | Closed-loop counter-flow sensible heat transfer | Moderate-ambient zones where internal temp can exceed outdoor temp |
Hydrogen Exhaust Vent / Valve | One-way directional pressure release | Prevents flammable hydrogen gas buildup from battery charging |
Aerosol Fire Suppression System | Thermally activated chemical fire extinction | Rapid extinguishing of thermal runaway in lithium-ion battery banks |
Selecting the right outdoor battery cabinets requires evaluating environmental conditions, structural material quality, ingress protection levels, and climate control configurations. As global renewable energy deployments and remote telecom networks expand, the demand for resilient outdoor battery cabinets continues to increase. Specifying enclosures built from high-grade stainless steel or protected galvanized metal with IP55 ingress protection ensures that critical battery banks operate safely across extreme temperature ranges, high humidity, and harsh weather conditions. System integrators who prioritize thermal engineering, corrosion resistance, and integrated safety venting in their outdoor battery cabinets secure long-term system reliability, reduce field maintenance overhead, and maximize return on investment for outdoor energy storage infrastructure.
