| Model: | WB-FPP-24LC-30D |
| Place of Origin: | Zhejiang,China |
| Brand Name: | Webitelecomms |
| Dimensions: | L 483*W 350*H 44.5 |
| Color: | Matt black |
| Installation: | 19" rack mountable |
| Port: | 24 for LC SM DX, angled |
| Quantity: | |
|---|---|
WB-FPP-24LC-30D
Webitelecomms

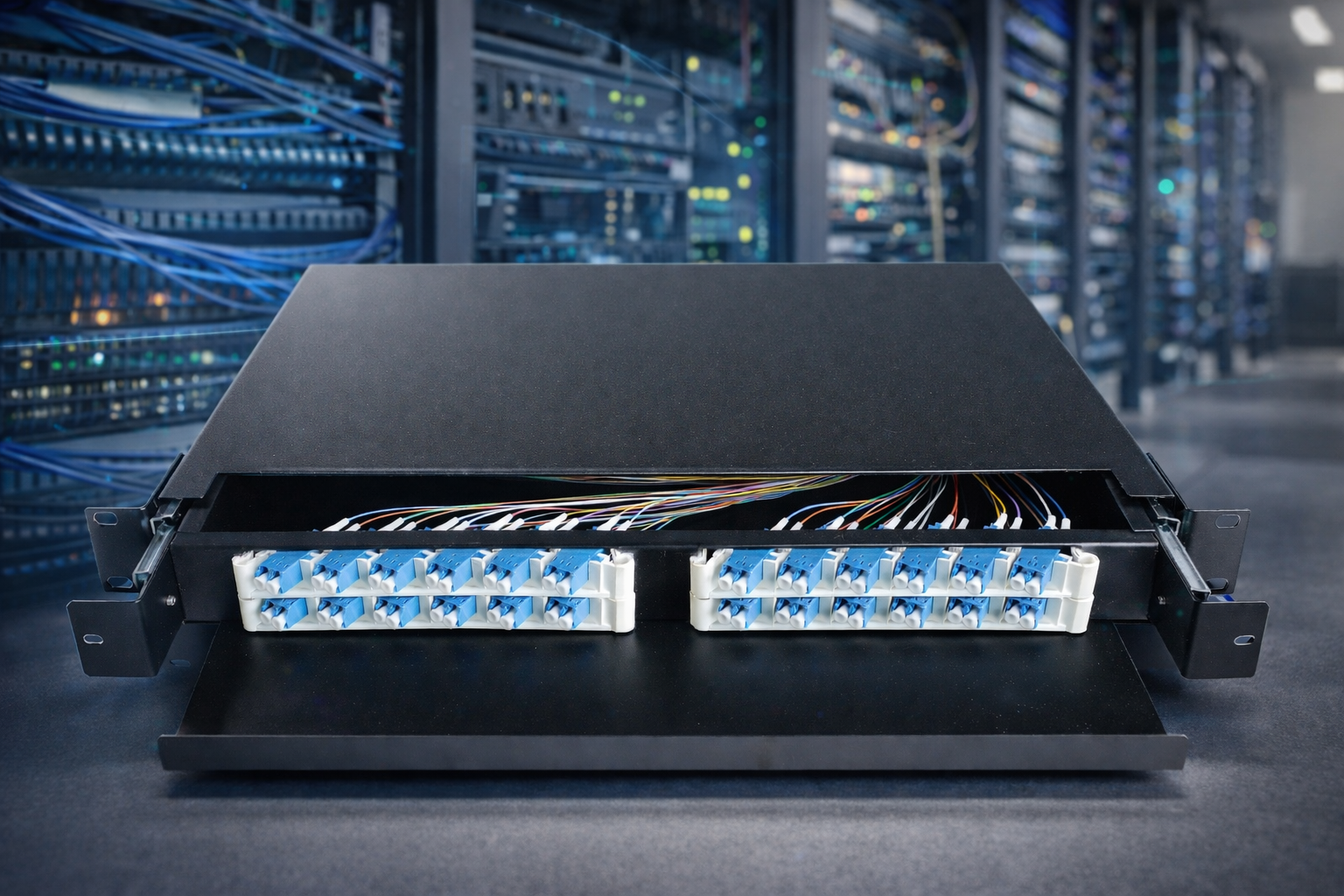

30 degree angled 24 port LC duplex single mode fiber patch panel
In fiber optic networks—from the central office to the final subscriber (FTTH)—efficient, reliable, and organized fiber management is non-negotiable. Whether you need a compact enclosure for a field splice point or a high-density panel for a data center rack, the core requirements remain the same: protect delicate fibers, ensure proper bend radius, and allow for easy access for maintenance and testing.
WB-FPP-24LC-30D is a high-performance solution designed for efficient and organized fiber optic connectivity in network infrastructures, ranging from 12 ports to 48 ports.
Built to accommodate 24 LC duplex connections, this patch panel facilitates seamless integration of single-mode fiber optics, ideal for high-speed data transmission over long distances.
Features
1. SlidingTray modules for esay accessing.
2. SPCC cold rolled sheet housing
2. 19 inch standard rack-mountable structure
3. 30 degree angled connector direction
4. Lightweight, and a robust structure
5. 4 of φ30mm cable entry at rear side
6. Support LC, SC, FC, ST (simplex/duplex)adapters
Special Details
The heart of our rack-mount solution is compatibility with standard F-type adapter plates. This system allows you to:
Mix and Match: Populate a single frame with different adapter types (e.g., LC for backbone, SC for distribution).
Easy Upgrades: Replace an entire plate in minutes as technology or connectors change.
Maximize Density: Use 24-port LC plates for ultimate fiber density in a compact space.
Technical details
Material | SPCC Steel and ABS plastic |
Finished product | black appearance |
Cassette (splices trays) | 1-cassettes |
Cable input | 4 cable entry ports |
Adapters | 30 degree FC , others available |
Working temperature | -40℃ ~ + 60℃ |
Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
Curvature radius | ≥40mm |
Extra loss in the splice tray | none |
Lateral pressure-resistance | 500N |
Resistance | 750N |
Ordering
Model | Description |
WB-FPP-24LC-30D | 1U 24 Fiber LC Patch Panel - 24 Duplex LC SM Adaptors , Angled |
Application
End-to-End FTTH Network Deployment
LAN/WAN
CATV
Telecommunication subscriber loop
Contact our technical sales team today to discuss your project !
