24-Port 1U Cat6A STP Feed-Through Patch Panel | 19" Shielded RJ45 Inline Coupler Panel - WebiT

1U 24-Port STP Blank Patch Panel – Professional Network Organization Solution

Modern data centers and enterprise network closets demand maximum bandwidth, high port density, and minimal deployment downtime. Traditional 110-IDC punch-down patch panels require tedious manual terminations that are prone to wiring faults, split pairs, and inconsistent performance at high frequencies.

The WebiT® Cat6A STP 24-Port Feed-Through Patch Panel solves these bottlenecks by introducing a high-reliability back-to-back RJ45 coupler architecture. Meeting and exceeding ANSI/TIA-568.2-D and ISO/IEC 11801 Class $E_A$ channel specifications, this panel operates smoothly at swept frequencies up to 500 MHz, effortlessly carrying 10 Gbps Ethernet data streams.

Each port is fortified with a full 360° zinc-alloy die-cast shielding frame and backed by an integrated heavy-duty ground wire to completely suppress Alien Crosstalk (ANEXT) and electromagnetic noise. Whether you are scaling top-of-rack (ToR) switching, building high-reliability medical network backbones, or managing high-power PoE++ wireless access points, WebiT provides an enterprise-grade, future-proof copper cross-connect platform.

Features

• 100% Toolless Plug & Play Deployment:

  Eliminates the need for 110 or Krone impact punch-down tools. Simply plug RJ45 male patch cords into both the front and rear ports. Cuts on-site installation and field testing time by up to 70%.

• 10GBASE-T Performance at 500 MHz:

  Engineered specifically for Category 6A 10 Gigabit networks. Fully backward compatible with Cat6, Cat5e, and Cat5 structured cabling, ensuring seamless phased network upgrades.

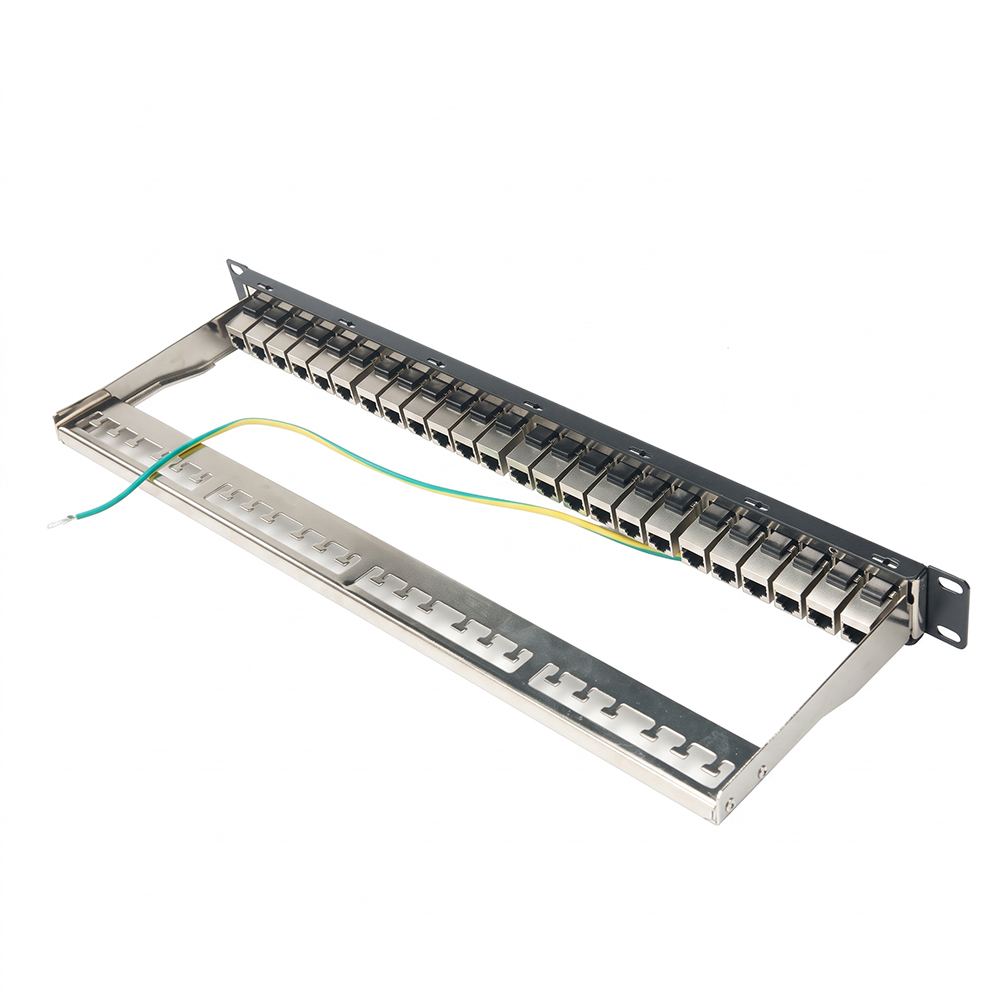

• 360° Die-Cast Shielding & Grounding:

  Each RJ45 inline coupler is enclosed in robust zinc-alloy die-cast housing. Coupled with an integrated 18 AWG ground wire, it establishes an impenetrable Faraday shield against external RFI/EMI interference and internal channel crosstalk.

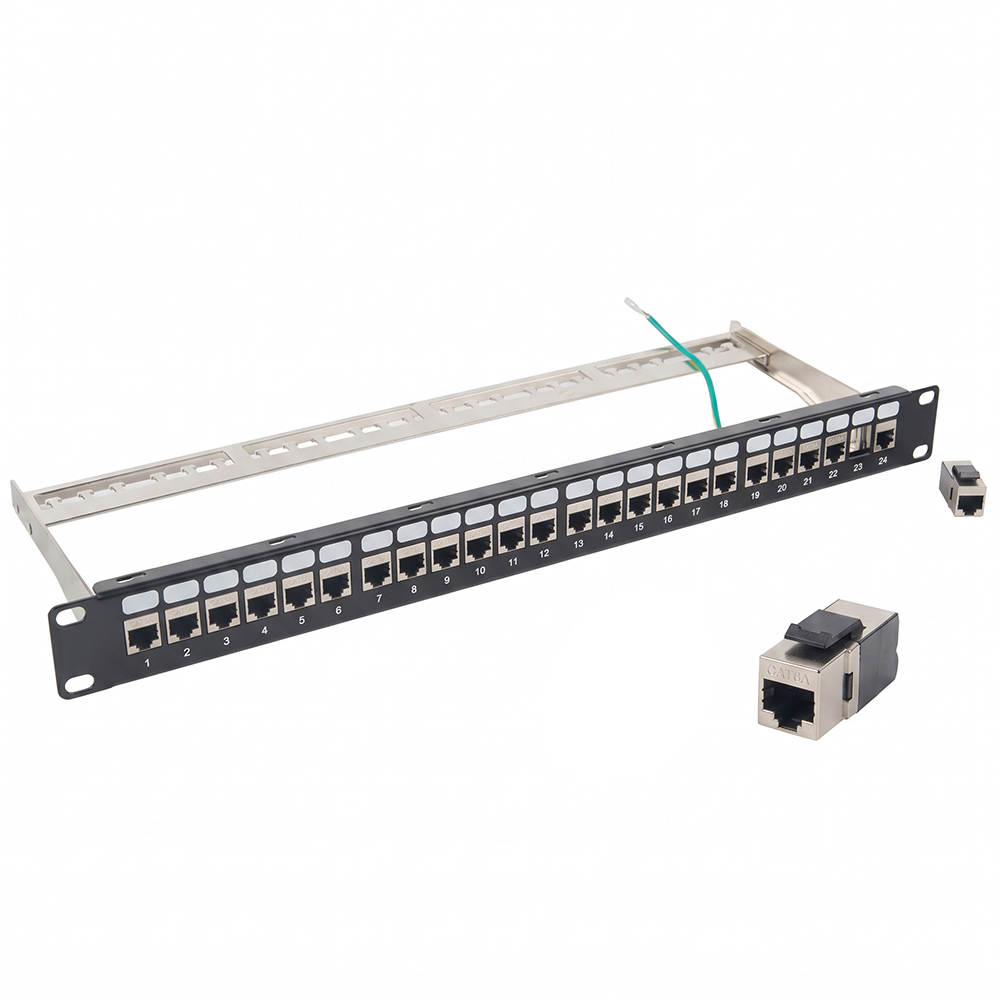

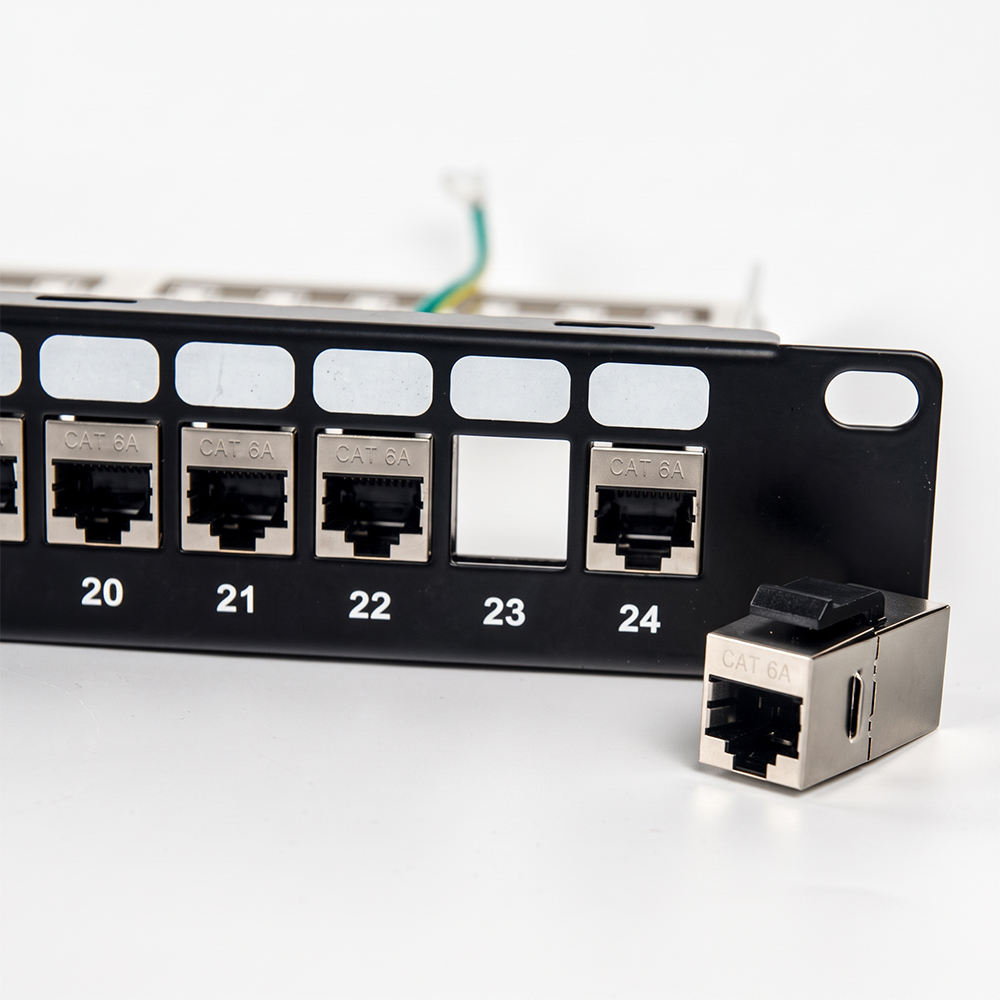

• Modular Snap-In / Snap-Out Couplers:

  Couplers can be effortlessly snapped out without tools, enabling instantaneous port swaps, field reconfiguration, and simplified Moves, Adds, and Changes (MACs).

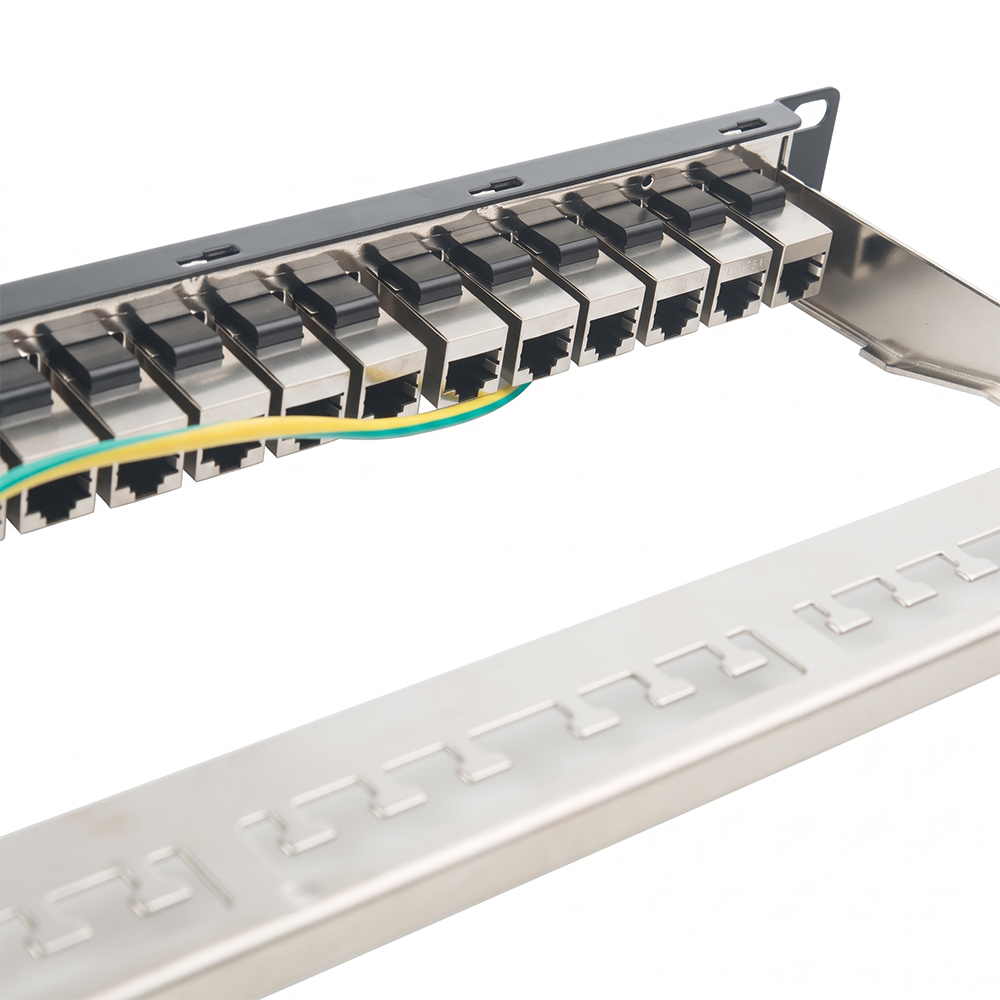

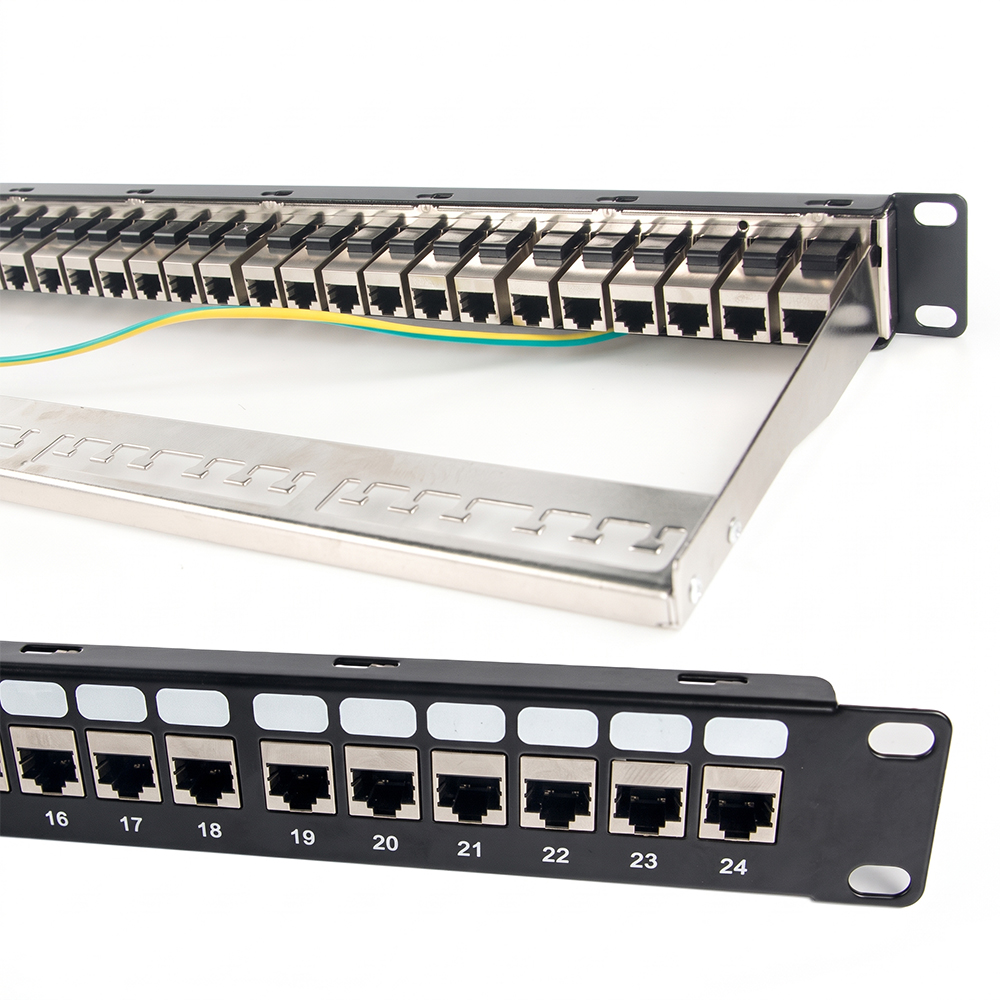

• Detachable Cable Strain-Relief Management Bar:

  Includes a sturdy rear steel bracket with integrated anchor slots for cable ties, maintaining proper bend radius and relieving mechanical strain on switch and patch ports.

• High-Power PoE++ Ready (IEEE 802.3bt Type 3 & 4):

  Capable of delivering up to 90W–100W DC power over Ethernet, perfect for PTZ security cameras, Wi-Fi 6/6E/7 access points, VoIP video phones, and smart building automation.

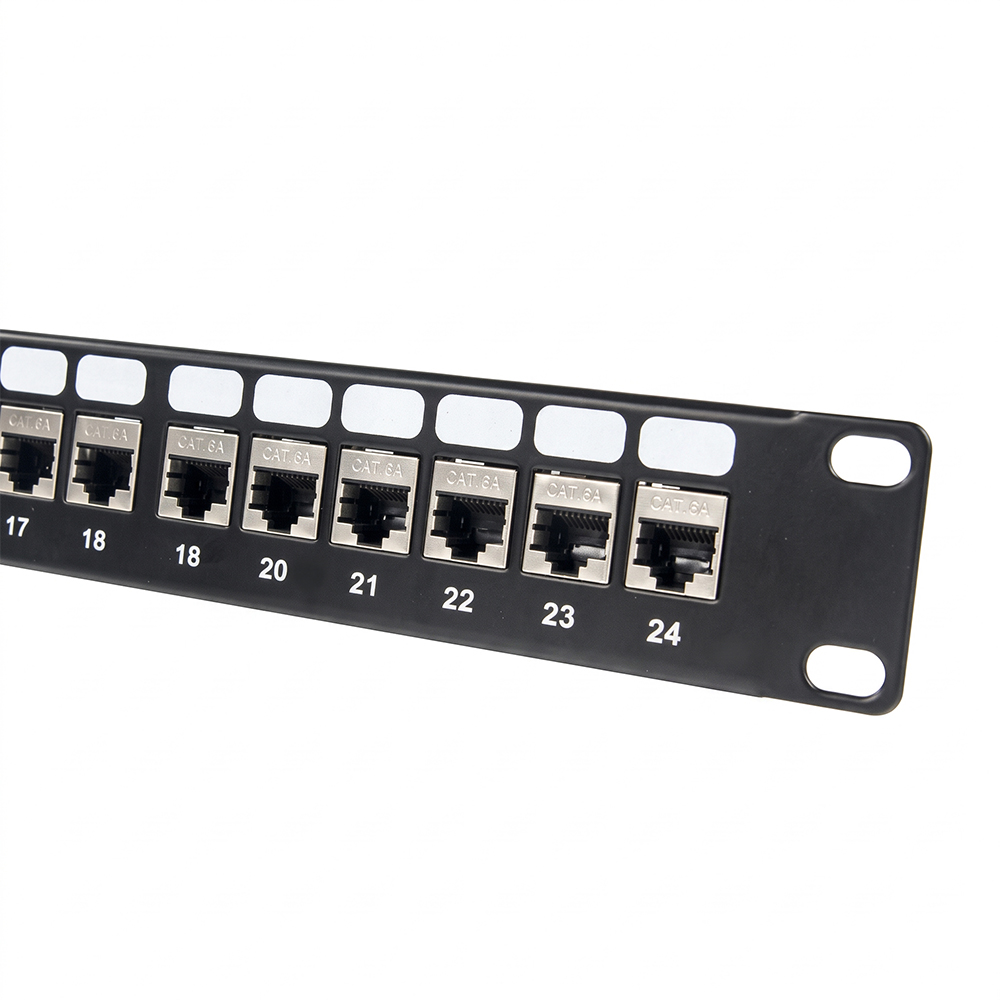

• Crystal-Clear Port Identification:

  Features prominent 1–24 numerical sequencing on both front and rear faces, plus integrated write-on labeling fields and optional color-coded icon inserts for rapid port tracing.

Technical Details

Application

• Cloud Computing & Hyperscale Data Centers

• Healthcare & Laboratory IT Systems

• Government & Financial Institutions

• Broadcast & Audio/Video Over IP (AVoIP)

• Smart Commercial Enterprise Buildings

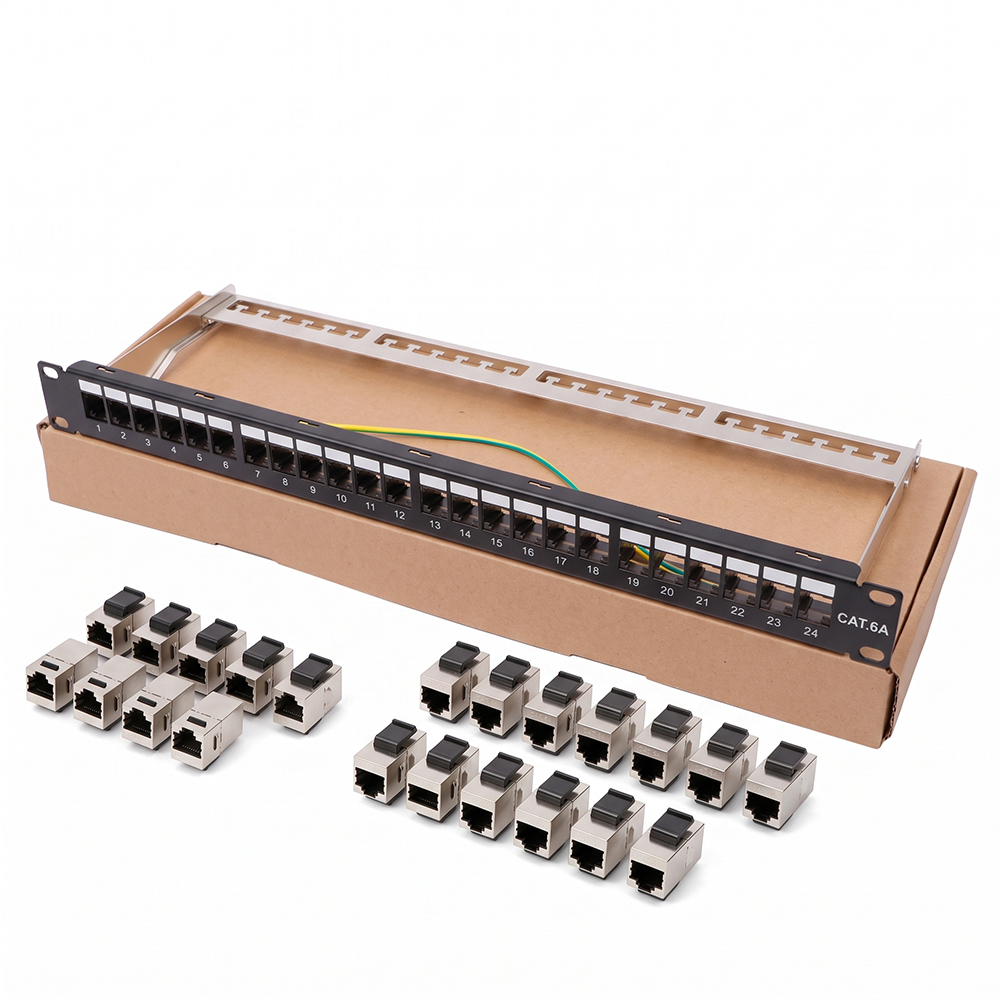

Packing photos

12 port Network patch equip with 4*screws , 4*cable ties

24 port Network patch equip with 4*screws , 8*cable ties

48 port Network patch equip with 4*screws , 10*cable ties

FAQ

Q1: What is the main difference between a feed-through patch panel and a traditional punch-down panel?

A: A traditional patch panel requires a 110 or Krone punch-down tool to terminate raw solid-core twisted pairs into IDC terminals on the back. A feed-through (coupler) patch panel features female RJ45 jacks on both the front and rear, allowing you to connect pre-terminated, factory-tested RJ45 patch cables directly. This eliminates wiring mistakes, maintains cable pair geometry, and dramatically reduces field labor.

Q2: Does using an inline coupler degrade the 10Gbps signal or introduce insertion loss?

A: No. WebiT's Cat6A STP couplers are engineered with high-frequency multi-layer PCB compensation circuits, precision phosphor bronze contacts, and heavy 50µ" gold plating. They fully meet ANSI/TIA-568.2-D Class $E_A$ Channel requirements up to 500 MHz, ensuring zero packet drops and full 10GBASE-T line-rate throughput.

Q3: Is this shielded panel compatible with unshielded (UTP) Cat6 or Cat5e cables?

A: Yes. The RJ45 interface is universally backward-compatible with Cat6 and Cat5e patch cords, whether shielded (STP/FTP) or unshielded (UTP). When unshielded cables are connected, the system operates in unshielded mode; when shielded cables and grounding are used, full 360° EMI protection is activated.

Q4: Can I replace an individual coupler if a port is damaged or if I need fiber/keystone jacks?

A: Absolutely. The 24 couplers utilize standard keystone snap-in dimensions. You can pop out any individual coupler without taking down the entire panel and replace it with another Cat6A STP coupler, HDMI keystone, or LC/SC fiber optic keystone adapter.

Q5: Is the rear cable management bar included in the package?

A: Yes. Every unit includes a detachable, powder-coated steel rear cable management bar with cable tie tie-down slots, an 18 AWG ground wire, heavy-duty nylon cable zip ties, and a set of 4 $\times$ M6 rack screws and cage nuts for immediate installation.
