| Model: | WB-PDU-04-3UK4A |
| Place of Origin: | Ningbo |
| Application: | Commercial |
| Grounding: | Standard Grounding |
| Type: | Plug with Socket |
| Brand Name: | Webitelecomms |
| Rated Voltage: | 220~250V |
| Rated Current: | 13A |
| Certificate: | CE,ROHS |
| Body materials: | Aluminum shell+ ABS model |
| Height: | 1.0U |
| Input: | BS1363 |
| Output: | BS1363 + USB-A |
| Max watt: | 3250W |
| Quantity: | |
|---|---|
WB-PDU-04-3UK4A
Webitelecomms
Overview

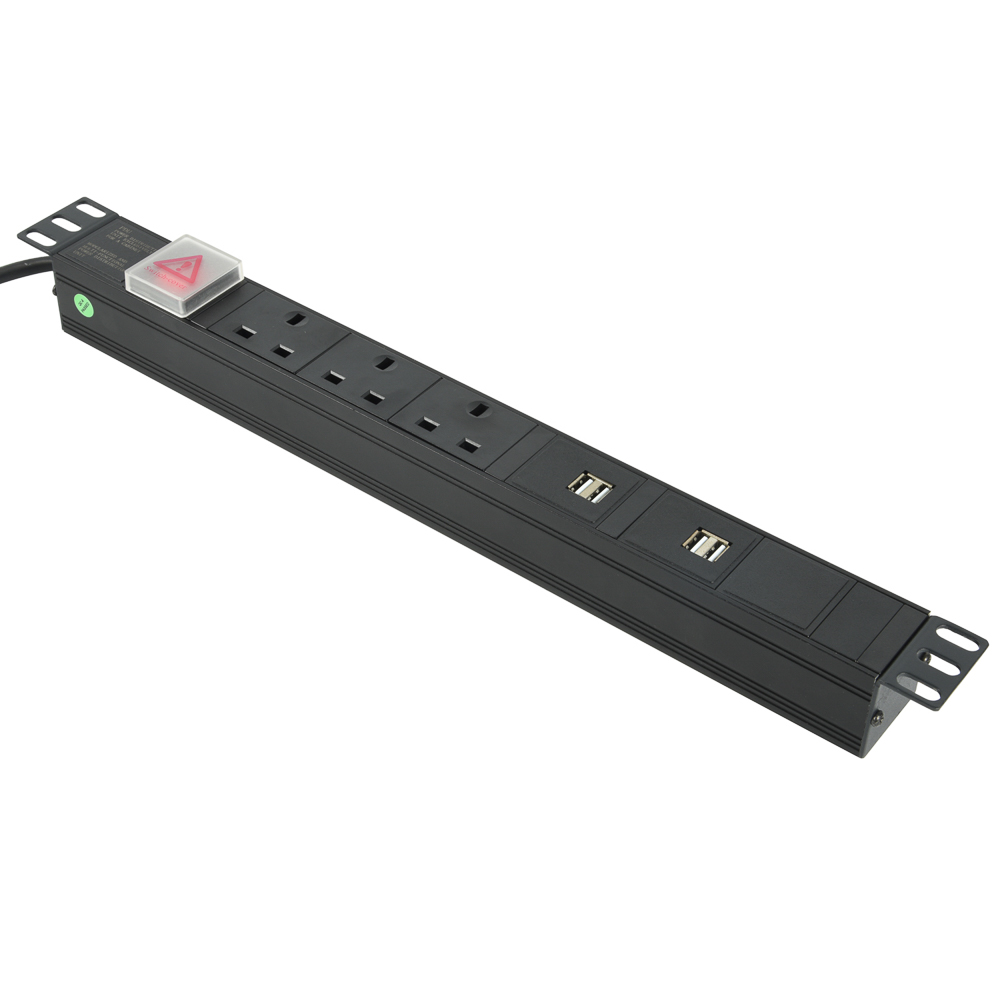

The Webitelecomms 1U Rack PDU with UK Sockets and USB Outlets solves this by integrating essential AC and DC power distribution into a single, sleek, and secure unit. Designed for horizontal 19-inch rack mounting, this PDU doesn't just distribute up to 3250W of reliable power; it also provides dedicated 5V/2A USB ports, eliminating the need for bulky external USB adapters cluttering your rack. Built with an aluminum alloy shell, comprehensive electrical protections, and child-safe shutters, it is the intelligent power foundation for your critical equipment.
Features
Integrated 220VAC+5VDC Power.
Built-in leak-current protector, fused design, child safety shutters and a standard earthing contact.
1U height, horizontal 19-inch design with pre-attached mounting ears.
Enclosure made from lightweight sturdy ALUMINUM-ALLOY alloy.
On/Off switch with Neon lights.
Customizable to meet specific Demands.
Specifications
Detailed technical data for informed procurement and deployment planning.
| Category | Specification Details |
| General | Model: WB-PDU-04-3UK4A |
| Mounting: Standard 19inch Rack (1U height) | |
| Shell Material: Aluminum Alloy | |
| Module Material: Flame-Retardant PC | |
| Protection Rating: IP44 | |

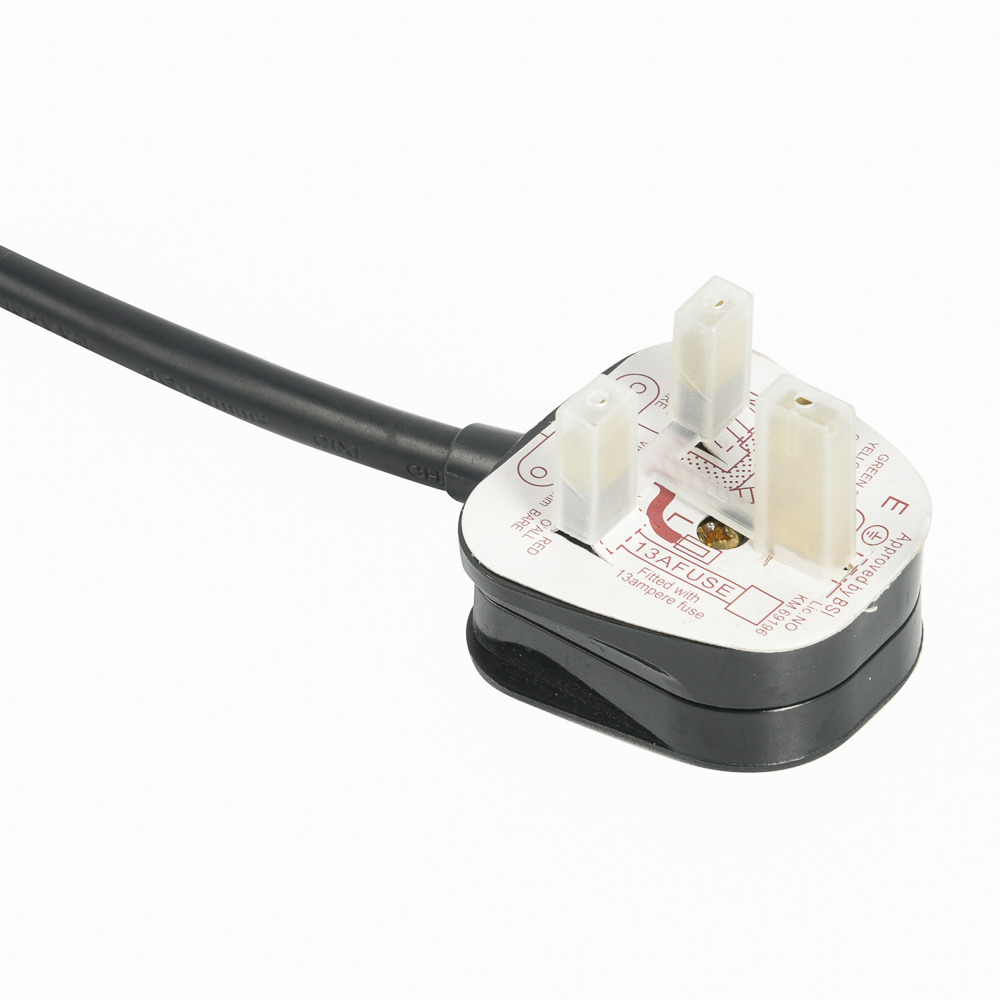

| Power Input | Plug: UK BS1363 (13A,220~250V) |
| Input Cable: H05VV-F 3G x 1.5mm², 2-meter length (Standard) | |

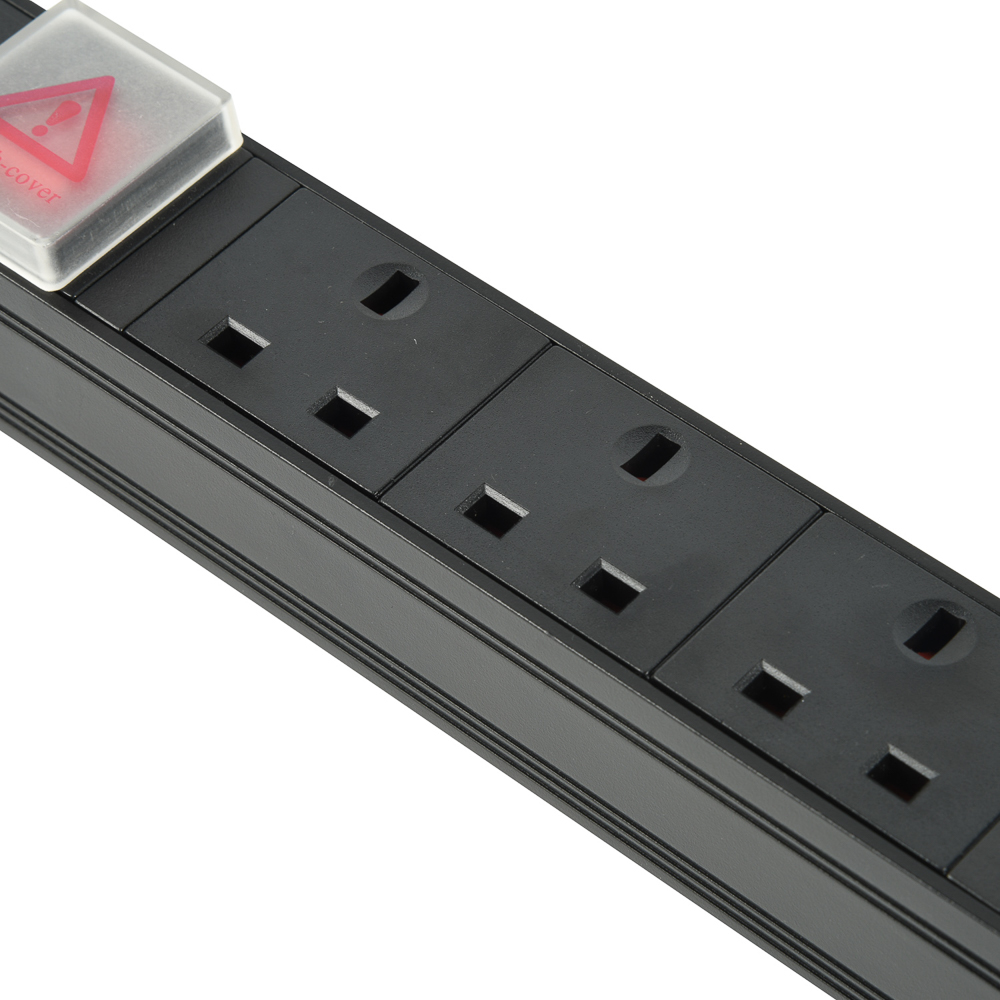

| Power Output | AC Outlets: 3 x UK BS1363 Sockets (90°) , (13A,220~250V) |

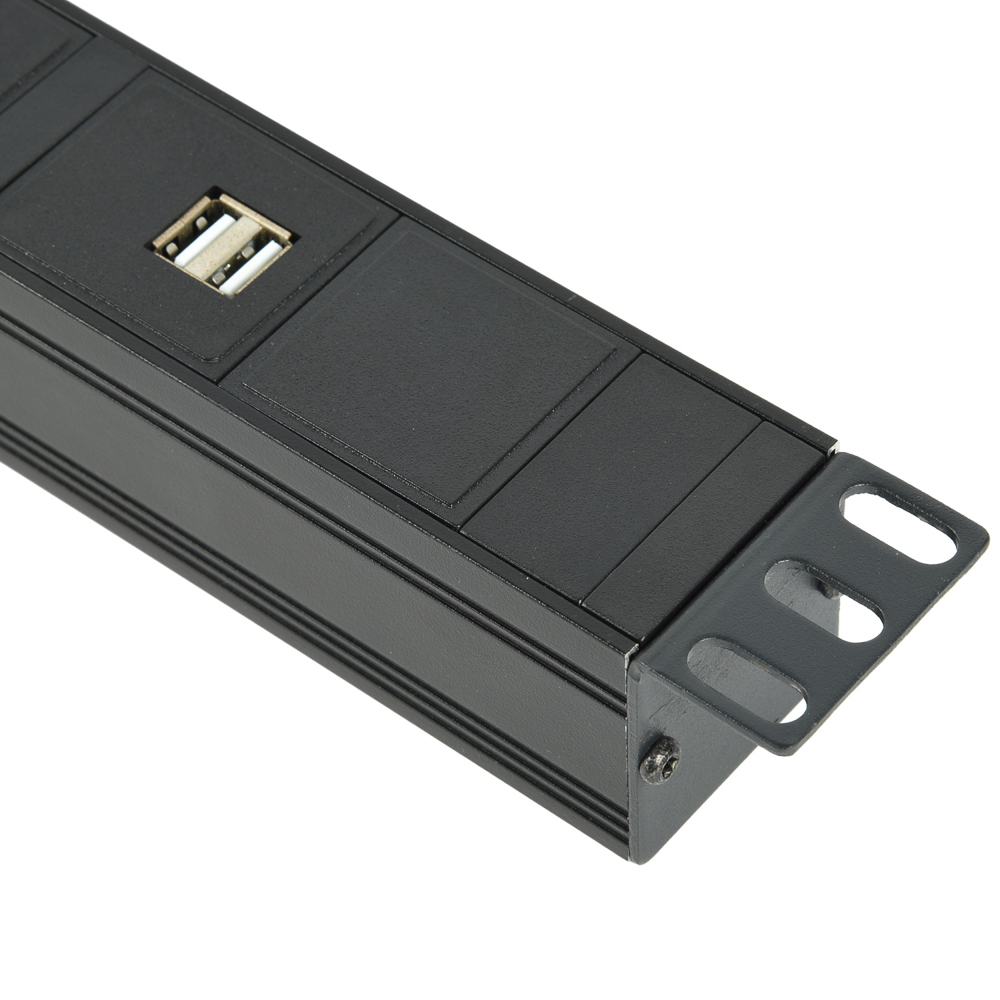

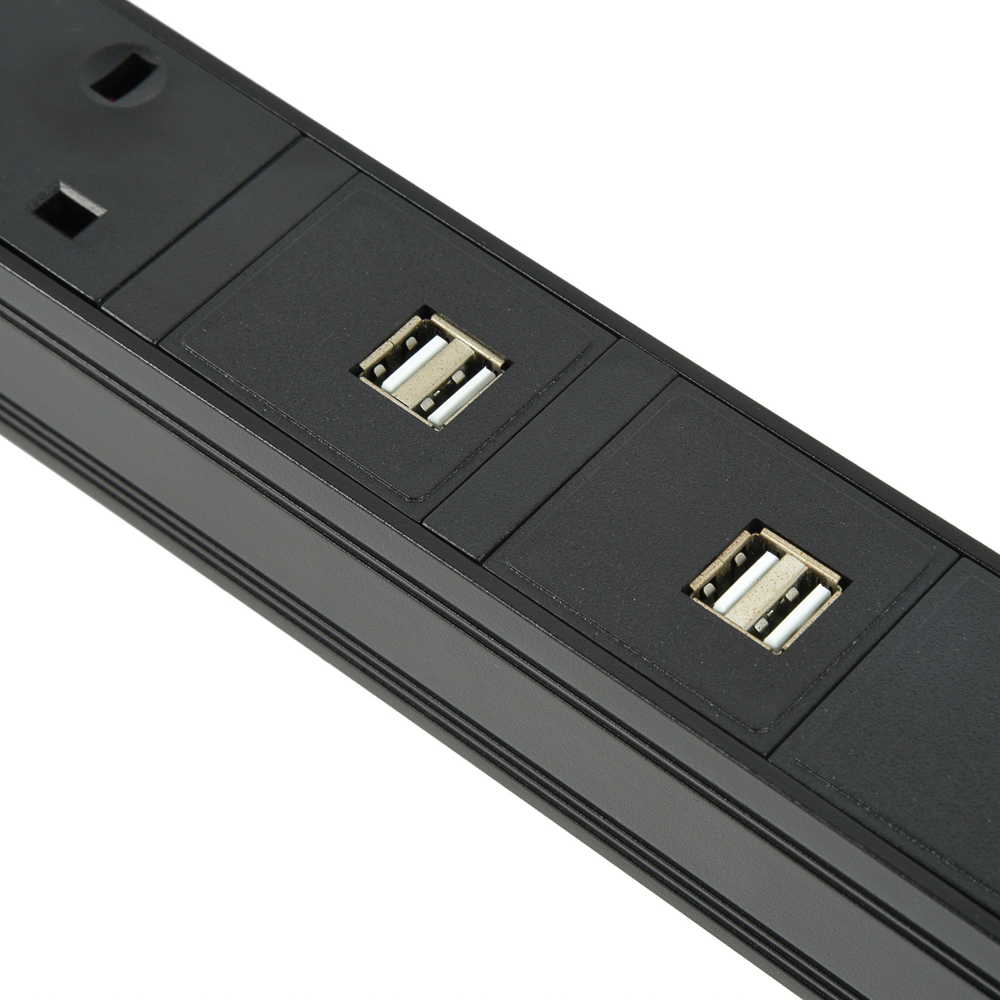

| DC Outlets: 4 x USB-A Ports (5VDC,2.1A) | |
| Safety Features | Fused, Child Safety Shutters, Standard Earth Contact. |

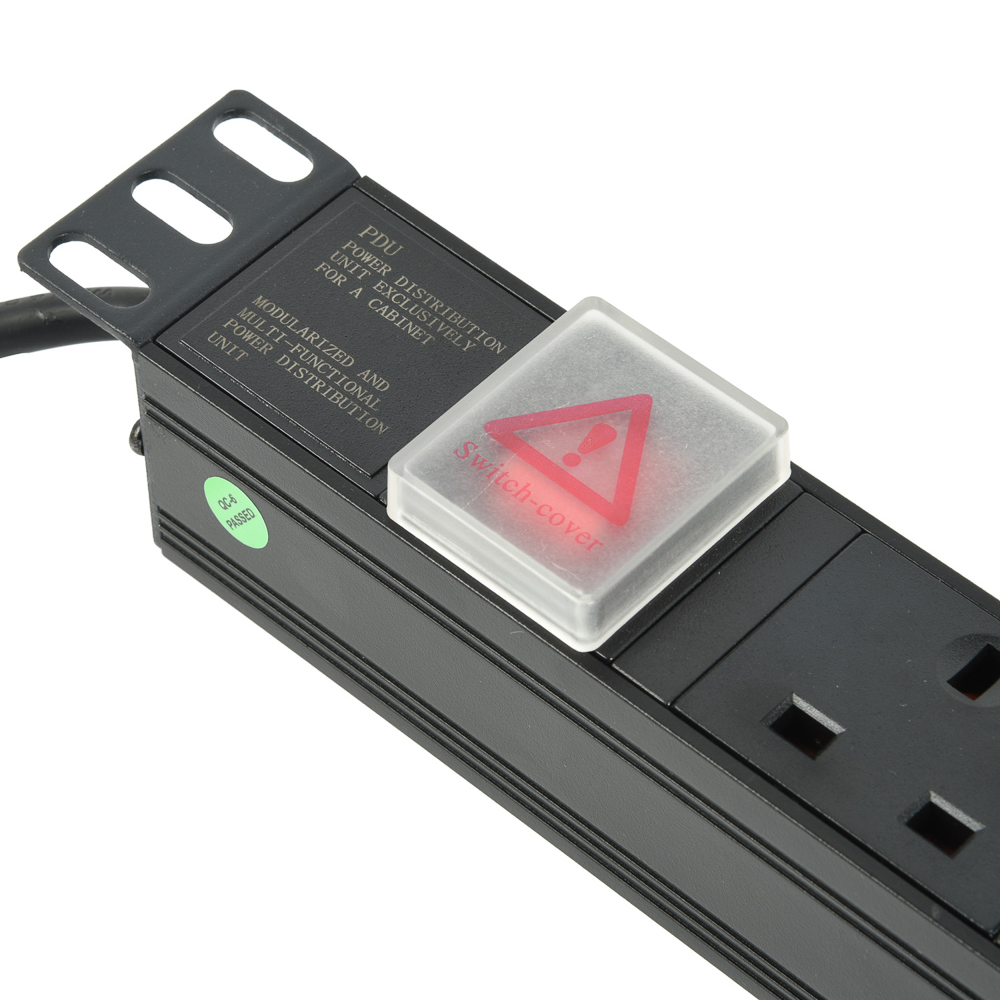

| Switches | ON/OFF switch with Neon Power Indicator Light. |
| Connection Type | Welded-solder connections for long-term reliability. |
| Optional functions | 3-lights protection ( Fault light, work light, lightning protection） work-light indicator Surge protector AM meter Circuit Breaker Overload protector |
| Cable options | PVC (Default) |
| RUBBER | |
| LSZH | |
| Shell Options | Aluminum-Alloy (Default) |
| Plastic | |
| SPCC (Customized) |
Application Scenarios
This versatile PDU is engineered for reliability across multiple environments.
Scenario 1: Small Business Server Room / Network Cabinet
Scenario 2: Home Lab or Advanced Media Setup
Scenario 3: Retail or Office Security & Communications Cabinet
Packaging (Per Carton)
Carton Size: 52 x 30 x 48.5 cm
Unit Box Size: 52.5 x 7.5 x 5.5 cm
Quantity: 25 pcs
Weight (Alu Shell): Gross 23kg / Net 21kg
Ready to streamline your rack power management?
Contact us today to request a detailed quotation, discuss custom configurations, or place a sample order.
Our team is here to provide the perfect power solution for your setup.
