WB-XGxxxx3NB
Webitelecomms
XG series is engineered for edge deployment, retail branch backrooms, and enterprise telecom rooms, this wall-mount cabinet combines exterior dimensions (600 × 450 or 600 × 600 ) with rugged equipment protection. Its reinforced steel frame and dual-rail structure simplify heavy hardware installation while maintaining clean cable management through multiple knock-down entry plates.

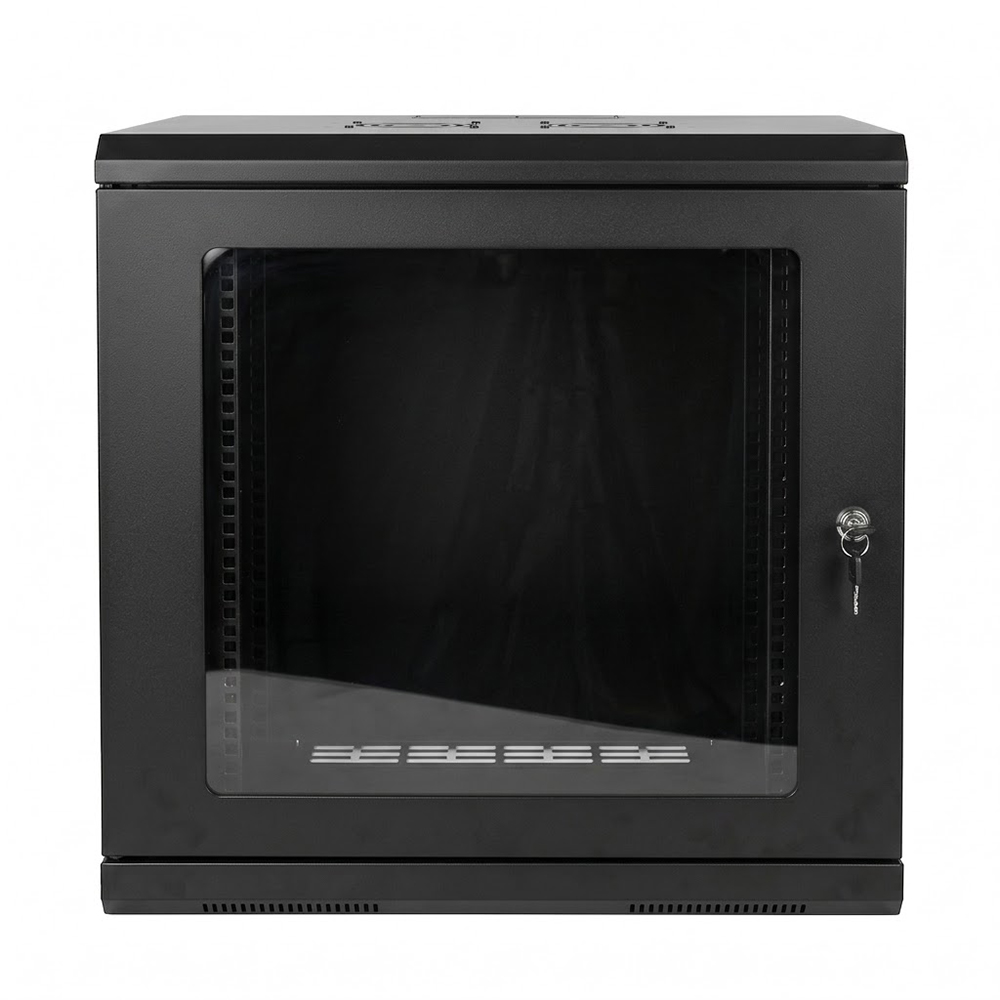

Frame-type glass door with key lock at front .

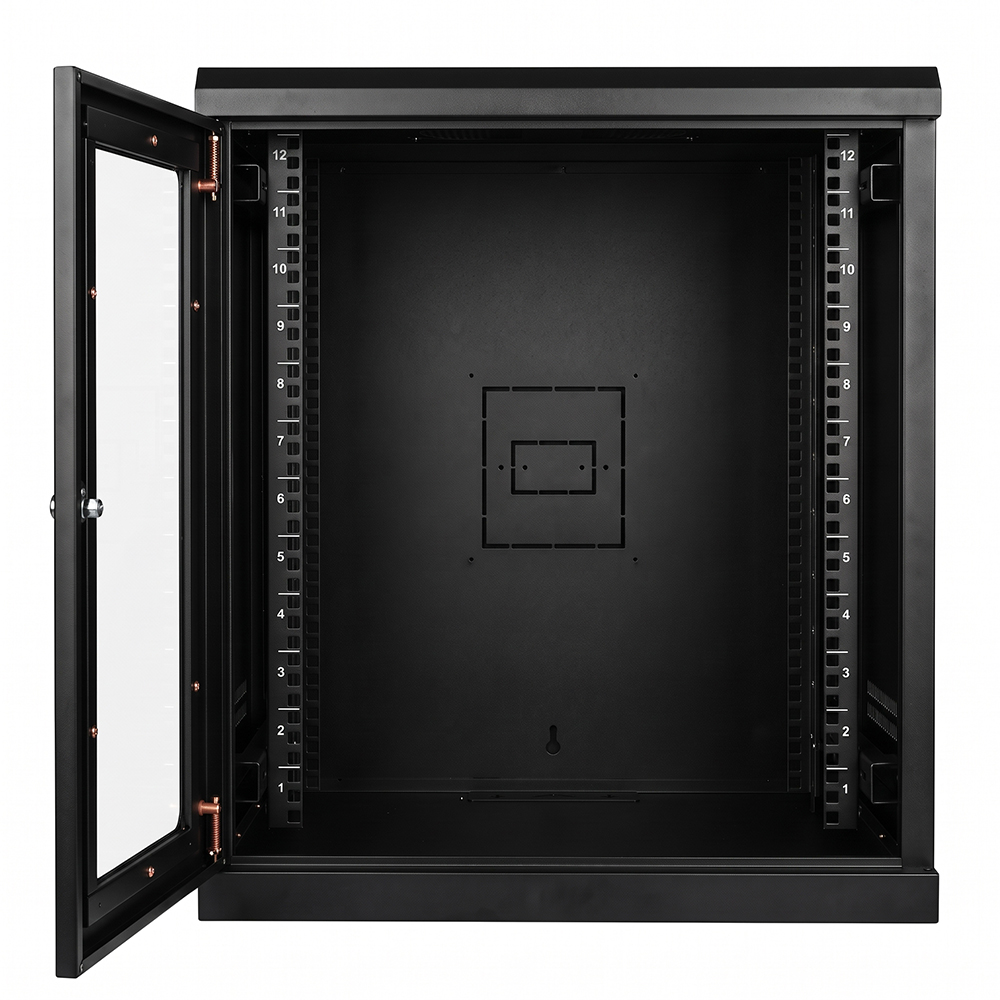

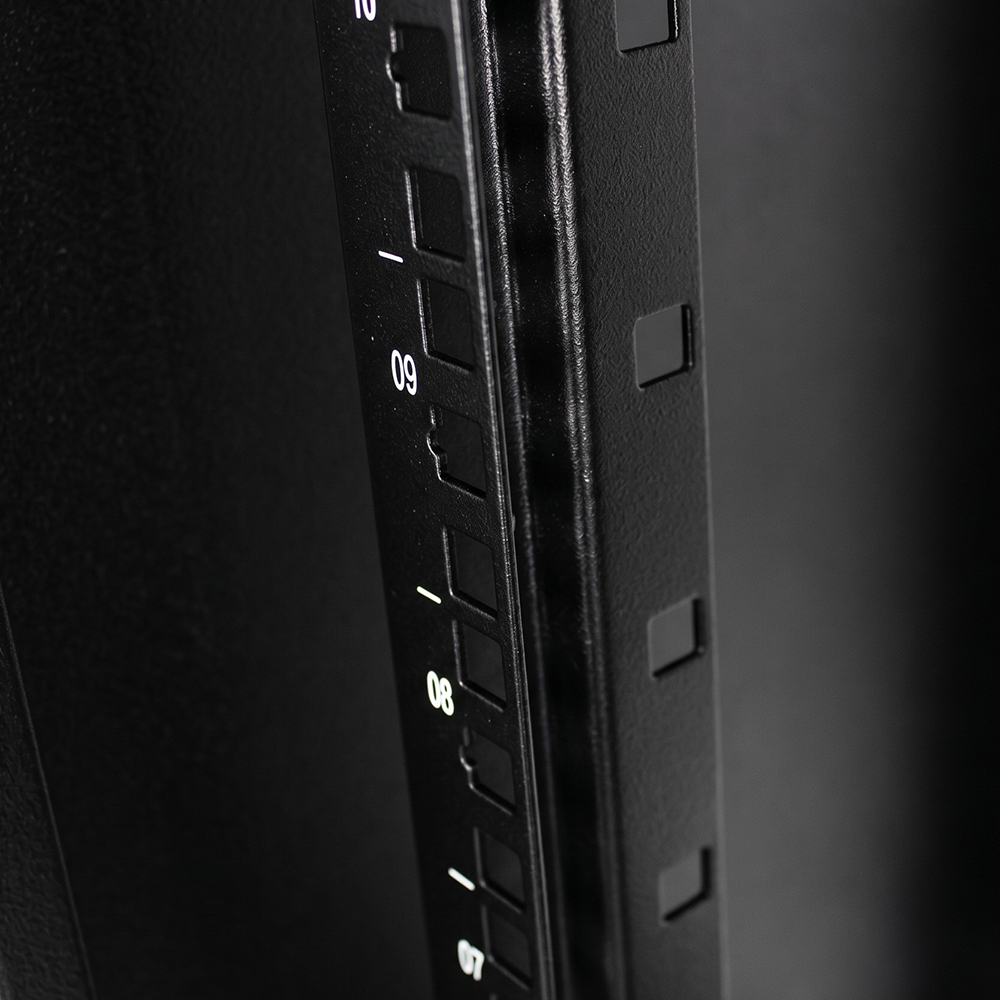

S-shape mounting rails , load upto 80KG at Max.
Mounting prifiles (U-marked) are adjustable on full depth cabinet.
Easy access from cabinet side and maintenance.

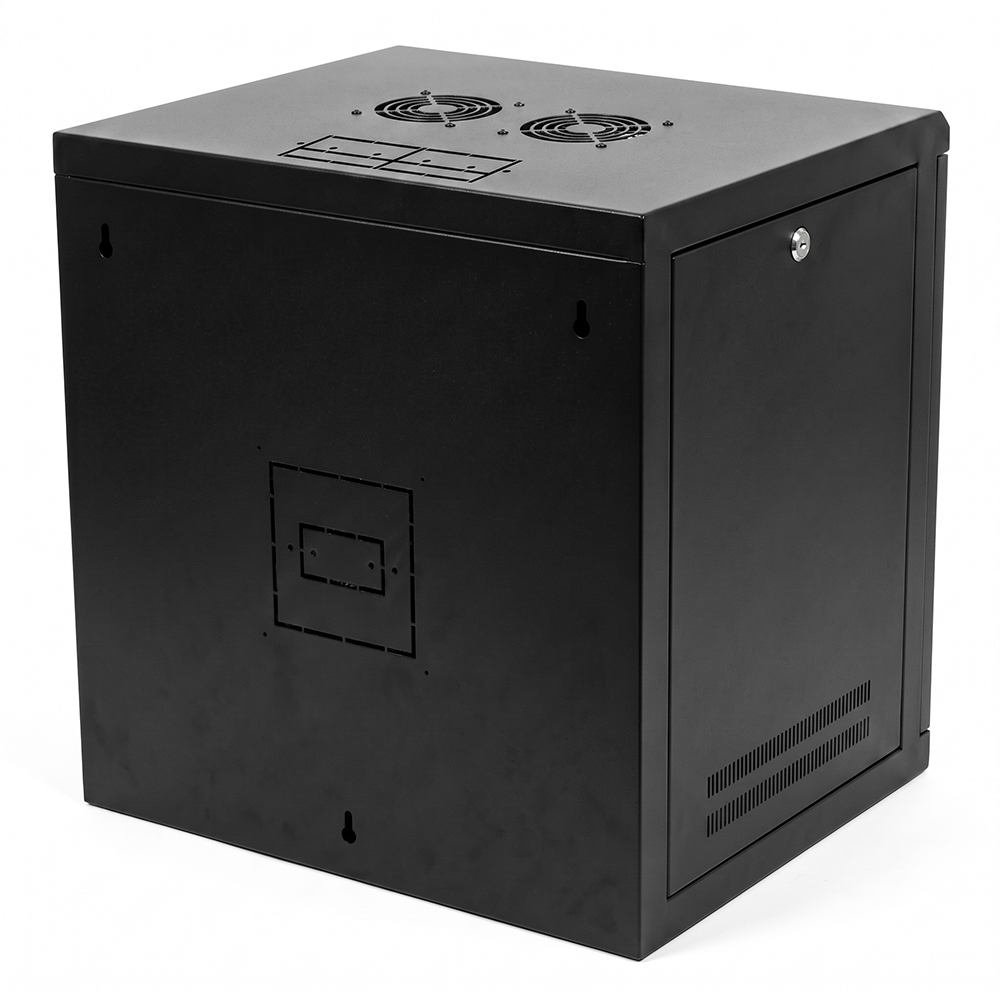

Top&Bottom,rear side knock-down cable entry.
Build-in Grounding cable

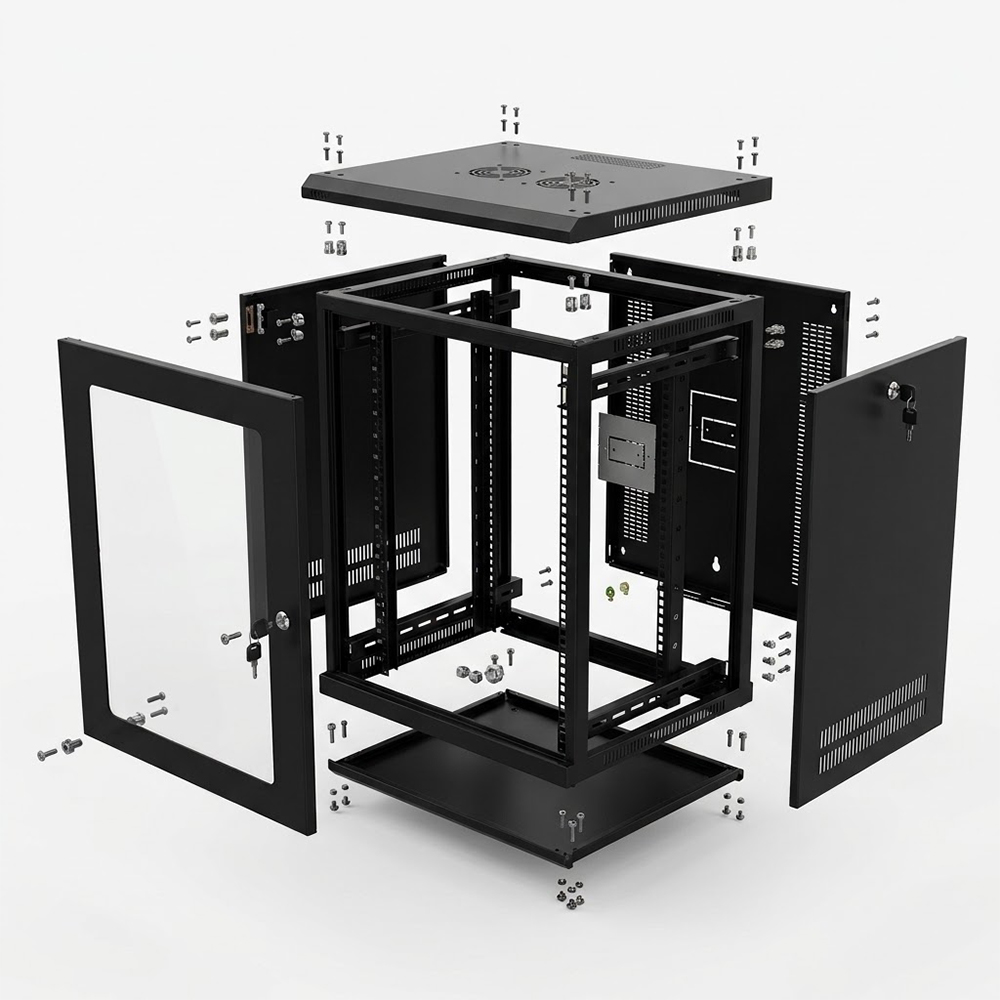

Assemble structure, unpack to play.
Attribute | Specification |
Form Factor | Wall Mount Enclosure |
Standard | Standard 19" Rack-mount (EIA-310-D / IEC 60297-2) |
Dimensions (W × H × D) | 600 mm × 634 mm × 450 mm - sample |
Usable Mounting Depth | Up to 400/550 mm (adjustable) |
Material | SPCC High-Grade Cold Rolled Steel |
Surface Finish | Degreasing, Phosphating, Matte Powder Coat (RAL 9004/RAL 7035) |
Front Door | Toughened Tempered Glass Door with Cam Lock |
Side Panels | Removable Solid Steel Panels with Quick Latches & Locks |

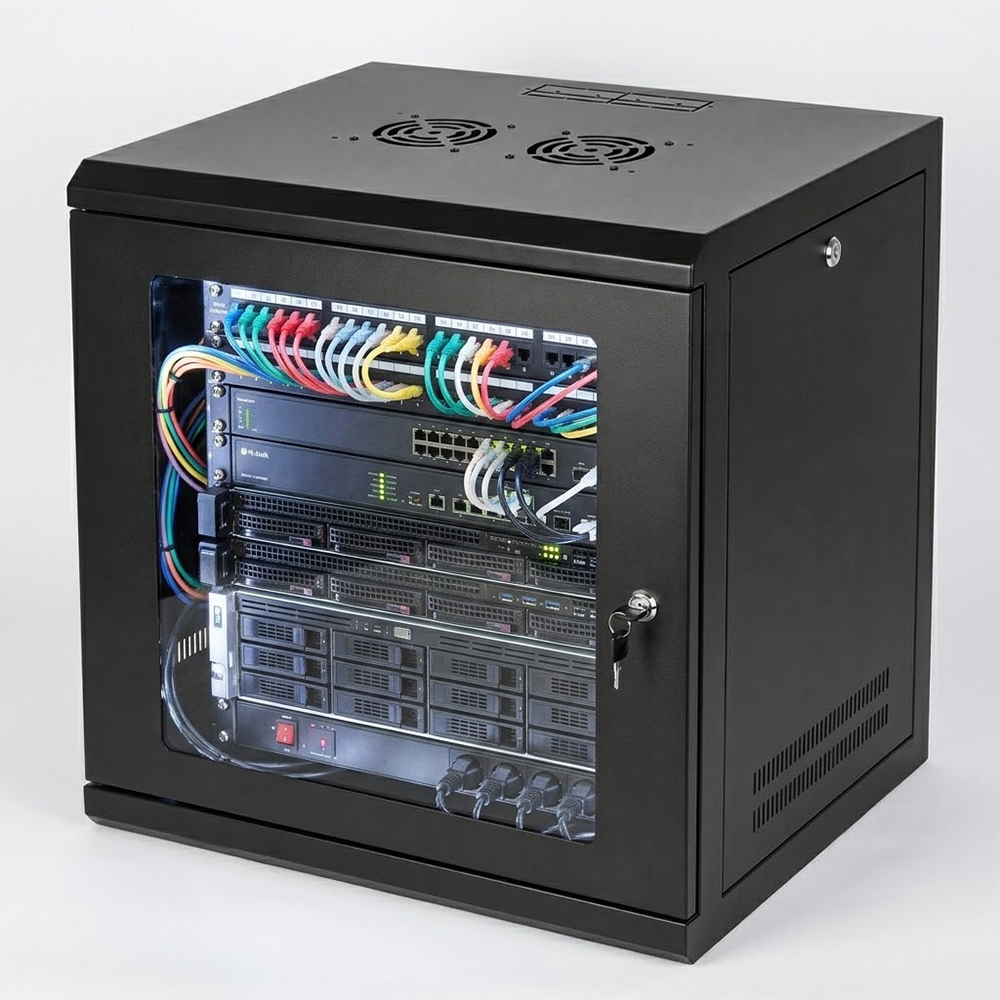

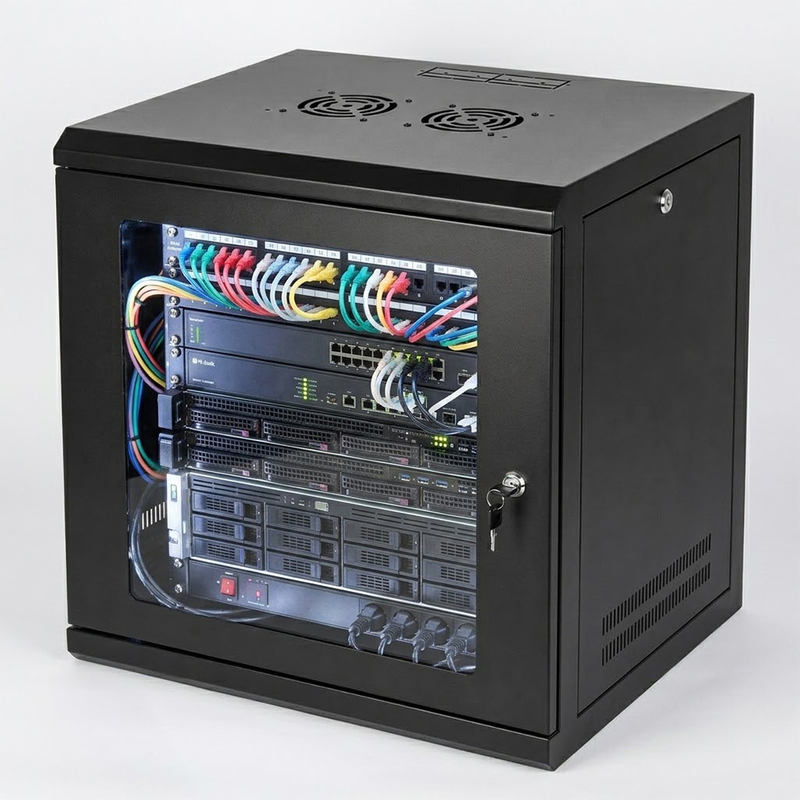

Cooling Setup | Dual 120 × 120 mm Top Fan Cutouts + Side Vents (optional fan) |
Cable Management | Top, Bottom, and Rear Knock-down Cable Entry Ports |
Static Load Rating | 80KG |
Thickness | 1.0mm body + 1.5mm mounting rails |
Structure | Assemble |

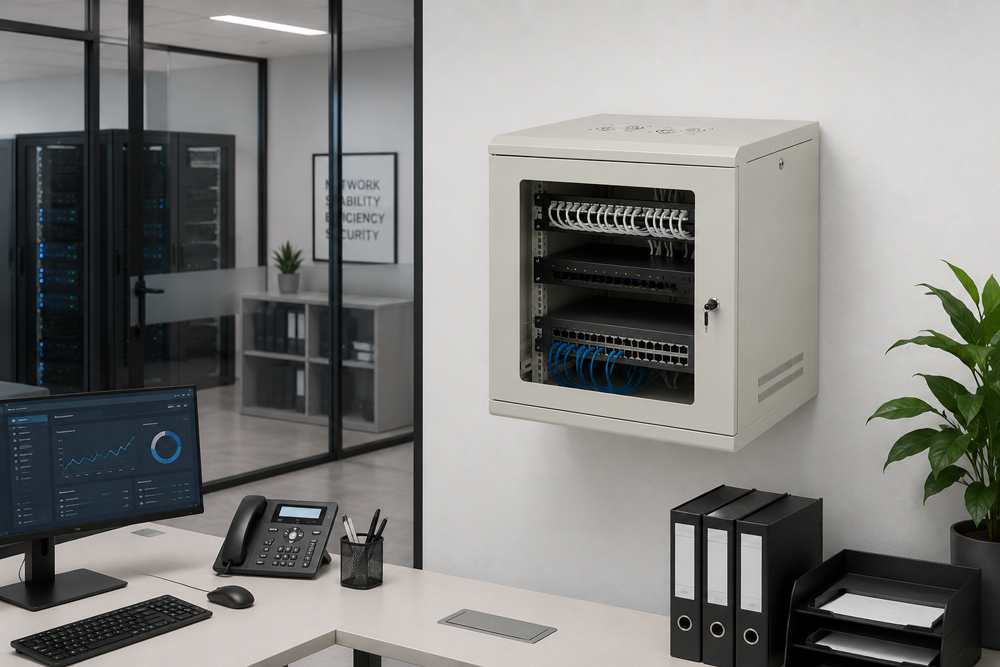

SME Server Rooms & Offices: Consolidate network switches, firewalls, and VoIP gateways in space-constrained workspaces.
Structured Cabling Distribution: Ideal as an intermediate distribution frame (IDF) for multi-floor commercial buildings.
Security & CCTV Systems: Safeguard multi-channel Network Video Recorders (NVRs), PoE switches, and alarm controllers.
Retail & Edge Nodes: Securely host point-of-sale backends and IoT edge processing hardware on branch shop floors.
Q: Can the front glass door swing direction be reversed?
A: Yes, the spring-loaded pivot hinge system allows the front door to be mounted to swing open from either the left or right side.
Q: Are the internal 19-inch mounting rails adjustable?
A: Yes, both the front and rear sets of vertical rails can slide forward and backward along the depth-support brackets.
Q: Are cooling fans included with the unit?
A: The standard cabinet features pre-cut ventilation grids and screw positions for dual 120mm fans; cooling fan units can be pre-installed upon request.
Q: What is included in the standard accessory kit?
A: Each enclosure includes a complete hardware pack consisting of M6 cage nuts, screws, front/side panel keys, and heavy-duty expansion wall bolts.
