WB-SH33044NB
Webitelecomms

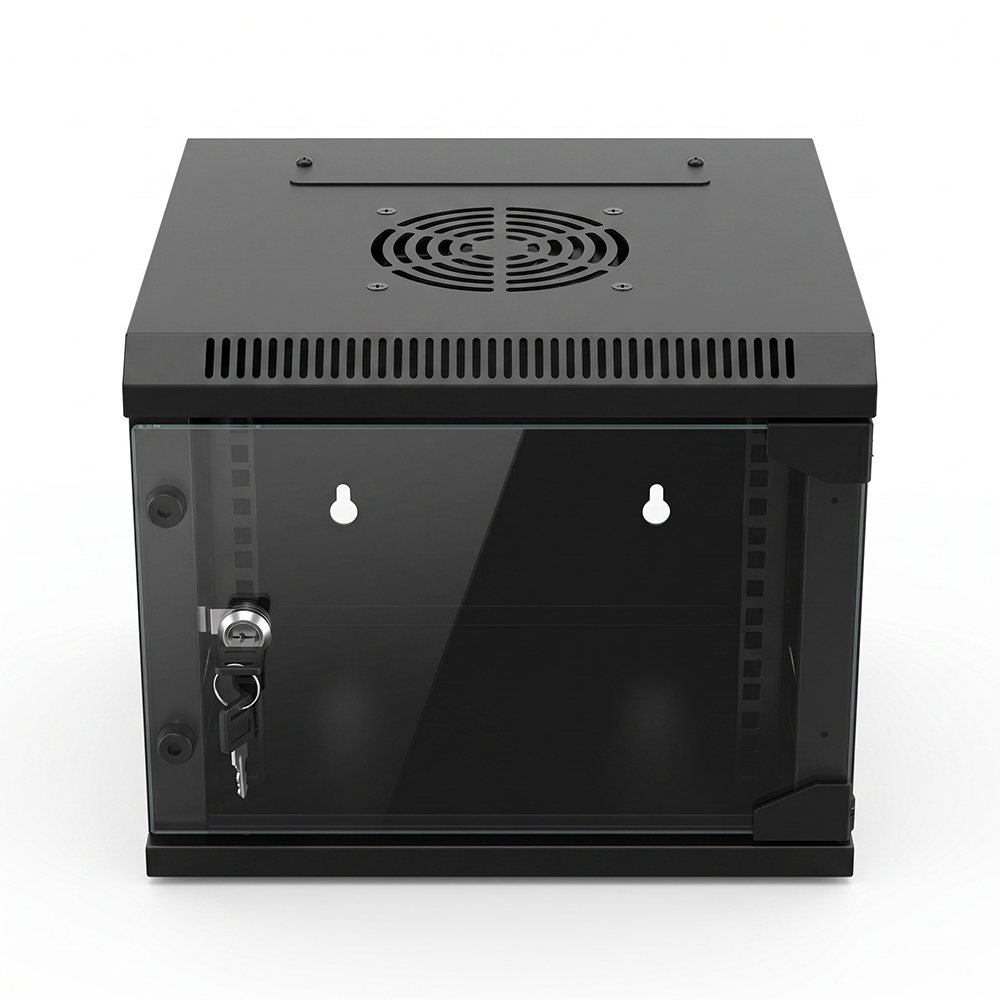

Webit SOHO series Cabinet was designed specifically for modern compact installations, this 4U 10-Inch SOHO Enclosure provides an ultra-durable, organized housing for your mini patch panels, routers, switches, and telecom devices. Constructed from high-grade SPCC cold-rolled steel with a scratch-resistant RAL9005 matte black finish, it combines industrial-strength protection with a clean, low-profile aesthetic.
Compact 10" Construction: Built to fit 10" standard network devices and used in space limited room.
Toughened Glass Front Door: Full glass door allowing easy equipment monitoring without unauthorized access.

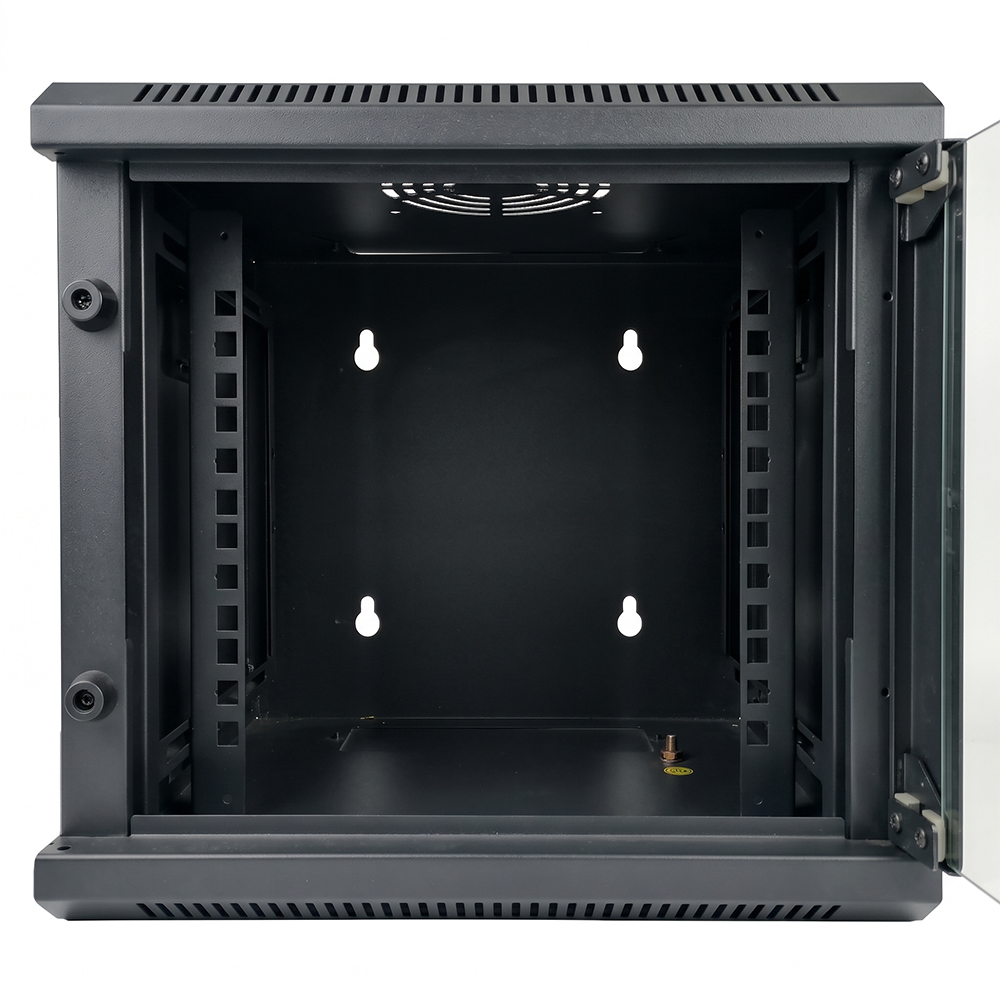

Adjustable Mounting Depth: Dual 10-inch vertical mounting rails can be adjusted forward and backward along top/bottom crossbars to fit equipment up to standard depths.

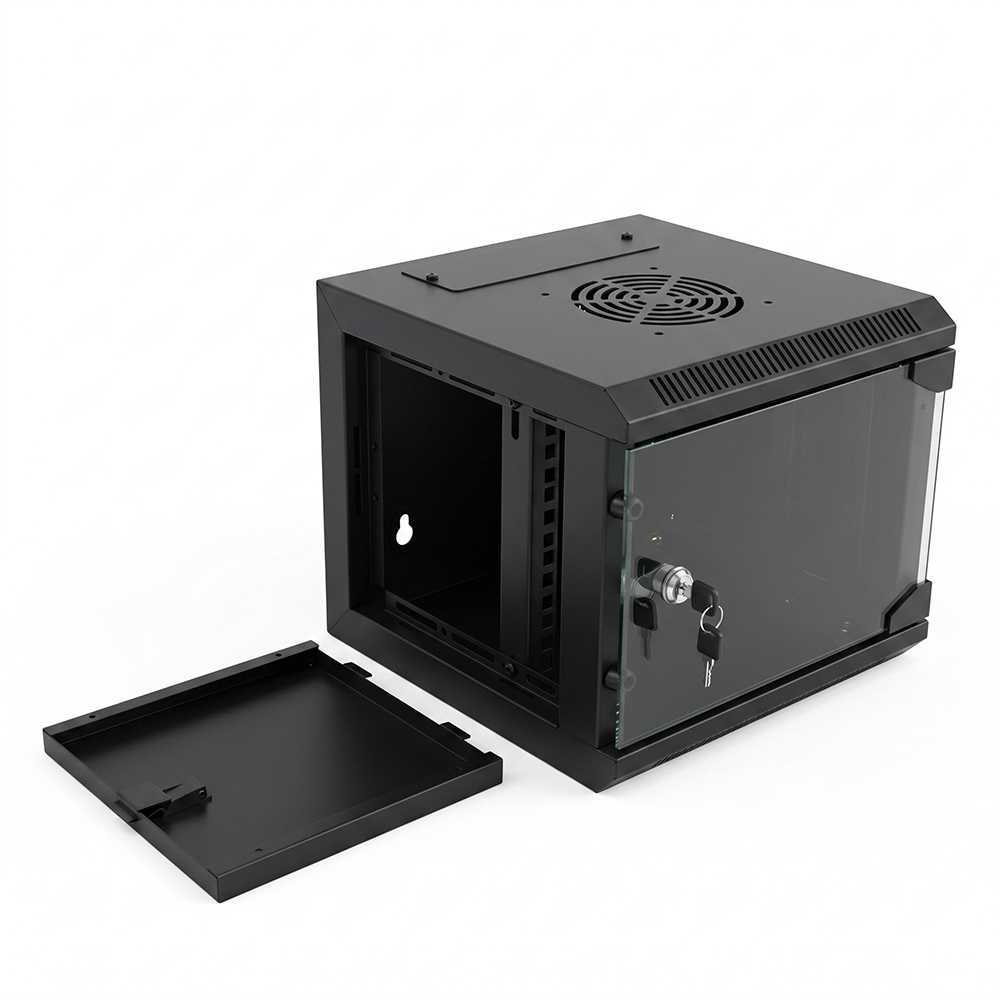

Quick-Release Side Panels: Snap-in ABS side latches enable tool-free side panel removal for fast cabling maintenance and component access.
Cable & Thermal Management: Pre-punched cable entry plates on both the top and bottom (secured via M5 screws) alongside passive airflow vents and a dedicated top fan cutout.

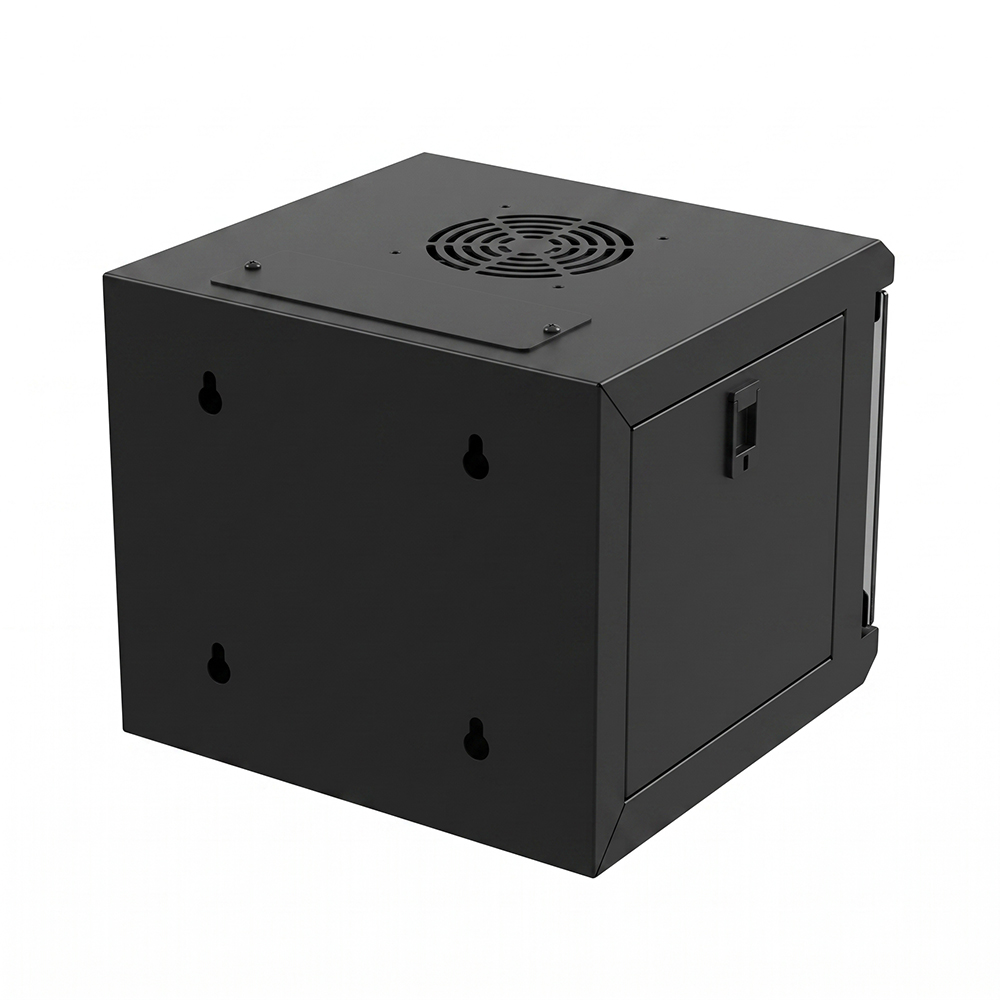

Easy Wall Mounting: Solid rear panel equipped with 4 integrated teardrop (keyhole) wall-mounting slots for straightforward, stable installation.
Specification | Details |
Product Type | 10" Wall Mount Network Enclosure |
Rack Model | WB-SH33044NB |
Dimensions (W × D × H) | 300 mm × 350 mm × 280 mm (4U) |
Material | High-Grade SPCC Cold-Rolled Steel |
Surface Finish | Matte Powder Coating (RAL9005 Black) |
Front Door | Toughened Glass with Cylinder Key Lock |
Side Panels | Solid Steel Panels with Quick-Release ABS Latches |
Rear Panel | Solid Steel with 4 Teardrop Wall-Mount Keyholes |
Cable Management | Top & Bottom Cable Entry Glands (M5 Screw Fastened) |
Grounding | Dedicated Grounding Stud at Internal Bottom Rear |
Target Applications

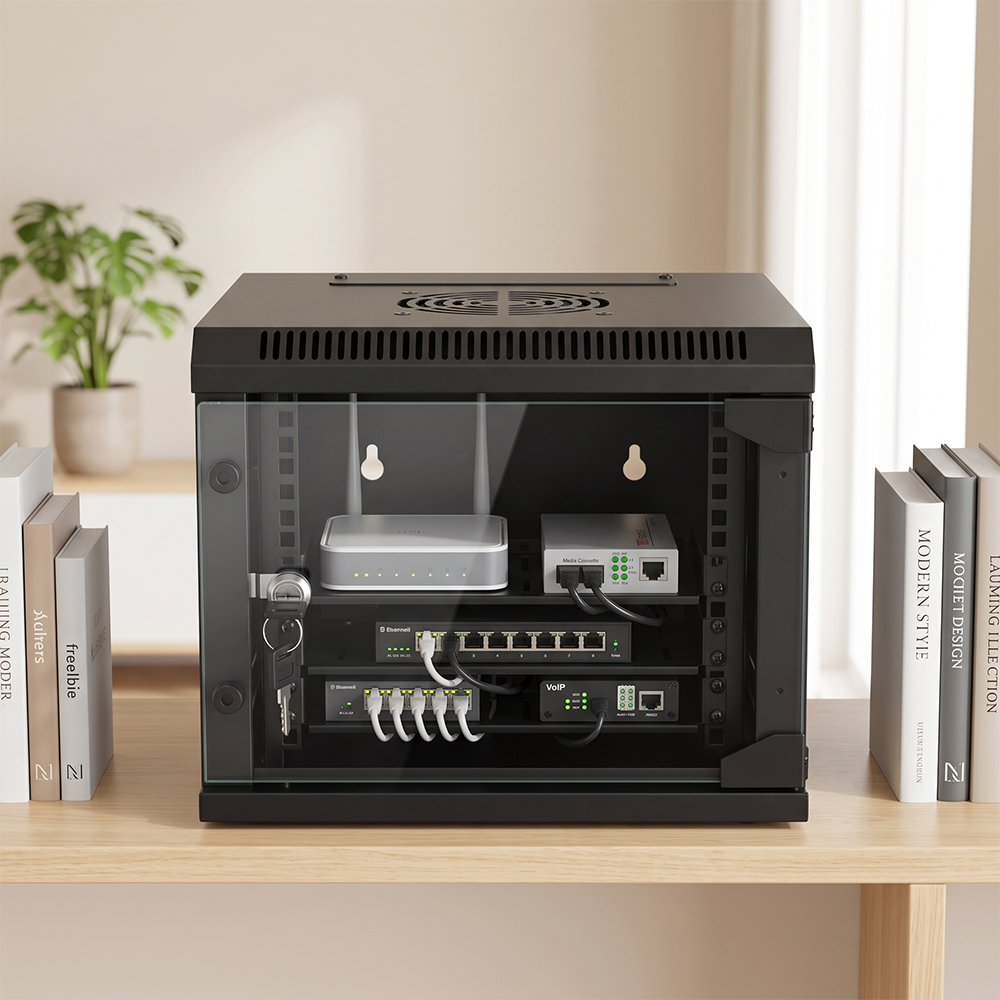

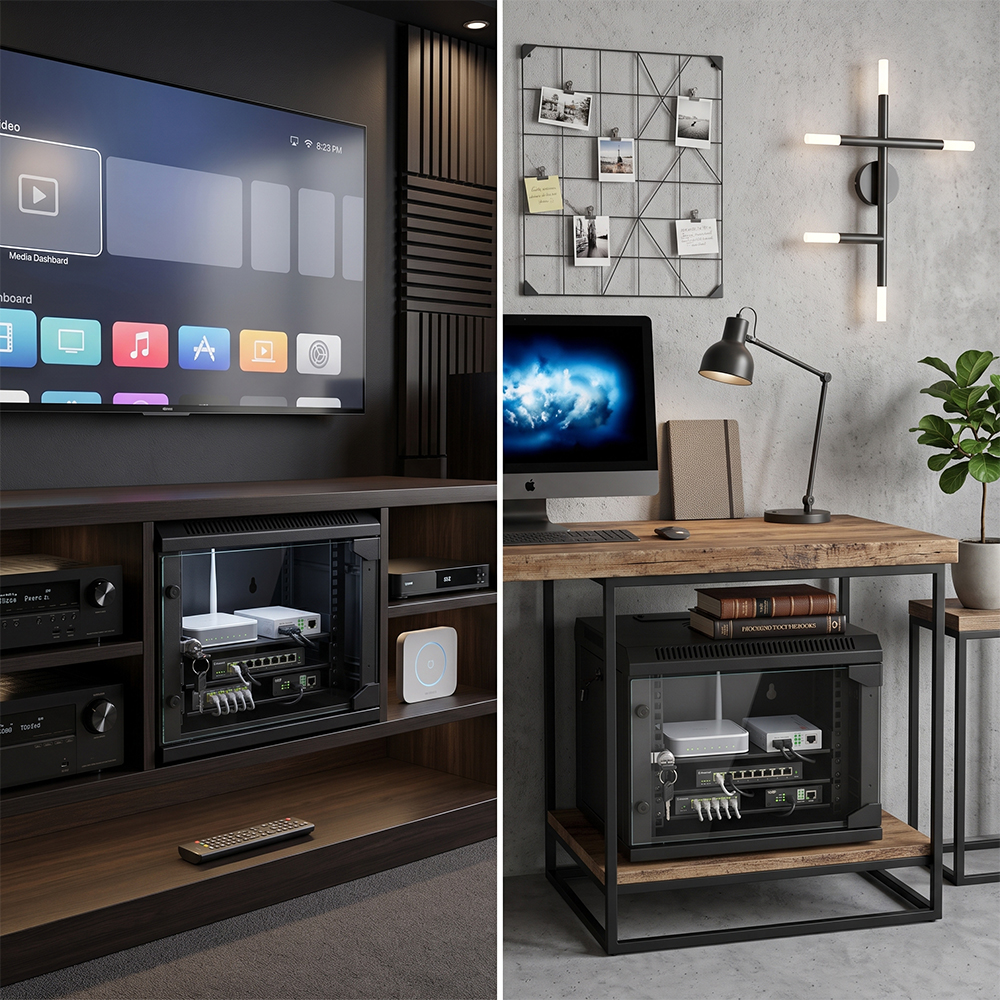

SOHO & Home Automation: Organizing smart home hubs, modems, compact PoE switches, and media servers.
Small Business & Retail: POS system backbones, network termination points, and edge routing.
Security & CCTV Systems: Housing 4/8-channel mini NVRs, network power supplies, and patch panels.
Space-Constrained Telecommunications: Audio-visual closets, utility rooms, and modular network extensions.
Frequently Asked Questions (FAQ)
Q: Will standard 19-inch rackmount equipment fit in this cabinet?
A: No, this cabinet is engineered specifically for 10-inch form-factor accessories (such as 10" patch panels, PDU strips, and shelves), making it roughly half the width of standard commercial server racks to fit tight spaces.
Q: Can the front glass door hinge on either side?
A: Yes, the hinge design is fully reversible, allowing you to configure the door to open to the left or right depending on your wall installation layout.
Q: Is assembly required?
A: The unit is delivered fully assembled and ready for quick mounting using the 4 rear teardrop slots and hardware.
